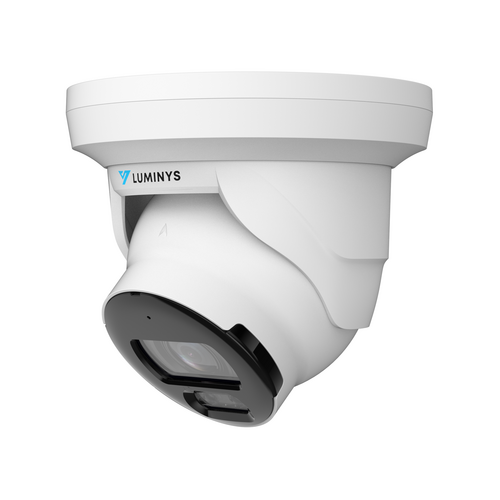

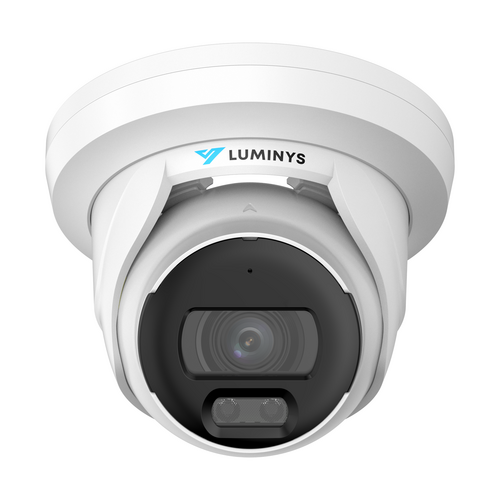

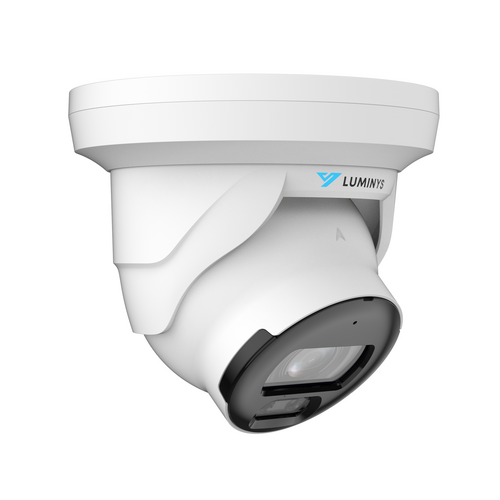

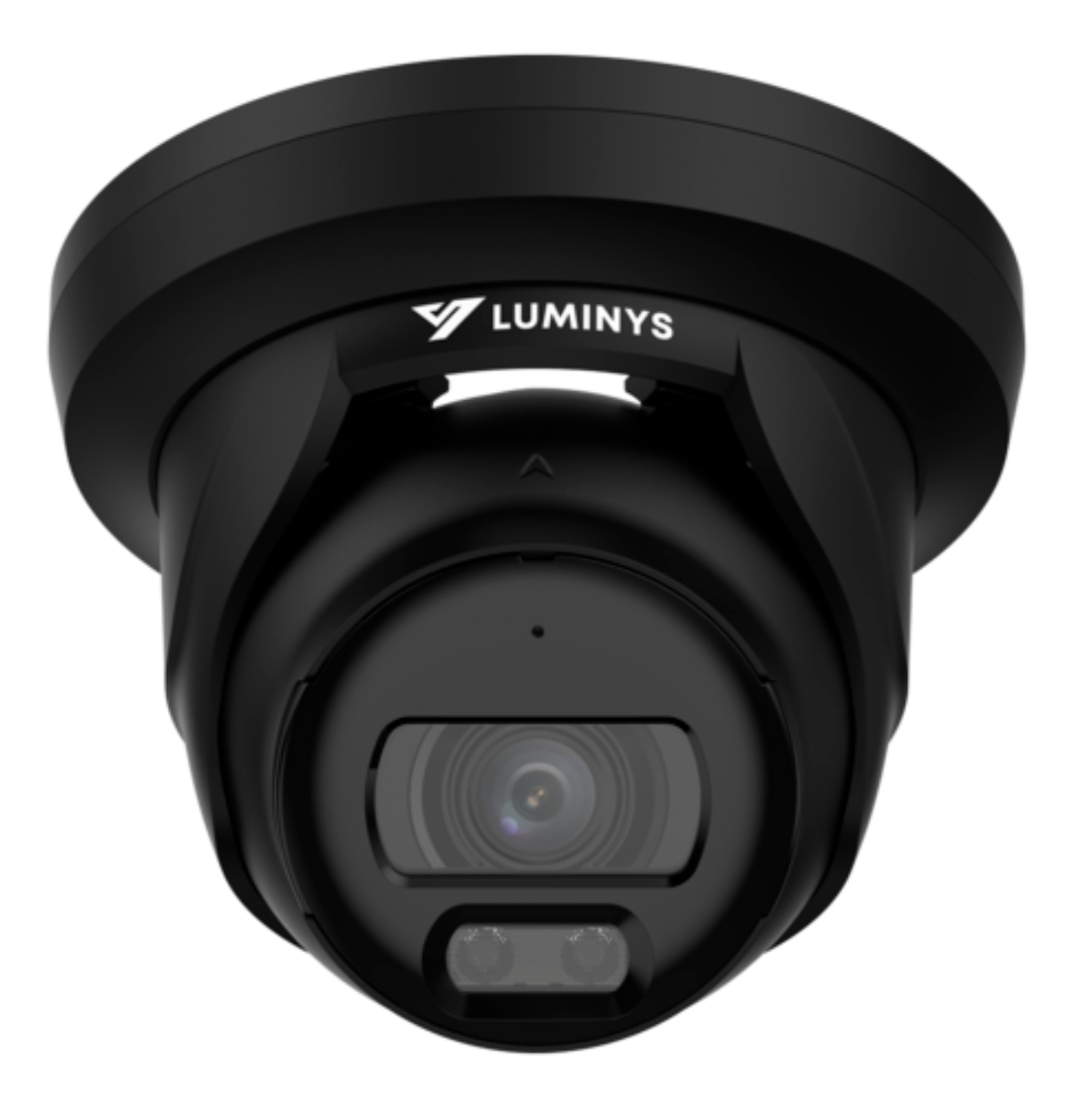

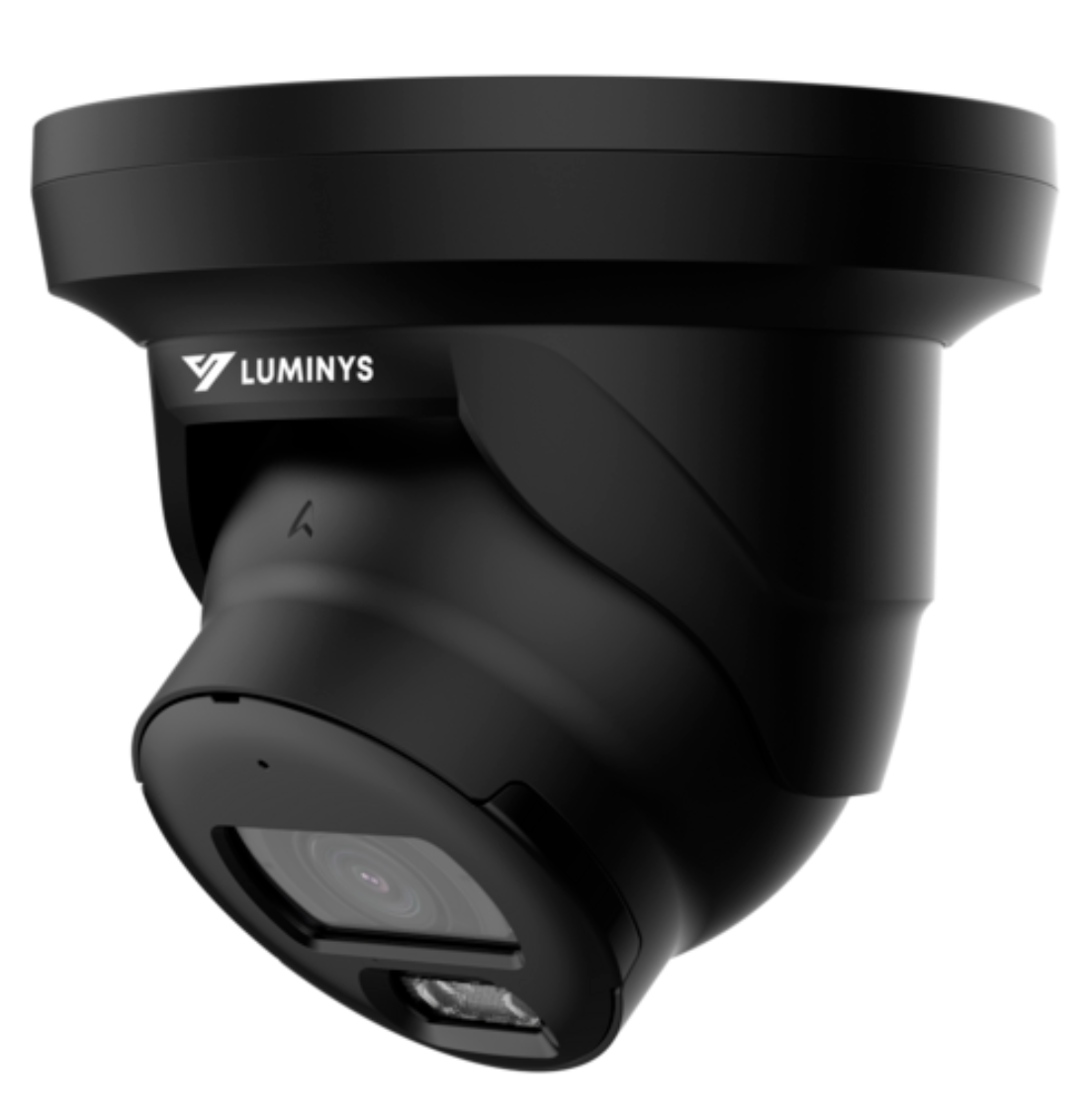

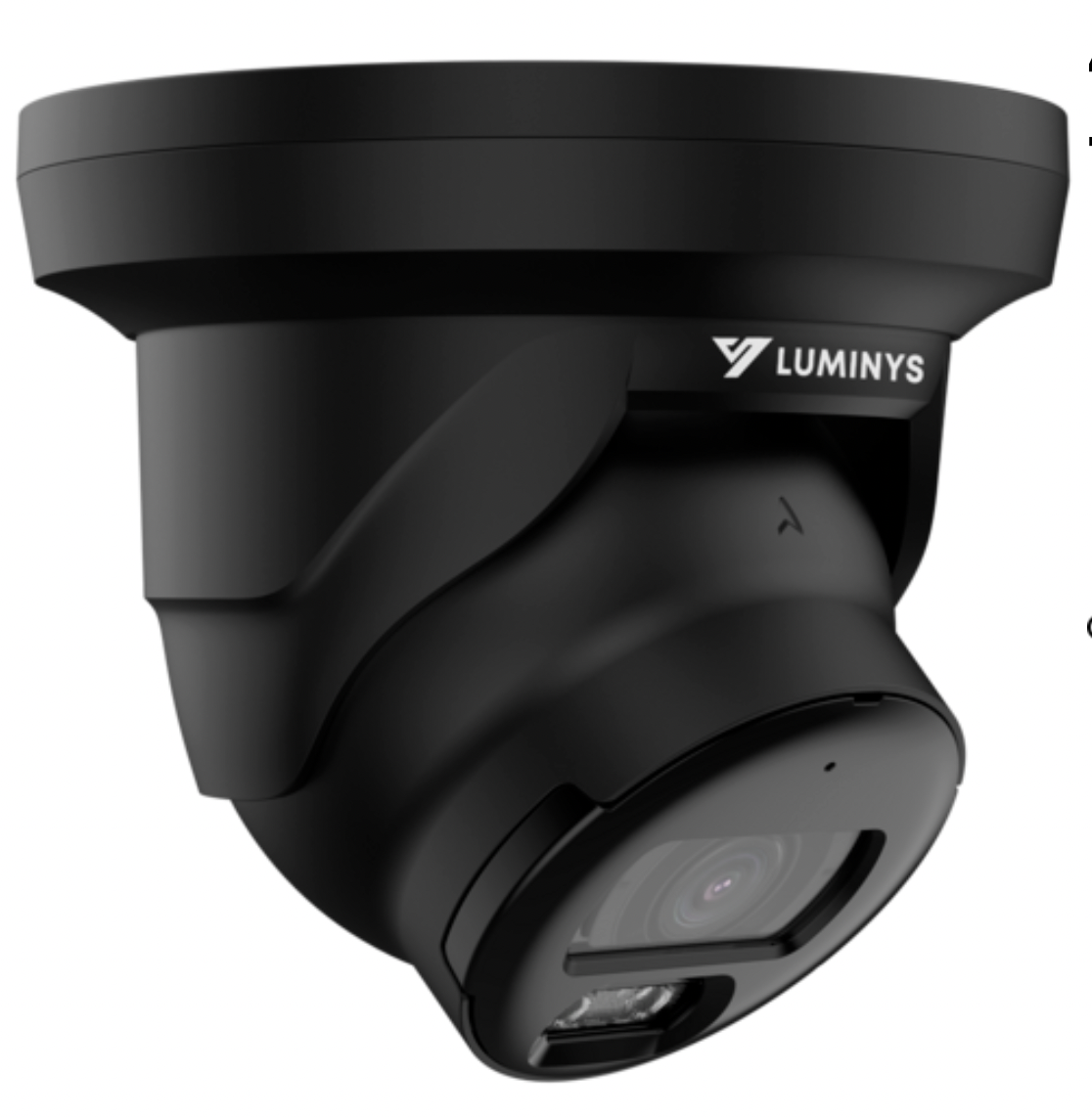

Luminys - N3T-4LA2B - N3-L Starter Series 4MP LumiLuxSmart IP Mini Size Turret 2.8 mm
Part number:
Price:
• 4MP Turret Housing
• 2.8 mm Lens
• Dual Illumination — IR and White-Light LEDs
• Video Content Analytics: Line Crossing, Intrusion
• iMD
• NDAA Compliant
• FCC
• IC
• ONVIF
| Camera | |
| Series / Model | Luminys N3 Series (Mainstream) |
| Maximum Resolution | 4MP (2688 × 1520) |
| Image Sensor | 1/2.9-in. 4MP Progressive CMOS |
| Lens & Vision | |
| Lens Type & Focal Length | Fixed, 2.8mm (F1.6) |
| Field of View (Diagonal) | 114° |
| DORI Distance | Detect: 63.4 m (208.0 ft) Observe: 25.1 m (82.4 ft) Recognize: 12.4 m (40.7 ft) Identify: 6.2 m (20.3 ft) |
| Minimum Illumination (Color) | 0.005 Lux at F1.6 (B/W: 0.0005 Lux) |
| Illuminators & Range | One IR LED & One White-Light LED, up to 30.5 m (100 ft) each |
| Day/Night & WDR | Automatic (ICR), Wide Dynamic Range (120 dB) |
| Video & Performance | |
| Maximum Frame Rate | 20 fps @ 2688 x 1520 |
| Video Compression | H.265+/H.265, H.264+/H.264, MJPEG |
| Key Video Features | 3D Noise Reduction, Mirror Rotation, ROI (4 zones), Privacy Masking (4 zones) |
| Analytics & Intelligence | |
| Video Content Analytics | Line Crossing, Intrusion Detection |
| Intelligent Motion Detection | Supported with Alarms for Vehicles and Humans |
| Audio & Alarms | |
| Audio | Built-in Microphone (Compression: G.711a, G.711Mu, PCM) |
| Event Triggers | Line Crossing, Intrusion, Motion Detection, Audio Detection, Video Tampering, etc. |
| Network & Storage | |
| Connection | RJ-45 (10/100 Base-T), PoE (802.3af) or 12 VDC |
| Protocols & Interoperability | ONVIF (Profile S/G/T), IPv4/IPv6, RTSP, HTTP/S, etc. |
| Storage Options | Micro SD Card (Max. 256 GB), FTP, SFTP |
| Client Software | LumiViewer, LumiViewer Mobile App |
| Physical & Environmental | |
| Power Consumption | Normal: 2.4 W (12VDC) / 3.0 W (PoE) Max: 6.6 W (12VDC) / 7.9 W (PoE) |
| Dimensions & Weight | φ122.0 mm × 111.8 mm (4.8" × 4.4"), Net Weight: 0.5 kg (1.2 lb) |
| Installation Angle | Pan: 0-360°, Tilt: 0-78° |
| Operating Temperature | -40 to 60 °C (-40 to 140 °F) |
| Protection Rating | IP67 |
| Material | Metal |
| Compliance | |
| Certifications | FCC, IC |
| NDAA | Compliant |
Name
Description
Size
Downloads
File
Luminys - N3T-4LA2B - Datasheet.pdf
0.2mb
The N3T-4LA2B is part of the N3 Mainstream series from Luminys. Devices in the N3 series are designed with a curated selection of technologies and features to provide high-quality security without any unnecessary or complicated add-ons. This camera provides clear images and video with a maximum resolution of 4MP, and is equipped with intelligent motion detection (iMD), which provides vital alerts for proactive security. Thanks to its smart design, this camera is an ideal choice for small- to mid-sized applications.
