Luminys - N3T-5KA2 - N3-K Series 5MP LumiLuxLite IP Turret 2.8 mm
Part number:
Price:
• Resolution: 5 Megapixels for ultra-clear images ensuring detailed surveillance.
• Lens: 2.8mm lens provides a wide field of view, effectively covering large areas with minimal blind spots.
• Network Connectivity: Seamless integration with existing IP networks for easy installation and management.
• Durability: Built to withstand harsh weather conditions, perfect for both indoor and outdoor usage.
• Remote Access: View live footage from anywhere via mobile app or web browser, enhancing security monitoring capabilities.
| Manufacturer | Luminys |
| NDAA Compliance | Compliant |
| Camera Signal | Network IP |
| Connection Type | Wired |
| Resolution | 5 Megapixel |
| Lens Type / Size | Fixed, 2.8mm |
| Mount Type | Ceiling, Wall |
| Dimensions (Diameter x Height) | φ 111.0 mm × 100.8 mm (φ 4.4 in. × 4.0 in.) |
| Image Device | 1/2.7-in. 5MP Progressive CMOS |
| Infrared Distance | 30m / 98.4ft |
| Angle of View | H: 108.3°, V: 59.9°, D: 126.8° |
| Minimum Scene Illumination | Color: 0.01 Lux at F1.6 (AGC On) Black/White: 0 Lux With IR Light On |
| Electronic Shutter | Automatic, Manual 1/5 s to 1/20,000 s |
| Key Video Features | Audio, Auto Gain Control, Back Light Compensation, Day/Night, Mirror, Privacy Masking, Wide Dynamic Range |
| Smart Detection | Motion Detection Tracking (Alarms for Vehicles and Humans) |
| Compression Method | H.264, H.265 |
| Protocols | ONVIF, HTTP, TCP/IP, IPv4, DHCP, NTP |
| Power Requirements | 12vDC, PoE |
| Power Consumption | Normal (IR Off): 2.0 W Maximum (White-Light On): 8.5 W |
| Environmental Rating | IP66 (Weather Resistant) |
| Operating Temperature | -30 °C to 60 °C (-22 °F to 140 °F) |
| Operating Humidity | < 90% RH |
| S/N Ratio | > 38 dB |

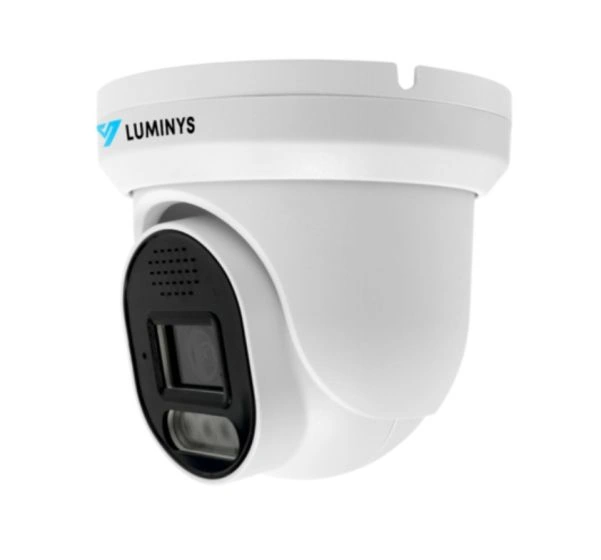

The N3T-5KA2-Kit-only from Luminys is a 5 megapixel network IP lumiluxlite turret camera with 2.8mm Lens. This model is designed for use with Luminys R3 Series NVRs and Kits (K54-4L1A2, K56-8L1A2, K5T-16L2A4).
