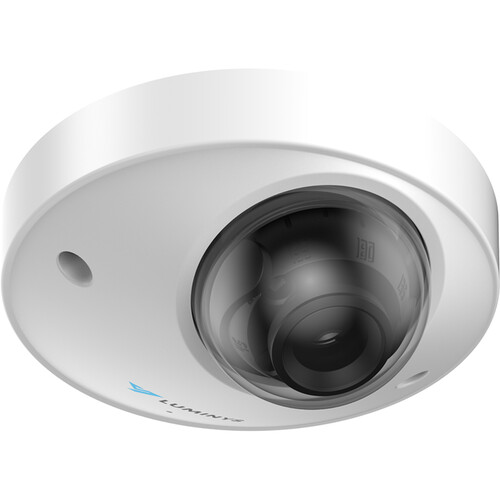

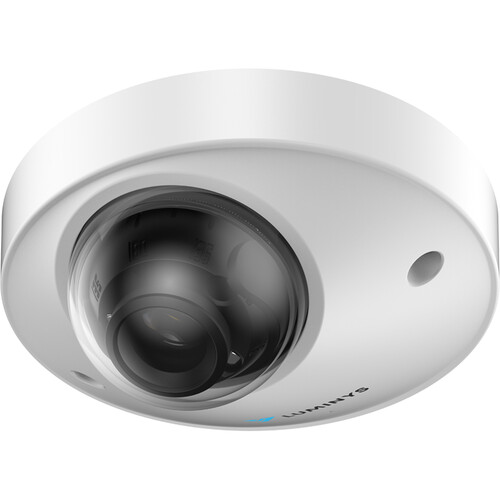

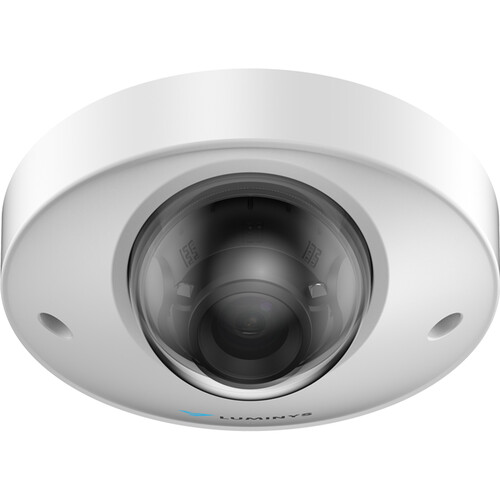

Luminys - N3W-4LA2 - N3-L Starter Series 4MP LumiLuxSmart IP Wedge Dome 2.8 mm, IR, White-light LEDs, and Dual-mode
The N3W-4LA2 is part of Luminys’s Starter series. Starter series devices are designed with a curated selection of technologies and features to provide high-quality security without unnecessary or complicated add-ons.
This camera is equipped with LumiLuxSmart technology to provide unparalleled customization and flexibility to meet the needs of today's security market. LumiLuxSmart cameras allow users to switch between three low-light modes: covert IR-only mode, nighttime white-light LED lighting, and motion-activated IR-and-LED dual illumination. The brightness and intensity of the white-light LEDs can be remotely adjusted, preventing unnecessary light pollution. With its smart design, this camera is ideal for small to mid-sized applications.
Key Features
• 4MP Wedge Housing
• 2.8 mm Fixed Lens
• LumiLuxSmart — IR and White-Light LEDs
• Video Content Analytics: Line Crossing, Intrusion
• iMD
• LumiPolarPro and LumiDesertPro
Certifications and Compliance
• NDAA Compliant
• FCC
• IC
| Camera | |
|---|---|
| Image Sensor | 1/2.9-in. 4MP Progressive CMOS |
| Maximum Resolution | 2688 × 1520 |
| Minimum Illumination | Color: 0.007 Lux at F1.6 Black/White: 0.0007 Lux at F1.6 0 Lux With IR Light On |
| Number of Illuminators | Two (2) White-Light LEDs, Two (2) IR LEDs, Supports LumiLuxSmart |
| Illuminator Control | Automatic, Manual |
| Maximum Illumination Distance | IR: Up to 30.5 m (100.0 ft) White Light: Up to 30.5 m (100.0 ft) |
| Electronic Shutter Speed | Automatic, Manual 1/3 s to 1/100,000 s |
| Installation Angle | Pan/Rotation: 0° to 355° Tilt: 0° to 80° |
| S/N Ratio | > 56 dB |
| Lens | |
| Iris Type | Fixed |
| Lens Type | Fixed |
| Focal Length | 2.8 mm |
| Maximum Aperture | F1.6 |
| Field of View | Horizontal: 95° Vertical: 52° Diagonal: 114° |
| Close Focus Range | 1.1 m (3.6 ft) |
| DORI Distance | Detect: 63.4 m (208.0 ft) Observe: 25.2 m (82.7 ft) Recognize: 12.5 m (41.0 ft) Identify: 6.3 m (20.7 ft) |
| Video | |
| Compression | Smart Encoding H.265+, H.265, Smart Encoding H.264+, H.264, MJPEG (Sub Stream Only) Standard Codec Supported |
| Stream Capability | Two (2) |
| Resolution | 4MP (2688 x 1520), 4MP (2560 x 1440), 3MP (2304 x 1296), 1080p (1920 x 1080), 1.3MP (1280 x 960), 720P (1280 x 720), D1 (704 x 480), VGA (640 x 480), CIF (352 x 240) |
| Maximum Frame Rate | Main Stream: 2688 x 1520 at 30 fps Sub Stream 1: D1 at 30 fps |
| Video Bit Rate | H.264: 32 kbps to 6,144 kbps H.265: 12 kbps to 6,144 kbps |
| Bit Rate Control | CBR/VBR |
| Day/Night | Automatic (ICR), Color, Black and White |
| Light Balancing | Wide Dynamic Range (120 dB) |
| Noise Reduction | 3D NR |
| Image Angle | 0°/90°/180°/270° (Supports 90°/270° with 4MP Resolution and Lower) |
| Mirror Rotation | Supported |
| Region of Interest | Four (4) Zones |
| Privacy Masking | Four (4) Zones |
| Analytics | |
| Video Content Analytics | Line Crossing, Intrusion |
| Intelligent Motion Detection | Supported with Alarms for Vehicles and Humans |
| Audio | |
| Compression | G.711a, G.711Mu, PCM |

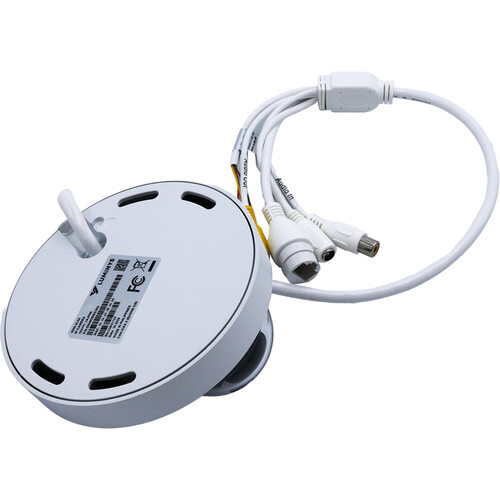

| Interface | Input: Built-In Microphone and One (1) Channel Output: One (1) Channel |
| Alarm | |
| Alarm Event (Trigger) | Line Crossing, Intrusion, Motion Detection, iMD, Audio Detection, Video Tampering, Disk Full, Disk Error, Voltage Detection, Security Exception |
| Alarm Event (Interface) | Input: One (1) Channel (Max. 5 VDC, 5 mA) Output: One (1) Channel (Max. 12 VDC, 300 mA) |
| Network | |
| Interface | RJ-45 (10/100 Base-T) IPv4, IPv6, DNS, TCP, UDP, DHCP, HTTP, HTTPS, 802.1X, RTSP, DDNS, P2P, SMTP, RTMP, UPnP, Auto Registration, ICMP, IGMP, FTP, SFTP, RTP, RTCP, ARP, NTP, Multicast, NFS |
| Interoperability | ONVIF (Profile S/G/T), CGI |
| Browser | Chrome, Firefox, Edge |
| Client | LumiViewer, LumiViewer Mobile App |
| Storage | FTP, SFTP, Micro SD Card (Max. 256 GB) |
| Electrical | |
| Power Supply | 12 VDC, PoE (802.3af) |
| Power Consumption | 12 VDC: Maximum 7.1 W, Normal 2.3 W PoE: Maximum 8.5 W, Normal 2.8 W |
| Construction | |
| Net Weight | 0.4 kg (0.8 lb) |
| Gross Weight | 0.5 kg (1.1 lb) |
| Operating Temperature | -40 to 60 °C (-40 to 140 °F) < 95% RH (Non-Condensing) |
| Storage Temperature | -40 to 60 °C (-40 to 140 °F) |
| Protection Ratings | IP67, IK10 |
| Product Dimensions | Φ108.9 mm x 55.0 mm (Φ4.3 in. x 2.2 in.) |
| Packaging Dimensions (L x W x H) | 137.0 mm x 137.0 mm x 87.0 mm (5.4 in. x 5.4 in. x 3.4 in.) |
| Material | Metal |
| Certifications and Compliance | |
| Certifications | FCC, IC |
| Compliance | NDAA |
