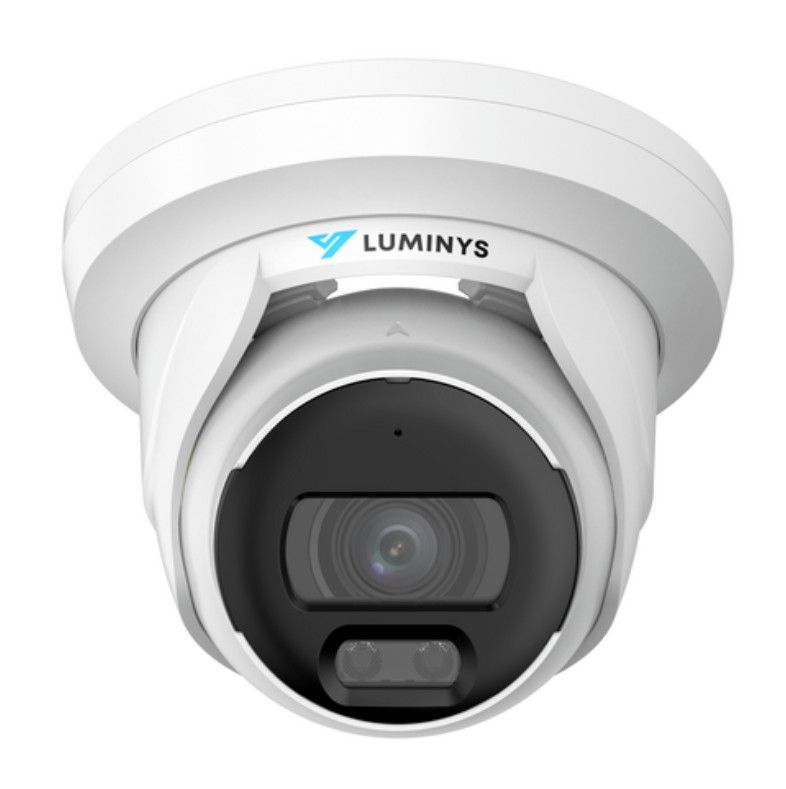

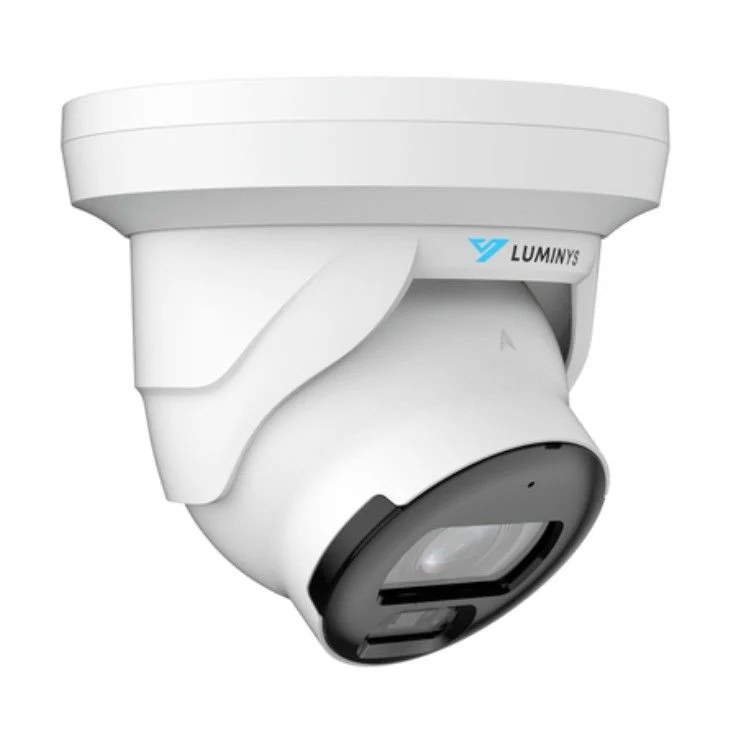

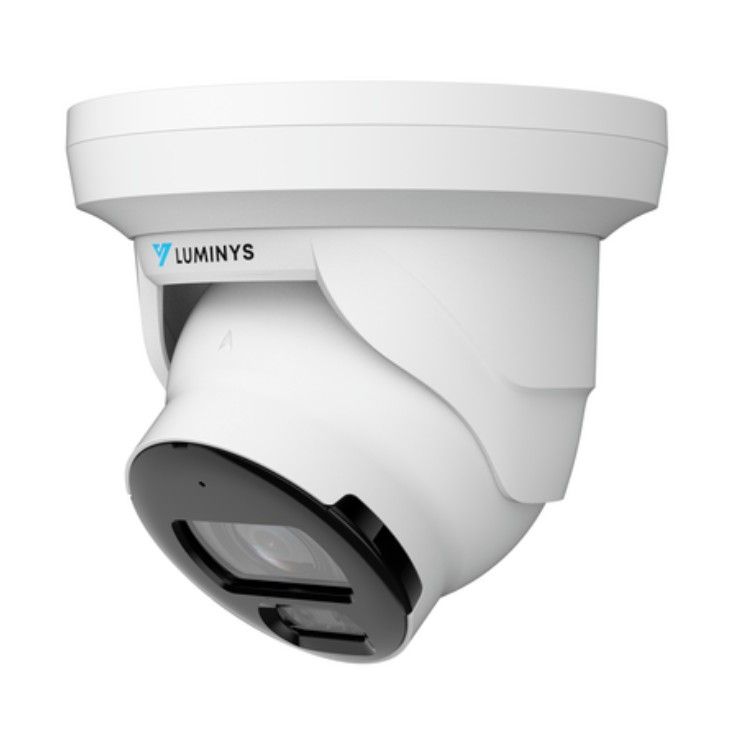

Luminys - N4T-8VA2 - N4 Mainstream Series 8MP LumiNightKing IP MIni Size Turret 2.8mm, White-light LEDs

Name: Luminys - N4T-8VA2 - N4 Mainstream Series 8MP LumiNightKing IP MIni Size Turret 2.8mm, White-light LEDs
Brand: Luminys
SKU: N4T-8VA2

Part number:

Price:

Dealers only

Add to Quote/Project Registration

Description Specifications Downloads

• High Resolution: 8 Megapixels ensure crystal-clear video quality, allowing you to capture even the smallest details in your surveillance footage.
• Low Light Performance: LumiNightKing technology enhances visibility in low-light conditions, making it suitable for 24/7 monitoring without compromising image quality.
• Wide-Angle Lens: The 2.8mm lens provides a broad field of view, reducing the number of cameras needed for comprehensive coverage.
• Smart Detection: Equipped with intelligent motion detection features, this camera minimizes false alarms, ensuring reliability when it matters most.
• Weather Resistant: Built to withstand harsh weather conditions, making it suitable for both indoor and outdoor installations.

Camera
Series	Luminys Series N4 Series (Mainstream)
Image Sensor	1/1.8-in. 4MP Progressive CMOS
Maximum Resolution	2688 x 1520
Minimum Illumination	Color: 0.0006 lux at F1.0
Number of Illuminators	White Light: Two (2)
Illuminator Control	Automatic, Manual
Maximum Illumination Distance	100.0 ft (30.48 m)
Electronic Shutter Speed	Automatic, Manual 1/3 s to 1/100,000 s
Installation Angle	Pan: 0° to 360° Tilt: 0° to 78° Rotation: 0° to 360°
S/N Ratio	> 50 dB
Lens
Iris Type	Fixed
Lens Type	Fixed
Focal Length	2.8 mm
Maximum Aperture	F1.0
Field of View	Horizontal: 112° Vertical: 60° Diagonal: 134°
Close Focus Range	2.0 m (6.6 ft)
DORI Distance	Detect: 46.9 m (153.9 ft) Observe: 17.9 m (58.7 ft) Recognize: 9.3 m (30.5 ft) Identify: 4.5 m (14.8 ft)
Video
Compression	Smart Encoding H.265+, H.265, Smart Encoding H.264+, H.264, MJPEG (Sub Stream Only)
Stream Capability	Two (2) Streams
Resolution	4MP (2688 x 1520), 4MP (2560 x 1440), 3MP (2304 x 1296), 1080p (1920 x 1080), 1.3MP (1280 x 960), 720P (1280 x 720), D1 (704 x 480), VGA (640 x 480), CIF (352 x 240)
Maximum Frame Rate	Main Stream: 4MP at 30 fps Sub Stream 1: D1 at 30 fps
Video Bit Rate	H.264: 3 to 6144 kbps H.265: 3 to 6144 kbps
Bit Rate Control	CBR/VBR
Day/Night	Automatic (ICR), Color, Black and White
Light Balancing	Wide Dynamic Range (120 dB)
Noise Reduction	3D NR
Image Angle	0°/90°/180°/270° (Supports 90°/270° with 4MP Resolution and Lower)
Mirror Image	Supported
Region of Interest (ROI)	Four (4) Zones
Privacy Masking	Four (4) Zones
Analytics
Video Content Analytics	Line Crossing, Intrusion
Intelligent Motion Detection	Supported With Alarms for Vehicles and People
Audio
Compression	PCM, G.711a, G.711Mu
Sampling Rates	PCM: 8,000 Hz, 16,000 Hz, 32,000 Hz G.711A: 8,000 Hz G.711Mu: 8,000 Hz
Interface	Input: Built-In Microphone
Alarm Event
Event Types	Line Crossing, Intrusion, Motion Detection, iMD, Audio Detection, Video Tampering, Disk Full, Disk Error, Offline, IP Conflict, Voltage Detection, Security Warning
Network
Interface	RJ-45 (10/100 Base-T)
Protocol	IPv4, IPv6, DNS, TCP, UDP, DHCP, HTTP, HTTPS, 802.1X, RTSP, DDNS, P2P, SMTP, RTMP, PPPoE, UPnP, SNMP, Bonjour, QoS, Auto Registration, ICMP, IGMP, FTP, SFTP, RTP, RTCP, ARP, NTP, Multicast, NFS
Interoperability	ONVIF (Profile S/G/T), CGI
Browser	Chrome, Firefox, Edge
Client	LumiViewer, LumiViewer Mobile App
Storage	FTP, SFTP, NAS, Micro SD Card (Max. 256 GB)
Electrical
Power Supply	12 VDC/PoE (802.3af)
Power Consumption	12 VDC: Maximum: 5.3 W, Normal: 2.0 W PoE: Maximum: 6.4 W, Normal: 2.5 W
Construction
Net Weight	0.5 kg (1.2 lb)
Gross Weight	0.7 kg (1.6 lb)
Operating Temperature	-40 to 60 °C (-40 to 140 °F)
Humidity	< 95% RH (Non-Condensing)
Storage Temperature	-40 to 60 °C (-40 to 140 °F)
Protection Ratings	IP67
Dimensions	Φ122.0 mm x 111.8 mm (Φ4.8 in. x 4.4 in.)
Material	Metal
Certifications and Compliance
Certifications	FCC, IC
Compliance	NDAA
