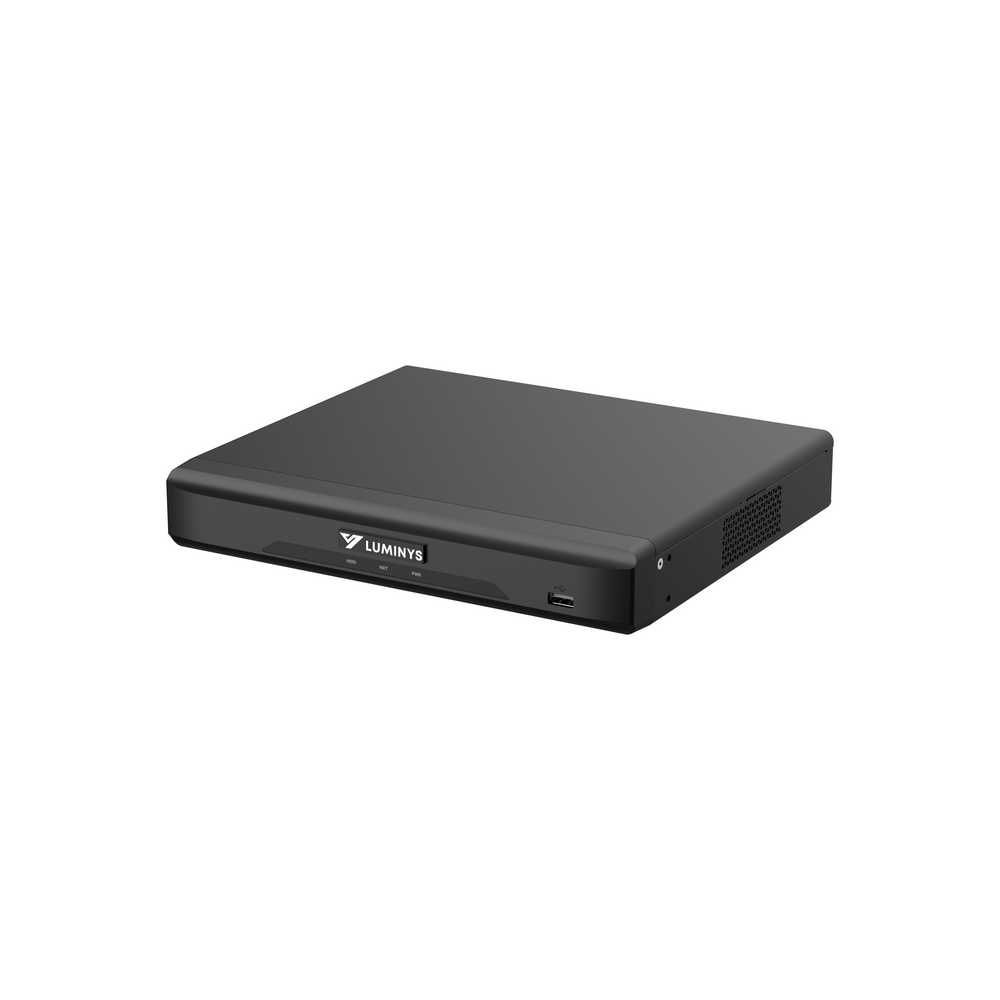

Luminys - R31-4PA2 - R3 Series NVR, 8MP 4 Channel Mini 1U 4-Port PoE, 1SATA, Analytics by Camera, 2TB

Part number:
R31-4PA2
Price:

The R31-4PA is part of Luminys’s R3 entry-level series of devices. R3 series devices are designed with a curated selection of technologies and features to provide high-quality security without unnecessary or complicated add-ons.



Key Technologies

LumiViewer R3 series NVRs are compatible with the LumiViewer platform. LumiViewer streamlines security management by providing real-time surveillance, playback of historical footage, and instant alarm notifications. With features like device sharing, an alarm hub for safety alerts, visual intercom for video calls and door control, and remote access management, LumiViewer ensures comprehensive and efficient monitoring. The platform is available for desktop and mobile devices.



License Plate Recognition (LPR) Technology R3 series NVRs support LPR technology by camera. LPR technology improves safety and operational efficiency by automatically capturing and reading vehicle license plates for easy and accurate identification.



Features:

  • 4K NVR
  • 4 Channels with One (1) SATA Port
  • HDMI and VGA Output
  • PoE Plug-and-Play
  • Supports Analytics by Camera



Certifications and Compliance

  • NDAA Compliant
  • FCC
Specifications
Video
Video Input 4 Channels
Recording Resolutions8MP, 6MP, 5MP, 4MP, 3MP, 1080p, 720p, D1, VGA, CIF
Output ResolutionsHDMI: 4K (3840 × 2160), 1920 × 1080, 1280 x 1024, 1280 x 720 VGA: 1920 × 1080, 1280 x 1024, 1280 x 720
Live View/Playback Resolutions8MP, 6MP, 5MP, 4MP, 3MP, 1080p, 720p, D1, VGA, CIF
Decoding
FormatH.265, H.264, H.264H, H.264B, MJPEG
Decoding Capability

2CH: 8MP at 30 fps

4CH: 1080p at 30 fps

Synchronous Playback1, 4 Views
Supported Analytics by CameraIntelligent Motion Detection 4CH Video Content Analytics (VCA) 4CH Face Detection 4CH License Plate Recognition 4CH
Smart SearchSearch by target classification, pictures by channel, time and event type

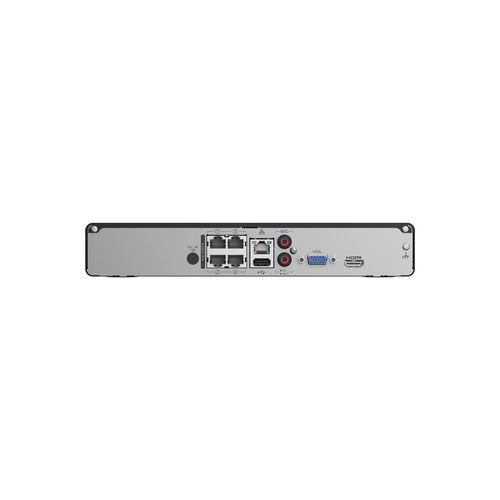

Interface
SATAOne (1) Port
HDDUp to 10TB per HDD
NetworkOne (1) RJ-45 Self-Adaptive Ethernet (10/100/1000 Mbps)
PoEFour (4) RJ-45 Self-Adaptive Ethernet (10/100 Mbps)
USBFront Panel: 1 x USB 2.0 Rear Panel: 1 x USB 2.0
AudioInput: 1-Channel RCA Input Output: 1-Channel RCA Output
Network
BandwidthIncoming: 80 Mbps Outgoing: 60 Mbps
ProtocolHTTP, HTTPS, TCP/IP, IPv4, IPv6, UPnP, SNMP, RTSP, UDP, SMTP, NTP, DHCP, DNS, DDNS
InteroperabilityONVIF, RTSP
PoE StandardIEEE 802.3 af/at
ClientLumiViewer, LumiViewer Mobile App
Electrical
Power Supply48 V/53 VDC, 1.25 A/1.13 A
Electrical Power Consumption< 10 W (HDD Not Included) PoE: 36 W (Max. Output for Single Port: 25.5 W)
Construction
Weight1.9 kg (4.1 lb) Without HDD
Operating Temperature–10 °C to 55 °C (10 °F to 131 °F) 10% to 93%
Dimensions (W × L × H)260.0 mm × 233.2 mm × 43.7 mm (10.2 in. × 9.2 in. × 1.8 in.)
Certifications and Compliance
CertificationsFCC
ComplianceNDAA
