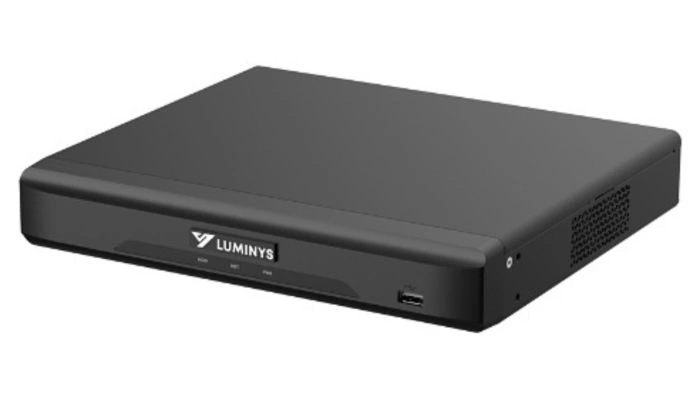

Luminys - R31-4PA6 - R3 Series NVR, 8MP 4 Channel Mini 1U 4-Port PoE, 1SATA, Analytics by Camera, 6TB
Part number:
Price:
• 4 Channel Recording: Supports up to 4 IP cameras, allowing a comprehensive surveillance setup for larger areas.
• 4K Resolution: Provides ultra-high-definition video quality, ensuring every detail is captured clearly for enhanced security.
• Plug & Play Ports: Simplifies installation process, enabling quick connection and setup of IP cameras without extensive configuration.
• 6TB Storage Capacity: Offers ample storage for long-term video recording, allowing you to keep important footage without frequent overwriting.
• Remote Access: Access your camera feeds anytime, anywhere, via a smartphone or tablet app, ensuring that you're always connected.
| Video | |
|---|---|
| Video Input | 4 Channels |
| Recording Resolutions | 8MP, 6MP, 5MP, 4MP, 3MP, 1080p, 720p, D1, VGA, CIF |
| Output Resolutions | HDMI: 4K (3840 × 2160), 1920 × 1080, 1280 x 1024, 1280 x 720 VGA: 1920 × 1080, 1280 x 1024, 1280 x 720 |
| Live View/Playback Resolutions | 8MP, 6MP, 5MP, 4MP, 3MP, 1080p, 720p, D1, VGA, CIF |
| Decoding Format | H.265, H.264, H.264H, H.264B, MJPEG |
| Decoding Capability | 2CH: 8MP at 30 fps 4CH: 1080p at 30 fps |
| Synchronous Playback | 1, 4 Views |
| Supported Analytics by Camera | Intelligent Motion Detection 4CH Video Content Analytics (VCA) 4CH Face Detection 4CH License Plate Recognition 4CH |
| Smart Search | Search by target classification, pictures by channel, time and event type |

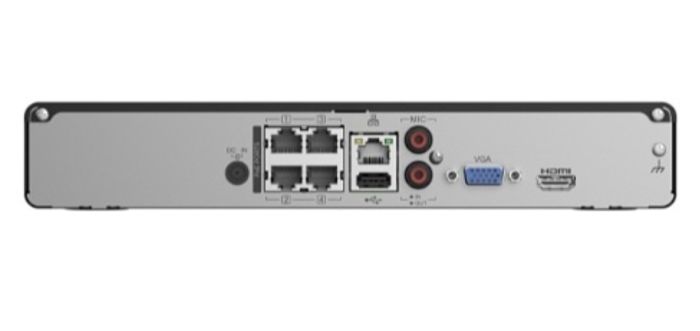

| Interface | |
| SATA | One (1) Port |
| HDD | Up to 10TB per HDD |
| Network | One (1) RJ-45 Self-Adaptive Ethernet (10/100/1000 Mbps) |
| PoE | Four (4) RJ-45 Self-Adaptive Ethernet (10/100 Mbps) |
| USB | Front Panel: 1 x USB 2.0 Rear Panel: 1 x USB 2.0 |
| Audio | Input: 1-Channel RCA Input Output: 1-Channel RCA Output |
| Network | |
| Bandwidth | Incoming: 80 Mbps Outgoing: 60 Mbps |
| Protocol | HTTP, HTTPS, TCP/IP, IPv4, IPv6, UPnP, SNMP, RTSP, UDP, SMTP, NTP, DHCP, DNS, DDNS |
| Interoperability | ONVIF, RTSP |
| PoE Standard | IEEE 802.3 af/at |
| Client | LumiViewer, LumiViewer Mobile App |
| Electrical | |
| Power Supply | 48 V/53 VDC, 1.25 A/1.13 A |
| Power Consumption | < 10 W (HDD Not Included) PoE: 36 W (Max. Output for Single Port:25.5 W) |
| Construction | |
| Weight | 1.9 kg (4.1 lb) Without HDD |
| Operating Temperature | –10 °C to 55 °C (10 °F to 131 °F) |
| Humidity | 10% to 93% |
| Dimensions (W × L × H) | 260.0 mm × 233.2 mm × 43.7 mm (10.2 in. × 9.2 in. × 1.8 in.) |
| Certifications and Compliance | |
| Certifications | FCC |
| Compliance | NDAA |
