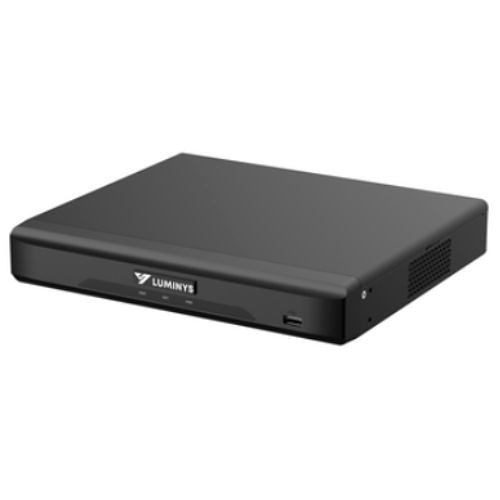

Luminys - R31-8PA2 - R3 Starter Series NVR,8MP 8 Channel Mini 1U 8-Port PoE, 1SATA, Analytics by Camera, 2TB

Part number:
R31-8PA2
Price:

Product Overview

The Luminys R31-8PA2 is an 8-channel 4K Starter Series network video recorder with eight integrated PoE ports and a pre-installed 2TB hard drive. Designed for small surveillance deployments, it provides camera-side analytics support, smart search, local recording, HDMI/VGA display outputs, and LumiViewer remote management.



Key Configuration

Model: R31-8PA2 | Product type: 4K 8-channel PoE NVR | Storage: 2TB HDD | IP video inputs: 8 | PoE ports: 8 | Maximum camera resolution: 8MP | Recording bandwidth: 80 Mbps | Network bandwidth: 80 Mbps incoming / 60 Mbps outgoing | HDMI output: Up to 4K | Operating system platform: Luminys NVR with LumiViewer and LumiCloud support



Key Features

  • · Supports up to eight IP cameras with resolutions up to 8MP/4K.
  • · Includes a pre-installed 2TB hard drive for local video recording and retention.
  • · Eight integrated PoE ports provide plug-and-play camera connectivity using IEEE 802.3af/at.
  • · Supports H.265, H.264, H.264H, H.264B, and MJPEG video decoding.
  • · HDMI output supports up to 4K resolution, with additional VGA display output.
  • · Camera-side analytics support intelligent motion detection, VCA, face detection, face recognition, and video metadata.
  • · Supports face detection on up to four channels and license plate recognition on up to four channels.
  • · Smart Search supports target classification, picture search, channel, time, and event filtering.
  • · LumiCloud Lite is included, with optional LumiCloud HD Video Unity subscription upgrades.
  • · NDAA compliant and ONVIF compatible for integration with supported surveillance devices.



Technical Context

The R31-8PA2 is intended for small business, retail, office, and residential surveillance systems requiring a compact recorder with integrated PoE and local storage. Camera-side analytics reduce processing demands on the NVR while enabling intelligent search and event management through the Luminys platform.



Installation Notes

Connect compatible IP cameras directly to the eight PoE ports, install the NVR in a ventilated indoor location, and connect the HDMI or VGA output to a display. Configure recording schedules, analytics, user access, and remote connectivity through LumiViewer. The NVR measures approximately 10.2 × 9.2 × 1.8 inches and operates from 48/53VDC power.

R31-8PA2 Specifications
Product TypeR3 Starter Series NVR with 8MP, 8 channels, 8-port PoE, and analytics by camera
Hard Drive2TB pre-installed HDD
Video Inputs8 channels
Recording Resolution8MP, 6MP, 5MP, 4MP, 3MP, 1080p, 720p, D1, VGA, CIF
Maximum Camera ResolutionUp to 8MP / 4K
Recording Bandwidth80 Mbps incoming/recording; 60 Mbps outgoing
Video OutputHDMI up to 4K (3840 × 2160); VGA up to 1920 × 1080
Decoding Capability2 channels at 8MP/30fps; 8 channels at 1080p/30fps
Video CompressionH.265, H.264, H.264H, H.264B, MJPEG
Synchronous Playback1, 4, or 8 views
PoE Ports8 × RJ45 10/100 Mbps self-adaptive Ethernet ports
PoE StandardIEEE 802.3af/at
PoE Power72W total; maximum 25.5W per port
SATA1 × SATA port
Maximum HDD CapacityUp to 10TB per HDD
Supported AnalyticsIntelligent Motion Detection, Video Content Analytics, face detection, and license plate recognition
Analytics by Camera8 channels of intelligent motion detection and VCA; 4 channels of face detection and license plate recognition
Smart SearchSearch by target classification, picture, channel, time, and event type
Audio Input/Output1 × RCA audio input; 1 × RCA audio output
Network Interface1 × RJ45 10/100 Mbps self-adaptive Ethernet port
USB PortsFront: 1 × USB 2.0
Rear: 1 × USB 2.0
ProtocolsHTTP, HTTPS, TCP/IP, IPv4, IPv6, UPnP, SNMP, RTSP, UDP, SMTP, NTP, DHCP, DNS, and DDNS
InteroperabilityONVIF, RTSP
Client SoftwareLumiViewer, LumiViewer Mobile App, LumiCloud
Power Supply48V/53V DC, 2A/1.8A
Power Consumption<10W without HDD
Form FactorMini 1U
Dimensions (W × L × H)260.0 × 233.2 × 43.7 mm (10.2" × 9.2" × 1.8")
Weight2.1kg (4.6lb), without HDD
Operating Temperature-10°C to 55°C (10°F to 131°F)
Operating Humidity10–93%
CertificationsFCC
ComplianceNDAA
Included SoftwareLumiCloud Lite
