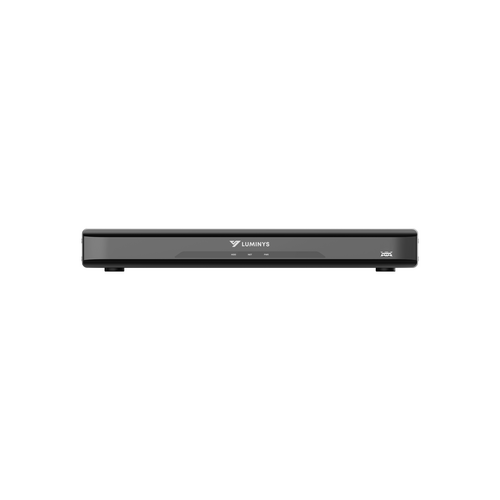

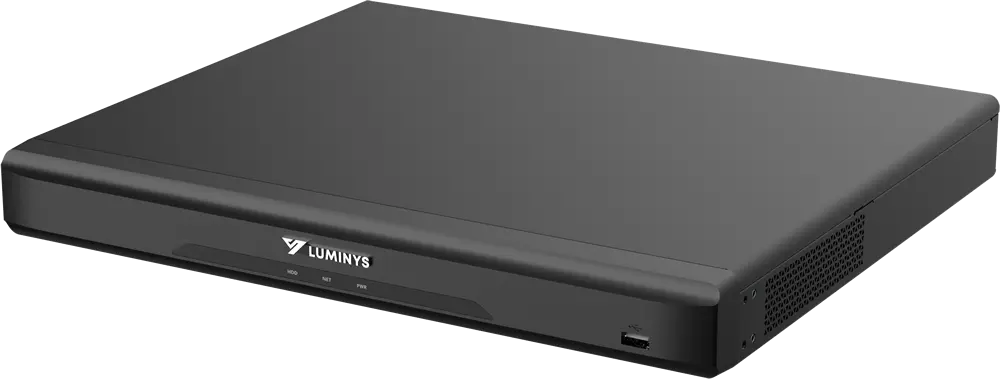

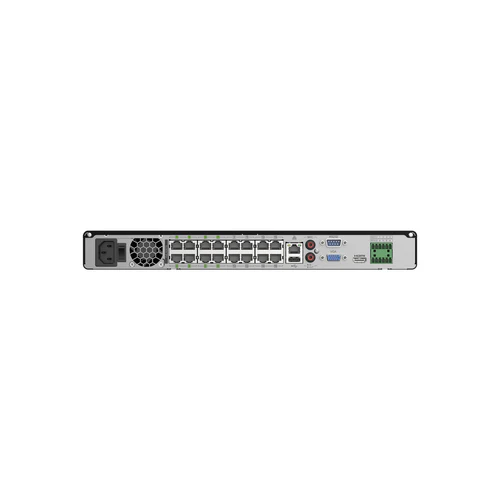

Luminys - R42-16PA4 - R4 Mainstream NVR, 16MP 16 CH 16-Port PoE, 2SATA, 4TB
• 8K NVR
• 16 Channels With Two SATA Ports
• HDMI and VGA Output
• Supports Analytics by Camera and Analytics by Recorder
• NDAA Compliant
• FCC
| Video | |
|---|---|
| Video Input | 16 Channels |
| Recording Resolutions | 16MP, 12MP, 8MP, 6MP, 5MP (3072 x 1728/2592 x 1944), 4MP (2688 x 1520/2560 x 1440), 3MP (2304 x 1296/2048 x 1536), 1080p, 720p, D1, VGA, CIF |
| Output Resolutions | HDMI: 4K (3840 × 2160), 1920 × 1080, 1280 x 1024, 1280 x 720 VGA: 1920 × 1080, 1280 x 1024, 1280 x 720 |
| Live View / Playback Resolutions | 16MP, 12MP, 8MP, 6MP, 5MP, 4MP, 3MP, 1080p, 720p, D1, VGA, CIF |
| Decoding | |
| Format | Smart Encoding H.265+, H.265, Smart Encoding H.264+, H.264, MJPEG |
| Capability (AI On) | 1CH at 16MP (30 fps) 3CH at 8MP (30 fps) 5CH at 4MP (30 fps) 8CH at 1080p (30 fps) |
| Capability (AI Off) | 2CH at 16MP (30 fps) 4CH at 8MP (30 fps) 8CH at 4MP (30 fps) 16CH at 1080p (30 fps) |
| Live View Window Division | 1, 4, 9, 16 Views |
| Auxiliary Port Window Division | 1, 4, 9, 16 Views |
| Synchronous Playback | 16 Channels |
| Supported Analytics | |
| Intelligent Motion Detection | Camera: 8CH, NVR: 4CH |
| Video Content Analytics (VCA) | Camera: 8CH, NVR: 2CH |
| License Plate Recognition | 8CH (LPR Camera Required) Two (2) Block List, Two (2) Allow List Up to 20,000 Plate Numbers |
| Face Detection | Camera: 8CH, NVR: 8CH |
| Face Recognition | Face Capture and Recognition: 1CH Face Picture Comparison Alarm From Camera: 8CH Up to 10 Face Picture Libraries (Max. 20,000 Pictures Total) |
| Interface | |
| SATA | Two (2) Ports |
| HDD | Up to 16TB per HDD |
| Network | One (1) RJ-45 Self-Adaptive Ethernet (10/100/1000 Mbps) |
| PoE | 16 x RJ-45 Self-Adaptive Ethernet (10/100 Mbps) |
| USB | Front Panel: 1 x USB 2.0 Rear Panel: 1 x USB 2.0 |
| Alarm | Input: Four (4) Channels Output: Two (2) Channels |
| Audio | Input: 1-Channel RCA Input, Two-Way Audio Supported Output: 1-Channel RCA Output |
| Network | |
| Bandwidth (AI On) | Incoming/Recording: 180 Mbps Outgoing: 180 Mbps |
| Bandwidth (AI Off) | Incoming/Recording: 256 Mbps Outgoing: 256 Mbps |
| Protocol | HTTP, HTTPS, TCP/IP, IPv4, IPv6, UPnP, SNMP, RTSP, UDP, SMTP, NTP, DHCP, DNS, DDNS |
| Interoperability | ONVIF, RTSP |
| PoE Standard | IEEE 802.3 af/at |
| Client | LumiViewer, LumiViewer Mobile App |
| Electrical | |
| Power Supply | 100-240 V, 50-60 Hz |
| Power Consumption | < 10 W (HDD Not Included) PoE: 130 W (Max. Output for Single Port: 25.5 W) |
| Construction | |
| Installation Method | Rack Mount, Desktop |
| Weight | 2.7 kg (5.9 lb) Without HDD |
| Operating Temperature | –10 °C to 55 °C (14 °F to 131 °F) 10% to 93% RH |
| Dimensions (W × L × H) | 372.0 × 325.8 × 43.7 mm (14.7 in. × 12.8 in. × 1.7 in.) |
| Certifications and Compliance | |
| Certifications | FCC |
| Compliance | NDAA |
The Luminys R42-16PA4 is a 16-channel NVR supporting up to 16MP resolution, featuring 16 built-in PoE ports, 130W total, and a Gigabit Ethernet port. It includes 2 SATA bays up to 32TB total and comes with a pre-installed 4TB HDD. Recording bandwidth reaches 256 Mbps or 180 Mbps, with 4K HDMI output and 16-channel synchronous playback. AI analytics include Intelligent Motion Detection, Video Content Analytics, License Plate Recognition, Face Detection, and Face Recognition. The NVR features 4 alarm inputs, 2 alarm outputs, two-way audio, and operates from -10°C to 55°C. It is FCC certified and NDAA compliant.
