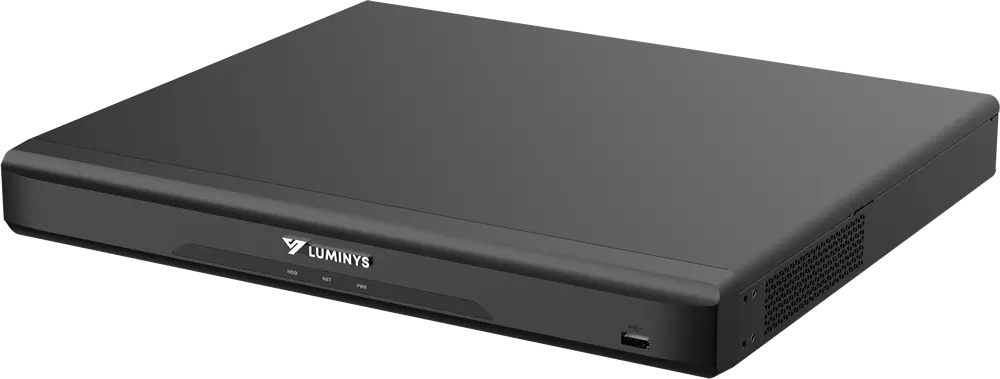

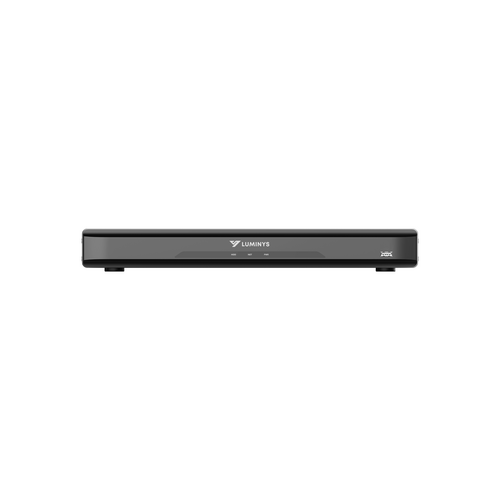

Luminys - R42-8PA2 - R4 Mainstream NVR, 16MP 8 CH 8-Port PoE, 2SATA, 2TB
Part number:
Price:
• 8K NVR
• 8 Channels With Two SATA Ports
• HDMI and VGA Output
• Supports Analytics by Camera and Analytics by Recorder
• NDAA Compliant
• FCC
| Video | |
|---|---|
| Video Input | 8 Channels |
| Recording Resolutions | 16MP, 12MP, 8MP, 6MP, 5MP (3072 x 1728/2592 x 1944), 4MP (2688 x 1520/2560 x 1440), 3MP (2304 x 1296/2048 x 1536), 1080p, 720p, D1, VGA, CIF |
| Output Resolutions | HDMI: 4K (3840 × 2160), 1920 × 1080, 1280 x 1024, 1280 x 720 VGA: 1920 × 1080, 1280 x 1024, 1280 x 720 |
| Live View / Playback Resolutions | 16MP, 12MP, 8MP, 6MP, 5MP, 4MP, 3MP, 1080p, 720p, D1, VGA, CIF |
| Decoding | |
| Format | Smart Encoding H.265+, H.265, Smart Encoding H.264+, H.264, MJPEG |
| Capability (AI On) | 1CH at 16MP (30 fps) 3CH at 8MP (30 fps) 5CH at 4MP (30 fps) 8CH at 1080p (30 fps) |
| Capability (AI Off) | 2CH at 16MP (30 fps) 4CH at 8MP (30 fps) 8CH at 4MP (30 fps) |
| Live View Window Division | 1, 4, 8, 9 Views |
| Auxiliary Port Window Division | 1, 4, 8, 9 Views |
| Synchronous Playback | 8 Channels |
| Supported Analytics | |
| Intelligent Motion Detection | Camera: 8CH, NVR: 4CH |
| Video Content Analytics (VCA) | Camera: 8CH, NVR: 2CH |
| License Plate Recognition | 8CH (LPR Camera Required) Two (2) Block List, Two (2) Allow List Up to 20,000 Plate Numbers |
| Face Detection | Camera: 8CH, NVR: 8CH |
| Face Recognition | Face Capture and Recognition: 1 CH Face Picture Comparison Alarm From Camera: 8CH Up to 10 Face Picture Libraries (Max. 20,000 Pictures Total) |

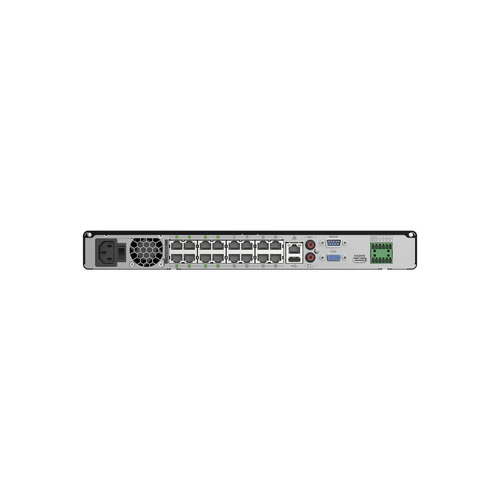

| Interface | |
| SATA | Two (2) Ports |
| HDD | Up to 16TB per HDD |
| Network | One (1) RJ-45 Self-Adaptive Ethernet (10/100/1000 Mbps) |
| PoE | Eight (8) RJ-45 Self-Adaptive Ethernet (10/100 Mbps) |
| USB | Front Panel: 1 x USB 2.0 Rear Panel: 1 x USB 2.0 |
| Alarm | Input: Four (4) Channels Output: Two (2) Channels |
| Audio | Input: 1-Channel RCA Input, Two-Way Audio Supported Output: 1-Channel RCA Output |
| Network | |
| Bandwidth (AI On) | Incoming/Recording: 180 Mbps Outgoing: 180 Mbps |
| Bandwidth (AI Off) | Incoming/Recording: 256 Mbps Outgoing: 256 Mbps |
| Protocol | HTTP, HTTPS, TCP/IP, IPv4, IPv6, UPnP, SNMP, RTSP, UDP, SMTP, NTP, DHCP, DNS, DDNS |
| Interoperability | ONVIF, RTSP |
| PoE Standard | IEEE 802.3 af/at |
| Client | LumiViewer, LumiViewer Mobile App |
| Electrical | |
| Power Supply | 100-240 V, 50-60 Hz |
| Power Consumption | < 10 W (HDD Not Included) PoE: 130 W (Max. Output for Single Port: 25.5 W) |
| Construction | |
| Installation Method | Rack Mount, Desktop |
| Weight | 2.6 kg (5.7 lb) Without HDD |
| Operating Temperature | –10 °C to 55 °C (14 °F to 131 °F) 10% to 93% RH |
| Dimensions (W × L × H) | 372.0 × 325.8 × 43.7 mm (14.7 in. × 12.8 in. × 1.7 in.) |
| Certifications and Compliance | |
| Certifications | FCC |
| Compliance | NDAA |
Name
Description
Size
Downloads
File
Datasheet
0.1mb
The Luminys R4 Mainstream NVR is an 8-channel recorder supporting up to 16MP resolution, featuring 8 built-in PoE ports, 130W total, and a Gigabit Ethernet port. It includes 2 SATA bays up to 32TB total and comes with a pre-installed 2TB HDD. Recording bandwidth reaches 256 Mbps or 180 Mbps, with 4K HDMI output. AI analytics include Intelligent Motion Detection, Video Content Analytics, License Plate Recognition, Face Detection, and Face Recognition. The NVR features 4 alarm inputs, 2 alarm outputs, two-way audio, and operates from -10°C to 55°C. It is FCC certified and NDAA compliant.
