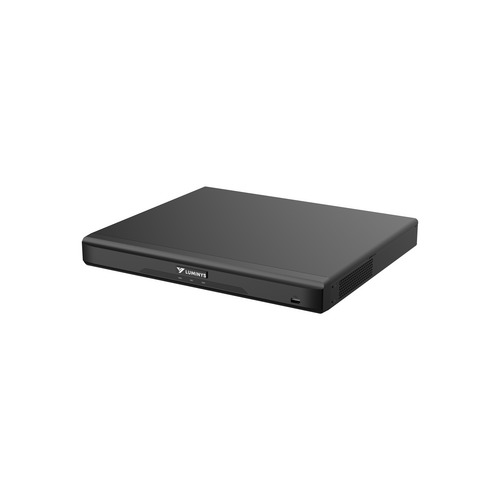

Luminys - R52-16PA4 - R5 Mainstream Series NVR, 32MP 16 Channel 1U 16-Port PoE, 2SATA, Analytics by Recorder, LumiPower, LumiSearch+ , 4TB

Part number:
R52-16PA4
Price:

The R52-16PA is part of Luminys’s R5 series. R5 series devices are designed with a suite of advanced LumiTechnologies to meet the needs of today’s evolving security market.



Key Technologies:



LumiSearch

LumiSearch lets you quickly find, track, and identify targets in security footage using a reference image. The LumiSearch algorithm analyzes human body shape, clothing color, and other characteristics to accurately pinpoint where a target has appeared in footage captured by any LumiSearch-enabled camera and NVR. All R5 series NVRs support LumiSearch and LumiSearch+.



LumiPower

LumiPower technology enables long-distance Power over Ethernet transmission, extending power and data delivery up to 3,000 feet. This simplifies installations in larger or more complex environments by eliminating the need for additional power sources or repeaters. LumiPower ensures consistent connectivity and dependable power management, ideal for expansive security infrastructures.



LumiViewer

LumiViewer is a desktop and mobile application that streamlines security management by providing real-time surveillance, playback of historical footage, and instant alarm notifications. With features like device sharing, an alarm hub for safety alerts, visual intercom for video calls and door control, and remote access management, LumiViewer ensures comprehensive and efficient monitoring



Features:

  • 8K 16-Channel NVR with 16 PoE Ports
  • 384 Mbps Recording Bandwidth
  • 2 Channels at 32MP or 4 Channels at 16MP Decoding
  • Supports Recorder-Based and Camera-Side Analytics
  • 1U Form Factor with 2 SATA, Audio, and Alarm Support
  • NDAA Compliant
  • FCC
Specifications
Video
Video Input16 Channels
Recording Resolutions

32MP, 16MP, 12MP, 8MP, 6MP, 5MP, 4MP,

3MP, 1080p, 720p, D1, VGA, CIF

Output Resolutions

HDMI: 4K (3840 × 2160), 1920 × 1080,

1280 x 1024

VGA: 1920 × 1080, 1280 x 1024

Live View/Playback Resolutions32MP, 16MP, 12MP, 8MP, 6MP, 5MP, 4MP,
 3MP, 1080p, 720p, D1, VGA, CIF
Decoding
Format

Smart Encoding H.265+, H.265, Smart

Encoding H.264+, H.264, MJPEG

Capability

AI On:

1CH at 32MP (30 fps)

2CH at 16MP (30 fps)

4CH at 8MP (30 fps)

8CH at 4MP (30 fps)

AI Off:

• 2CH at 32MP (30 fps)

• 4CH at 16MP (30 fps)

• 8CH at 8MP (30 fps)

• 16CH at 4MP (30 fps)

Live View Window Division1, 4, 8, 9, 16 Views
Auxiliary Port Window Division1, 4, 8, 9, 16 Views
Synchronous Playback16 Channels
Supported Analytics
Intelligent Motion DetectionCamera, 16CH NVR, 8CH
Video Content Analytics (VCA)Camera, 16CH NVR, 4CH 10 Rules per Channel
Face Recognition

Face Capture and Recognition: 2CH

Face Picture Comparison Alarm From Camera: 16CH Up to 20 Face Picture Libraries

(Max.20,000 Pictures Total)

LumiSearch+16CH (Must be Supported by Camera)
Video Metadata8CH (Analytics by Camera)
License Plate Recognition8CH (LPR Camera Required), Two (2) Block List, Two (2) Allow List, Up to 20,000 Plate Numbers

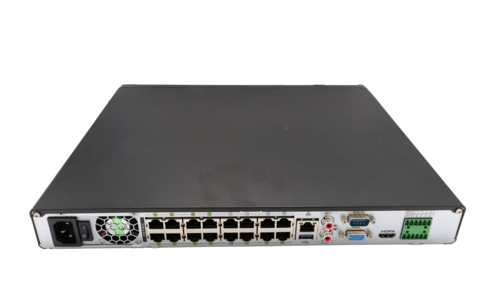

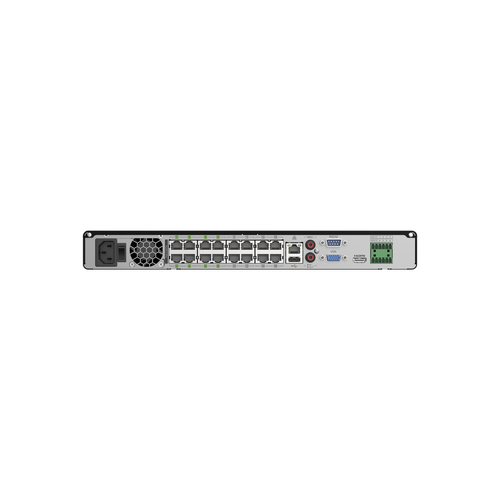

Interface
SATATwo (2) Ports
HDDUp to 16TB per HDD
NetworkOne (1) RJ-45 Self-Adaptive Ethernet (10/100/1000 Mbps)
PoESixteen (16) RJ-45 Self-Adaptive Ether-net (10/100 Mbps)
USBFront Panel - 1 x USB 2.0, Rear Panel - 1 x USB 3.0
Serial Port1 x RS-232
AlarmInput -  Four (4) Channels, Output -  Two (2) Channels
AudioInput -  1-Channel RCA Input, Output- 1-Channel RCA Output
Network
Bandwidth

AI On

Incoming: 220 Mbps

Outgoing: 220 Mbps

AI Off

Incoming: 400 Mbps

Outgoing: 400 Mbps

Protocol

HTTP, HTTPS, TCP/IP, IPv4, IPv6, UPnP,

SNMP, RTSP, UDP, SMTP, NTP, DHCP,

DNS, DDNS

InteroperabilityONVIF, RTSP
PoE StandardIEEE 802.3 af/at
ClientLumiViewer, LumiViewer Mobile App, LumiCloud
Electrical
Power Supply100-240 V, 47-63 Hz
Power Consumption

< 10 W (HDD Not Included)

PoE:  130 W (Max. Output for Single Port:

25.5 W)

Construction
Installation MethodRack- or Desktop-Mount
Weight2.6 kg (5.9 lb) Without HDD
Operating Temperature

–10 °C to 55 °C (14 °F to 131 °F)

10% to 93%

Dimensions (W × L × H)

372.0 × 325.8 × 43.7 mm

(14.7 × 12.8 × 1.7 in.)
