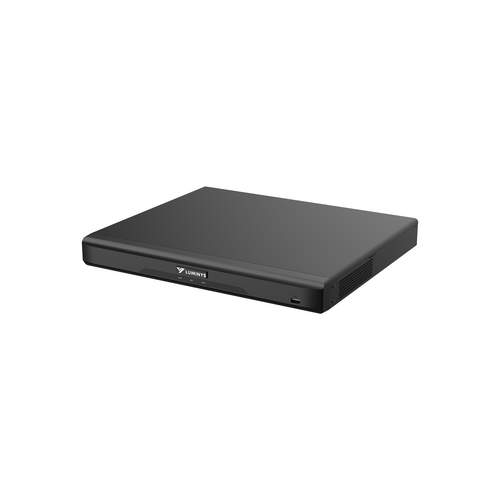

Luminys - R52-16PA8 - R5 Mainstream Series NVR, 8K 16 Channel, 16 PoE
• 8K NVR
• 16 Channels With Two SATA Ports
• 16 PoE Ports With LumiPower Support (Ports 1–8)
• HDMI/VGA Output
• Supports LumiSearch+
• iMD, Face Recognition, and VCA by Recorder
• NDAA Compliant
• FCC
| Video Input Channels | 16 Channels |
| Recording / Live View Resolutions | 32MP, 16MP, 12MP, 8MP, 6MP, 5MP, 4MP, 3MP, 1080p, 720p, D1, VGA, CIF |
| Output Resolution (HDMI/VGA) | HDMI: 4K (3840×2160), 1080p, 1280x1024 VGA: 1080p, 1280x1024 |
| Decoding Capability (AI On) | 1CH @ 32MP, 2CH @ 16MP, 4CH @ 8MP, or 12CH @ 4MP (all at 30 fps) |
| Decoding Capability (AI Off) | 2CH @ 32MP, 4CH @ 16MP, 8CH @ 8MP, or 16CH @ 4MP (all at 30 fps) |
| Supported Analytics (NVR Side) | • Intelligent Motion Detection: 8CH • Video Content Analytics (VCA): 4CH (10 rules/channel) • Face Capture/Recognition: 2CH • LumiSearch+: 16CH (camera-dependent) • License Plate Recognition: 8CH |
| Interface - SATA / HDD | Two (2) SATA ports, supports up to 16TB per HDD |

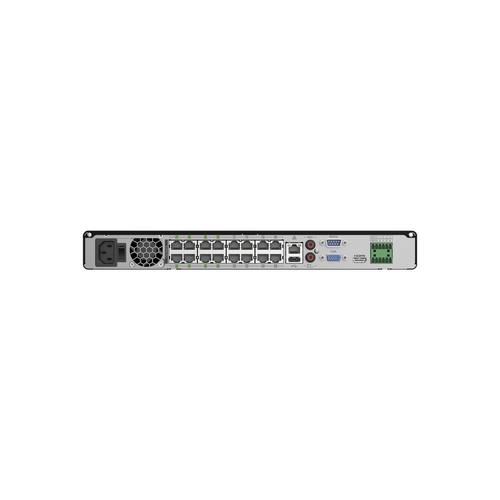

| Interface - Network & PoE | 1x Gigabit RJ-45 + 16x PoE RJ-45 (10/100 Mbps, IEEE 802.3af/at) |
| Interface - Other Ports | 2x USB (1x USB 2.0 front, 1x USB 3.0 rear), 1x RS-232, 4x Alarm In, 2x Alarm Out, 1x Audio In/Out (RCA) |
| Network Bandwidth (AI On/Off) | AI On: 220 Mbps Incoming/Outgoing AI Off: 400 Mbps Incoming/Outgoing |
| PoE Power Budget | 130 W Total (Maximum 25.5 W per port) |
| Power Supply | 100-240 V, 47-63 Hz |
| Power Consumption | < 10 W (without HDD), PoE Output: 130 W Max |
| Physical - Dimensions (W×L×H) | 372.0 × 325.8 × 43.7 mm (14.7 × 12.8 × 1.7 in.) |
| Physical - Weight | 2.6 kg (5.9 lb) without HDD |
| Operating Temperature | –10 °C to 55 °C (14 °F to 131 °F) |
| Installation | Rack- or Desktop-Mount |
| Certifications & Compliance | FCC, NDAA Compliant |
The R52-16PA is part of the R5 Mainstream series from Luminys. R5 series devices are designed with a suite of advanced LumiTechnologies to meet the needs of today’s evolving security market. LumiSearch+ technology lets you quickly find, track and identify targets in security footage using a reference image. The LumiSearch algorithm analyses human body shape, clothing colour, and other characteristics to accurately pinpoint where a target has appeared in footage captured by any LumiSearch-enabled camera and NVR. LumiSearch+ provides enhanced LumiSearch functionality, allowing users to search for targets using attribute search, filter out animals using animal search and create custom intrusion zones to monitor irregular or high-risk areas more precisely.
