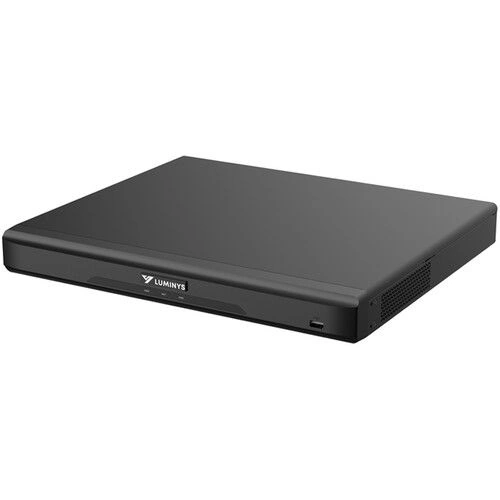

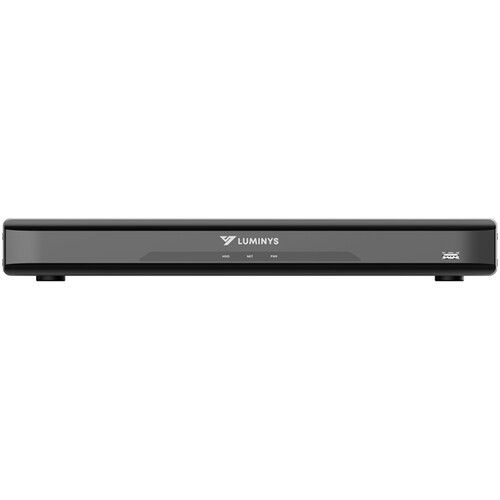

Luminys - R52-8PA8 - R5 Mainstream Series NVR, 32MP 8 Channel 1U 8-Port PoE, 2SATA, Analytics by Recorder, LumiPower, LumiSearch+, 8TB
Part number:
Price:
• 8K NVR
• 8 Channels With Two (2) SATA Ports
• 8 PoE Ports With LumiPower Support
• HDMI/VGA Output
• Supports LumiSearch+*
• iMD, Face Recognition, and VCA by Recorder
• NDAA Compliant
• FCC
| Video | |
|---|---|
| Video Input | 8 Channels |
| Recording Resolutions | 32MP, 16MP, 12MP, 8MP, 6MP, 5MP, 4MP, 3MP, 1080p, 720p, D1, VGA, CIF |
| Output Resolutions | HDMI: 4K (3840 × 2160), 1920 × 1080, 1280 x 1024 VGA: 1920 × 1080, 1280 x 1024 |
| Live View/Playback Resolutions | 32MP, 16MP, 12MP, 8MP, 6MP, 5MP, 4MP, 3MP, 1080p, 720p, D1, VGA, CIF |
| Decoding Format | Smart Encoding H.265+, H.265, Smart Encoding H.264+, H.264, MJPEG |
| Decoding Capability | AI On • 1CH at 32MP (30 fps) • 2CH at 16MP (30 fps) • 4CH at 8MP (30 fps) • 8CH at 4MP (30 fps) AI Off • 1CH at 32MP (30 fps) • 3CH at 16MP (30 fps) • 6CH at 8MP (30 fps) • 12CH at 4MP (30 fps) |
| Live View Window Division | 1, 4, 8, 9 Views |
| Auxiliary Port Window Division | 1, 4, 8, 9 Views |
| Synchronous Playback | 8 Channels |
| Supported Analytics | Intelligent Motion Detection Camera: 8CH NVR: 8CH Video Content Analytics (VCA) Camera: 8CH NVR: 4CH 10 Rules per Channel Face Recognition Face Capture and Recognition: 2CH Face Picture Comparison Alarm From Camera: 8CH Up to 20 Face Picture Libraries (Max. 20,000 Pictures Total) LumiSearch+* 8CH (Must be Supported by Camera) Video Metadata 8CH (Analytics by Camera) License Plate Recognition 8CH (LPR Camera Required) Two (2) Block List, Two (2) Allow List Up to 20,000 Plate Numbers *LumiSearch+ requires the use of a LumiSearch+-enabled camera. |

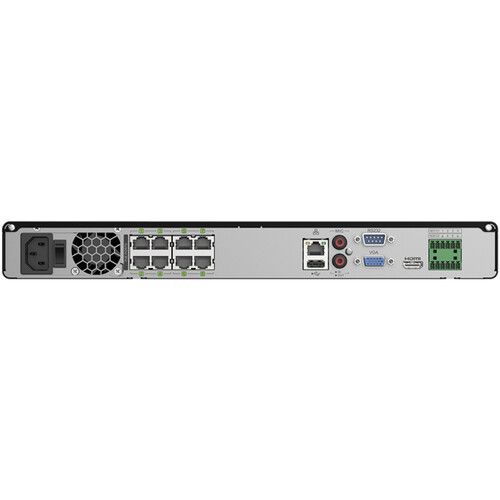

| Interface | |
| SATA | Two (2) Ports |
| HDD | Up to 16TB per HDD |
| Network | One (1) RJ-45 Self-Adaptive Ethernet (10/100/1000 Mbps) |
| PoE | Eight (8) RJ-45 Self-Adaptive Ethernet (10/100 Mbps) |
| USB | Front Panel: 1 x USB 2.0 Rear Panel: 1 x USB 3.0 |
| Serial Port | 1 x RS-232 |
| Alarm | Input: Four (4) Channels Output: Two (2) Channels |
| Audio | Input: 1-Channel RCA Input Output: 1-Channel RCA Output |
| Network | |
| Bandwidth | AI On • Incoming: 200 Mbps • Outgoing: 200 Mbps AI Off • Incoming: 256 Mbps • Outgoing: 256 Mbps |
| Protocol | HTTP, HTTPS, TCP/IP, IPv4, IPv6, UPnP, SNMP, RTSP, UDP, SMTP, NTP, DHCP, DNS, DDNS |
| Interoperability | ONVIF, RTSP |
| PoE Standard | IEEE 802.3 af/at |
| Client | LumiViewer, LumiViewer Mobile App, LumiCloud |
| Electrical | |
| Power Supply | 100-240 V, 47-63 Hz |
| Power Consumption | < 10 W (HDD Not Included) PoE: 130 W (Max. Output for Single Port: 25.5 W) |
| Construction | |
| Installation Method | Rack- or Desktop-Mount |
| Weight | 2.6 kg (5.9 lb) Without HDD |
| Operating Temperature | –10 °C to 55 °C (14 °F to 131 °F) |
| Humidity | 10% to 93% |
| Dimensions (W × L × H) | 372.0 × 325.8 × 43.7 mm (14.7 × 12.8 × 1.7 in.) |
| Certifications and Compliance | |
| Certifications | FCC |
| Compliance | NDAA |
