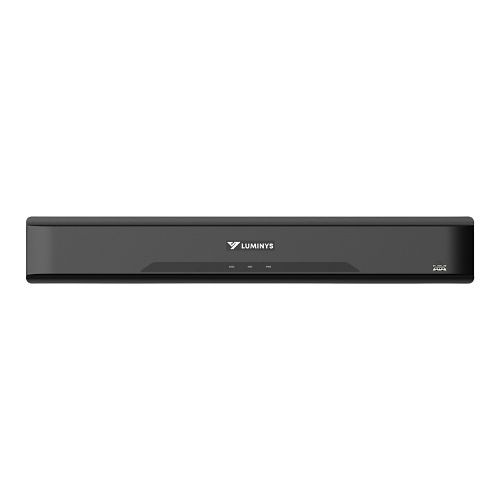

Luminys - R54-32NA10 - R5 Mainstream Series NVR, 32MP 32 Channel 1.5U Dual NIC, 4SATA, Analytics by Recorder, LumiSearch+, 10TB
Part number:
Price:
• 8K NVR
• 32 Channels With Four (4) SATA Ports and One(1) eSATA Port
• Dual NIC
• HDMI/VGA Output
• Supports LumiSearch+*
• iMD, Face Recognition, and VCA by Recorder
| Video | |
|---|---|
| Video Input | 32 Channels |
| Recording Resolutions | 32MP, 16MP, 12MP, 8MP, 6MP, 5MP, 4MP, 3MP, 1080p, 720p, D1, VGA, CIF |
| Output Resolutions | HDMI (2CH): 4K (3840 × 2160), 1920 × 1080, 1280 x 1024 VGA (2CH): 1920 × 1080, 1280 x 1024 HDMI1/HDMI2 Independent Output HDMI1/VGA1 Simultaneous Output HDMI2/VGA2 Simultaneous Output |
| Live View/Playback Resolutions | 32MP, 16MP, 12MP, 8MP, 6MP, 5MP, 4MP, 3MP, 1080p, 720p, D1, VGA, CIF |
| Decoding Format | Smart Encoding H.265+, H.265, Smart Encoding H.264+, H.264, MJPEG |
| Decoding Capability | AI On • 1CH at 32MP (30 fps) • 2CH at 16MP (30 fps) • 4CH at 8MP (30 fps) • 12CH at 4MP (30 fps) • 24CH at 1080p (30 fps) AI Off • 2CH at 32MP (30 fps) • 4CH at 16MP (30 fps) • 8CH at 8MP (30 fps) • 16CH at 4MP (30 fps) • 32CH at 1080p (30 fps) |
| Live View Window Division | 1, 4, 9, 16, 25, 36 Views |
| Auxiliary Port Window Division | 1, 4, 8, 9, 16 Views |
| Synchronous Playback | 16 Channels |
| Supported Analytics | Intelligent Motion Detection Camera: 16CH NVR: 8CH Video Content Analytics (VCA) Camera: 16CH NVR: 4CH 10 Rules per Channel Face Recognition Face Capture and Recognition: 2CH Face Picture Comparison Alarm From Camera: 16CH Up to 20 Face Picture Libraries (Max. 20,000 Pictures Total) LumiSearch+* 16CH (Must be Supported by Camera) Video Metadata 8CH (Analytics by Camera) License Plate Recognition 8CH (LPR Camera Required) Two (2) Block List, Two (2) Allow List Up to 20,000 Plate Numbers *LumiSearch+ requires the use of a LumiSearch+-enabled camera. |

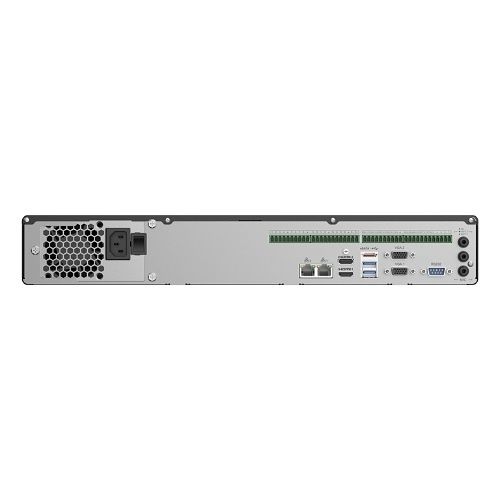

| Interface | |
| SATA | Four (4) Ports |
| eSATA | One (1) Port |
| HDD | Up to 16TB per HDD |
| Network | Two (2) RJ-45 Self-Adaptive Ethernet (10/100/1000 Mbps) |
| USB | Front Panel: 1 x USB 2.0 Rear Panel: 2 x USB 3.0 |
| Serial Port | 1 x RS-232 |
| Alarm | Input: 16 Channels Output: 6 Channels |
| Audio | Input: 1-Channel RCA Input Output: 2-Channel RCA Output |
| Network | |
| Bandwidth | AI On • Incoming: 220 Mbps • Outgoing: 220 Mbps AI Off • Incoming: 400 Mbps • Outgoing: 400 Mbps |
| Protocol | HTTP, HTTPS, TCP/IP, IPv4, IPv6, UPnP, SNMP, RTSP, UDP, SMTP, NTP, DHCP, DNS, DDNS |
| Interoperability | ONVIF, RTSP |
| PoE Standard | IEEE 802.3 af/at |
| Client | LumiViewer, LumiViewer Mobile App, LumiCloud |
| Electrical | |
| Power Supply | 100 to 240 VAC, 50 to 60 Hz |
| Power Consumption | < 13 W (HDD Not Included) |
| Construction | |
| Installation Method | Rack- or Desktop-Mount |
| Weight | 4.7 kg (10.5 lb) Without HDD |
| Operating Temperature | –10 °C to 55 °C (14 °F to 131 °F) |
| Humidity | 10% to 93% |
| Dimensions (W × D × H) | 442.0 × 414.1 × 68.0 mm (17.4 × 16.3 × 2.7 in.) |
| Certifications and Compliance | |
| Certifications | FCC |
| Compliance | NDAA |
