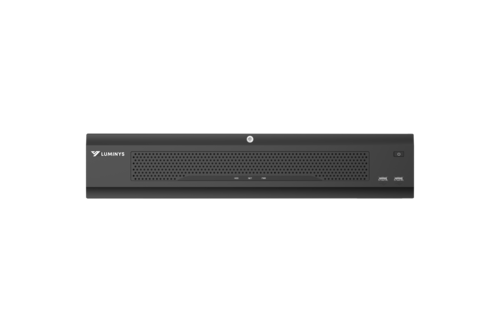

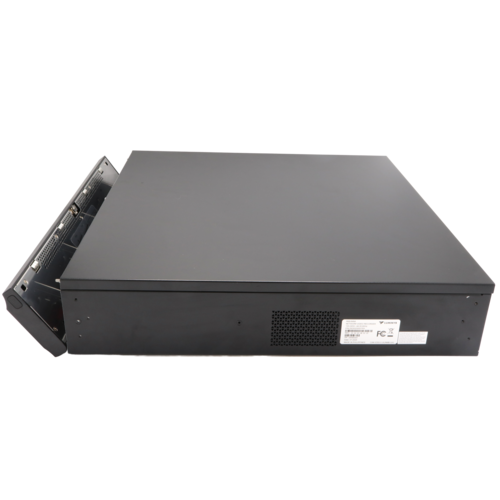

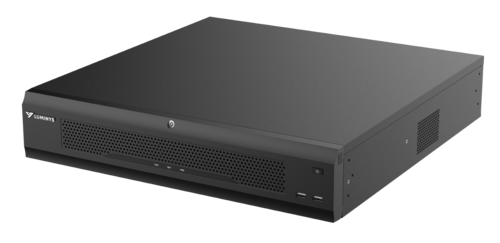

Luminys - R68-64NA128 - R6 Extreme NVR, 32MP 64 CH Dual NIC, 8SATA, Metadata, LumiSearch+,128TB
• 64 Channels, Up to 32MP Cameras (Max. Incoming Bandwidth: 1280 Mbps)
• LumiSearch by Camera
• iMD, Face Recognition, Metadata, and VCA by Recorder
• Up to 160 TB Internal Storage, Eight SATA Ports, One eSATA Port
• Supports RAID 0, 1, 5, 6, 10, Hot Swap
• Dual NIC (10/100/1000/2500 Mbps Ethernet)
• NDAA Compliant
• FCC
| Video | |
|---|---|
| Video Input | 64 Channels |
| Recording Resolutions | 32MP, 24MP, 16MP, 12MP, 8MP, 6MP, 5MP, 4MP, 3MP, 1080p, 720p, D1, VGA, CIF |
| Output Resolutions | HDMI (4CH) • HDMI 1 and 2: 3840 × 2160, 1920 × 1080, 1280 × 1024 • HDMI 3: 7680 × 4320, 3840 × 2160, 1920 × 1080, 1280 × 1024 • HDMI 4: 1920 × 1080, 1280 × 1024 VGA (2CH): 1920 × 1080, 1280 x 1024 Simultaneous Mode: • HDMI1/HDMI2/HDMI3/HDMI4 Simultaneous Output • VGA1/VGA2 Simultaneous Output • HDMI1/VGA1 Simultaneous Output • HDMI2/VGA2 Simultaneous Output Spot Output Mode: • HDMI1/HDMI2/HDMI3/HDMI4 Spot Output |
| Live View / Playback Resolutions | 32MP, 24MP, 16MP, 12MP, 8MP, 6MP, 5MP, 4MP, 3MP, 1080p, 720p, D1, VGA, CIF |
| Decoding | |
| Format | Smart H.265+, Smart H.264+, H.265, H.264, MJPEG |
| Capability (AI On) | 1CH at 32MP/24MP (30 fps) 2CH at 16MP/12MP (30 fps) 4CH at 8MP (30 fps) 5CH at 6MP (30 fps) 6CH at 5MP (30 fps) 8CH at 4MP (30 fps) 16CH at 1080p (30 fps) |
| Capability (AI Off) | 2CH at 32MP/24MP (30 fps) 4CH at 16MP (30 fps) 5CH at 12MP (30 fps) 8CH at 8MP (30 fps) 12CH at 5MP (30 fps) 16CH at 4MP (30 fps) 32CH at 1080p (30 fps) 64CH at D1 (30 fps) |
| Live View Window Division | 1, 4, 8, 9, 16, 25, 36, 64 Views |
| Auxiliary Port Window Division | 1, 4, 8, 9, 16, 32 Views |
| Synchronous Playback | 16 Channels |
| Supported Analytics | |
| Intelligent Motion Detection | Camera: 64CH (Max. 128 Targets per Second) NVR: 32CH |
| Video Content Analytics (VCA) | Camera: 64CH (Max. 64 Targets per Second) NVR: 32CH (Simultaneous Output) OR 24CH (Spot Video Output) |
| Face Detection | Camera: 64CH NVR: 8CH (Simultaneous Output) OR 5CH (Spot Video Output) |
| Face Recognition | Simultaneous Output: • Face Captured by Camera: 32CH • Face Captured by NVR: 8CH Spot Video Output: • Face Captured by Camera: 16CH • Face Captured by NVR: 5CH Up to 40 Face Picture Libraries (Max. 300,000 Pictures Total) |
| LumiSearch | 64CH (Must be Supported by Camera) |
| Video Metadata | Camera: 64CH NVR: 8CH |
| License Plate Recognition | 64CH (LPR Camera Required) (Max. 64 Targets per Second) One (1) Block List, One (1) Allow List Up to 20,000 Plate Numbers |
| Interface | |
| SATA | Eight (8) Ports |
| eSATA | One (1) Port |
| HDD | Up to 20 TB per HDD |
| RAID | 0, 1, 5, 6, 10 |
| Hot Swap | Supported |
| Network | Two (2) RJ-45 Self-Adaptive Ethernet (10/100/1000/2500 Mbps) |
| USB | Front Panel: Two (2) x USB 2.0 Rear Panel: Two (2) x USB 3.0 |
| Serial Port | One (1) x RS-232, One (1) x RS-485 |
| Alarm | Input: 16 Channels Output: Eight (8) Channels |
| Audio | Input: One-Channel RCA Input Output: Two-Channel RCA Output Two-Way Audio Supported |
| Network | |
| Bandwidth (AI On) | Incoming/Recording: 700 Mbps Outgoing: 512 Mbps |
| Bandwidth (AI Off) | Incoming/Recording: 1400 Mbps Outgoing: 1024 Mbps |
| Protocol | HTTP, HTTPS, TCP/IP, IPv4, IPv6, UPnP, SNMP, RTSP, UDP, SMTP, NTP, DHCP, DNS, DDNS |
| Interoperability | ONVIF, RTSP |
| Client | LumiViewer, LumiViewer Mobile App |
| Electrical | |
| Power Supply | 100 to 240 VAC, 50 to 60 Hz |
| Power Consumption | < 18 W (HDD Not Included) |
| Construction | |
| Installation Method | Rack- or Desktop-Mount |
| Housing | 2U |
| Weight | 7.2 kg (15.8 lb) Without HDD |
| Operating Temperature | –10 °C to 55 °C (14 °F to 131 °F) 10% to 93% RH |
| Dimensions (W × D × H) | 442.0 mm × 457.3 mm × 88.0 mm (17.4 in. × 18.0 in. × 3.5 in.) |
| Certifications and Compliance | |
| Certifications | FCC |
| Compliance | NDAA |
The Luminys R6 Extreme Series NVR is a 64-channel recorder supporting up to 32MP resolution, featuring dual 2.5Gbps network interfaces. Recording bandwidth reaches 1400 Mbps or 700 Mbps. It includes 8 SATA bays up to 160TB total with RAID 0,1,5,6,10 support and hot-swap capability. The NVR features four HDMI outputs, one 8K-capable and two VGA outputs. AI analytics include Intelligent Motion Detection, Video Content Analytics, Face Recognition, LumiSearch, Video Metadata, and License Plate Recognition. The NVR features 16 alarm inputs, 8 alarm outputs, two-way audio, and operates from -10°C to 55°C. The 2U chassis is FCC certified and NDAA compliant.
