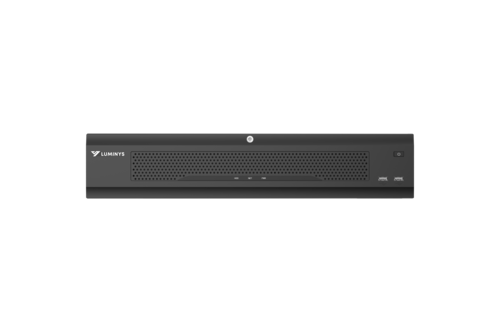

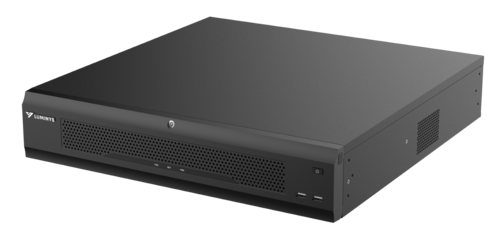

Luminys - R68-XNA - R6 Extreme Series NVR, 32MP 128 Channel 2U Dual NIC, 8SATA, Analytics by Recorder Including Metadata, LumiSearch Supported
Part number:
R68-XNA
Price:
R6 Extreme Series NVR, 32MP 128 Channel 2U Dual NIC
Features:
- 8K 128 Channel
- Up to 1400 Mbps Recording Bandwidth
- 2ch@8K/8ch@4K/16ch@4MP decoding capacity
- Up to 32MP Resolution
- Supports Recorder-Based and Camera-Side Analytics, LumiSearch, LumiAnalytics and more

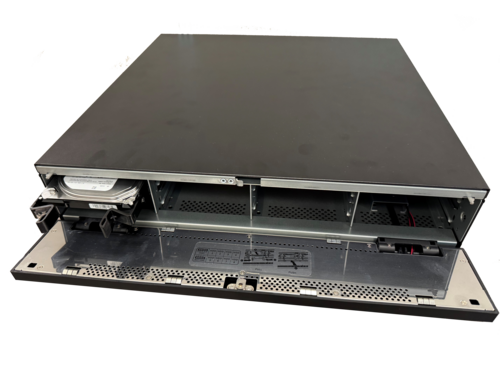

- Dual NIC, 2U Form Factor, 8 SATA, RAID, Hot Swap, Drawer HDD Bay Design, Audio, and Alarm Support
- Storage: Supports up to 160TB total storage (8x 20TB HDD), not included.
| Specification | |
| Series R6 Series | |
| Key Features | 128CH 8K LumiSearch NVR LumiAanlytics by Recorder |
| Video Compression | H.265, H.264, MJPEG |
| IP Video Inputs | 128CH |
| Max Input/Record Bandwidth | 1400 Mbps (TBD) |
| Display Output | HDMI (8K Max), VGA (1080p Max) |
| Maximum HDD Capacity | Supports up to 128TB total (8 x 16TB per drive) |
| eSATA/Mini SAS | 1 eSATA Port |
| Audio In/Out | 1/2 |
| Alarm In/Out | 16/8 |
| Ethernet Port | 2 x 2.5 Gigabit Ports |
| PoE Port | - |
| Dimensions | 17.5 × 18.7 × 3.74 in. |
| Power | 100–240 VAC, 50/60 Hz |
