Luminys - SAL-1LAB - Single-Port Ethernet and PoE over Coax Extender, Long-Distance IP Transmission
Product Overview

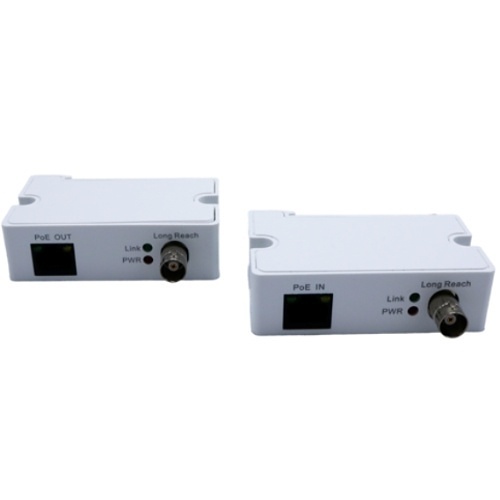

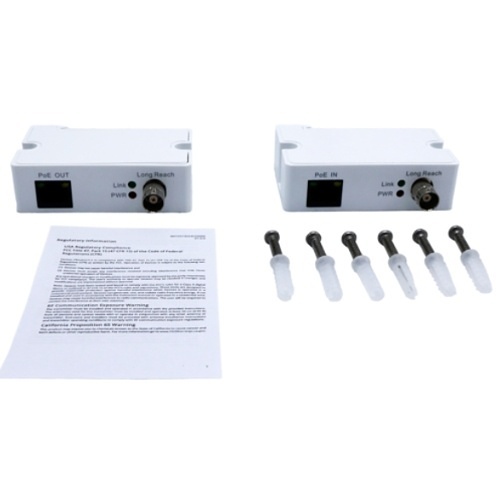

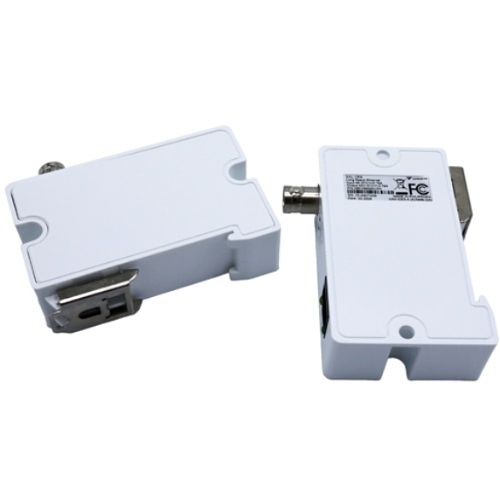

The Luminys SAL-1LAB is a single-port Ethernet and Power over Ethernet over coax extender designed for IP security network upgrades. It allows installers to transmit both network data and PoE power over existing coaxial cable, helping convert legacy analog camera infrastructure to modern IP-based systems without replacing the cabling.
Key Configuration
Single-port Ethernet and PoE over coax extender; supports long-distance IP transmission over existing coaxial cable; meets IEEE802.3af and IEEE802.3at PoE standards; operating temperature range of -30 °C to 65 °C (-22 °F to 149 °F).
Key Features
• Transmits Ethernet data and PoE power over coaxial cabling
• Supports long-distance IP transmission for security network upgrades
• Enables reuse of existing coax infrastructure when migrating from analog to IP systems
• Plug-and-play deployment simplifies installation
• Meets IEEE802.3af and IEEE802.3at PoE standards
Technical Context
By carrying Ethernet and PoE over coax, the SAL-1LAB helps bridge legacy cabling with IP-based devices. This is especially useful in surveillance installations where existing coaxial runs are already in place and replacing them with new Ethernet cable would increase labor and installation cost.
Installation Notes
The extender is intended for plug-and-play deployment over existing coaxial cable. It supports operation in temperatures from -30 °C to 65 °C (-22 °F to 149 °F), making it suitable for a range of security installation environments.
| Specifications | |
| Interface | 1 x RJ-45 10/100 Mbps, 1 x BNC |
| Power Consumption | < 2 W |
| Casing Material | PC + ABS |
| Operating Temperature | –30 °C to 65 °C (–22 °F to 149 °F) |
| Storage Temperature | –30 °C to 65 °C (–22 °F to 149 °F) |
| Dimensions (L x W x H) | 79.0 mm × 52.0 mm × 23.0 mm (3.11 in. x 2.05 in. x 0.91 in.) |
| Example: RG-59 Cable With SAL-1LAB (Max. DC Resistance < 5.0Ω/100m) | |
| 100 m | 48 V: Bandwidth 100 Mbps, Load Capacity 21 W 53 V: Bandwidth 100 Mbps, Load Capacity 25.5 W |
| 200 m | 48 V: Bandwidth 100 Mbps, Load Capacity 15 W 53 V: Bandwidth 100 Mbps, Load Capacity 24 W |
| 300 m | 48 V: Bandwidth 100 Mbps, Load Capacity 11 W 53 V: Bandwidth 100 Mbps, Load Capacity 19 W |
| 400 m | 48 V: Bandwidth 100 Mbps, Load Capacity 9 W 53 V: Bandwidth 100 Mbps, Load Capacity 16 W |
| 500 m | 48 V: Bandwidth 10 Mbps, Load Capacity 7 W 53 V: Bandwidth 10 Mbps, Load Capacity 13 W |
| 800 m | 48 V: Bandwidth 10 Mbps, Load Capacity 5 W 53 V: Bandwidth 10 Mbps, Load Capacity 8 W |
| 1,000 m | 48 V: Bandwidth 10 Mbps, Load Capacity 4 W 53 V: Bandwidth 10 Mbps, Load Capacity 6 W |
