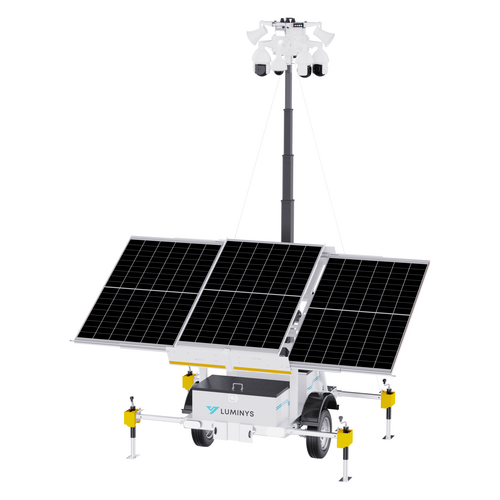

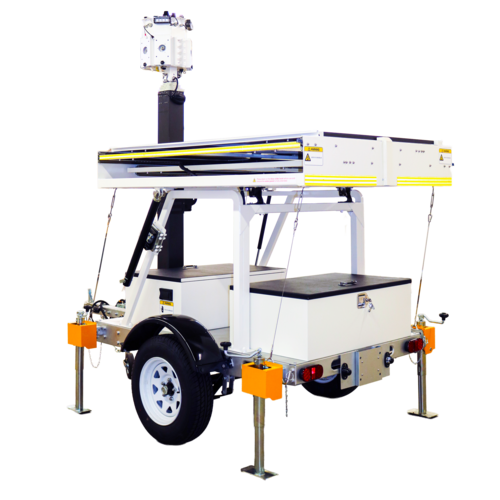

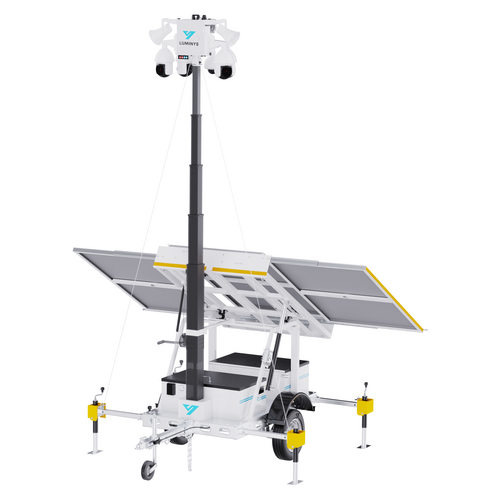

Luminys - TG-113A-OFS - LumiGuardian Solar Security Trailer Offshore Shipping Fee
Part number:
Price:
- • Integrated Cloud-based Recording with LumiCloud
- • One Year LumiCloud Subscription License
- • One Month Subscription of 4G Data 100GB
- • 4G LTE Communication with Built-in eSIM card
- • Autonomous Power for 7 to 10 Days without Sun
- • Four (4) 12.8V Lithium Iron Phosphate Batteries
- • NDAA
| General | |
|---|---|
| Luminys Series | Speciality |
| System Voltage | 48 VDC |
| PV Controller | MPPT 30A, 96.9% |
| IP Rating | IP67 |
| Control | Remote Control |
| Battery Supply | Solar Power, Mains Electricity |
| Trailer Computer | |
| System Frame | Embedded Linux System |
| Watchdog | Supported |
| Hard Disk Storage | HDMI UHD Display |
| IP Network | Video Access |
| Video Input | |
| Supported Resolutions | 16MP, 12MP, 8MP, 6MP, 5MP, 4MP, 3MP, 1080P, 960P, 720P, D1, CIF |
| Max. Input | Eight (8) Cameras |
| Access Bandwidth | 256 Mbps |
| Video Playback | 1/4/8 Simultaneous, APP |
| Audio Functions | |
| Audio and Video Recording | HDMI Audio Output |
| APP Audio and Video Preview/Playback | Audio Compression G.711a, G.711u, PCM, G726 |
| Storage | |
| Built-In | 4 TB HDD |
| Cloud Backup | Recording Type: Motion Detection, Alarm, Schedule, Intelligent, General |
| Power Consumption | |
| Total Output for NVR | ≤ 10W (No HDD) |
| Total Output for PoE | 100 W |
| Max. Output for One Port | 25.5 W |
| Charge Time | 26 Hours (AC) |
| Corrosion Class | C5 |
| Roof Rack Components | |
| Components | 3 x Red and Blue Strobe Lights 2 x Speakers 1 x 4G Router 1 x Floodlight 1 x Power Supply Board (12/48 VDC) 1 x Edge Controller 1 x Hard Drive (4 TB) Note: No cameras are included. |
| PV Controller | |
| Nominal System Voltage | 48 VDC |
| Working Voltage Range | 8 to 68 VDC |
| Communication | RS-485 (RJ45 5 VDC/200 mA) |
| Relative Humidity | < 95% |
| Self-Consumption | < 0.624% |
| Certifications and Compliance | FCC |
| 4G CPE | |
| 4G | LTE FDD: B1/B2/B3/B4/B5/B7/B8/B9/B12/B13/B17/B18/B19/B20/B25/B26/B28/B66 LTE TDD: B34/B38/B39/B40/B41 |
| SIM | 1.8V/3V SIM/UIM Cards |
| Built-In | 15kV ESD protection |
| Port | LAN: Two (2) RS-485/RS-232: One (1) |
| Power | 12 VDC 1A |
| Operating Temperature | –30 °C to 70 °C (-22 °F to 158 °F) |
| Power Consumption | 2.88 W (Max.) |
| LAN Protocol | ARP, Ethernet |
| WAN Protocol | IP, DHCP, PPPoE |
| Solar Panel | |
| Number of Panels | Three (3) |
| Solar Cell Type | Monocrystalline Silicon |
| Wattage | 460 W per Panel |
| Voltage Range | 10 to 40.9 VDC |
| Energy Efficiency | 23.80% |
| Operating Temperature | –40 °C to 80 °C (–40 °F to 185 °F) |
| Dimensions | 1757.0 mm x 1134.0 mm x 30.0 mm (69.2 in. x 44.6 in. x 1.2 in.) |
| Weight per Panel | 21.5 kg (47.4 lb) |
| Certifications | TUV, CQC, CE |
| Battery | |
| Number of Batteries | Four (4) |
| Cathode Material | Lithium Iron Phosphate |
| Voltage per Battery | 12.8 V |
| Capacity | 4 x 230 Ah/11.8 kWh |
| Operating Temperature | Charge: 0 °C to 60 °C (32 °F to 140 °F) Discharge: –20 °C to 60 °C (–4 °F to 140 °F) |
| Weight | 4 x 22.0 kg (4 x 48.5 lb) |
| Life Cycle | ≥ 5000 Cycle at 25 °C, 0.5 C |
| Mast | |
| Height | 8.0 m (26.0 ft), Retractable |
| Control | Hand-Operated |
| Beaufort Wind Scale | Level 12 (Up to 73 mph/118 kph) |
| Coating | Electrophoretic Preservative |
| Material | Aluminum Alloy |
| AC Charging | |
| Voltage Range | 90 to 264 VAC, 127 to 370 VDC |
| Frequency Range | 47 to 63 Hz |
| Power | 450 W |
| Output Voltage | 42 to 80 VDC (Adaptable) |
| Output Current | 6.8 A |
| Optimal Operating Temperature | –30 °C to 70 °C (–22 °F to 158 °F) |
| Charging Protection | Low Voltage, Over Current, Over Voltage, Short Circuit, Over Temperature |
| Certifications and Compliance | TUV, EAC, CE, CB |
| Trailer | |
| Trailer Coupler | Suitable for 2 in. (50 mm) Trailer Ball |
| Speed Limit | Standard: 80 km/h (50 MPH) Maximum: 100 km/h (62 MPH) |
| Hand Brake | One (1) |
| Tire Type | Aluminum Rim, 175R13 |
| Support Legs | Four (4) |
| Product Dimensions | 3087.0 mm x 3464.0 mm x 7941.0 mm (121.5 in. x 136.4 in. x 312.6 in.) |
| Packaging Dimensions | 2200.0 mm x 1600.0 mm x 2389.0 mm (86.6 in. x 63.0 in. x 94.1 in.) |
| Product Weight | < 780.0 kg (< 1719.6 lb) |
| Protection Measures | |
| Security Features | • Tamper-proof, removable hand crank for mast and PV bracket • Theft-proof control box and trailer support foot • GPS positioning |
