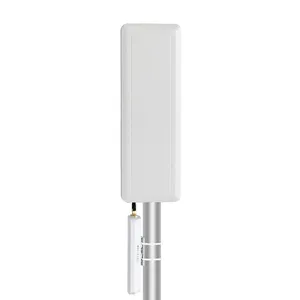

Luminys - WB5-900 - Outdoor Wireless Bridge 5.8GHz, 900Mbps, 5KM distance
Part number:
Price:
• Built-in 18 dBi directional antenna, up to 3 km
• Support non-standard frequency, spreading to 4.9-6.1GHz
• TDMA intelligent dynamic polling protocol
• Support for ATPC power control
• Support VLAN
• Support IPv6
| Flash | 16MB |
| DDR | 128MB |
| 5G working frequency band | 5.150GHz~5.850GHz |
| 5G WIFI transmission protocol | 802.11 a / n /ac wave 2 |
| Top Speed | 867Mbps |
| Antenna | Dual polarized Omni Antenna gain: 18dBi |
| 5G EVM | 802.11a_54M: ≤-25 dB; 802.11n_MCS7: ≤-28 dB; 802.11AC_MCS9:≤-32dB |
| Frequency Deviation (ppm) | ±20ppm |
| Interface | 1*10/1000M WAN, 1*1000M LAN |
| Power Supply | PoE 24V-48V |
| Maximum Power Dissipation | < 15W |
| Reset Button | Press 10 seconds to reset; Press 2-5 seconds to pair |
| Status Indicator Light | System, LAN, WAN, 5G WIFI, signal*4 |
| Product Size | 196mm x 86mm x 40mm |
| Weight | 0.4kg |
| Work Environment | Normal operating temperature: -30°C to 55°C; Storage temperature: -40°C to 70°C; Humidity: 5%~95% (no condensation) |
| Levels of Protection | IP65 |
| ESD | Air discharge + / -8K, contact discharge + / -6K |
| Surge | Co-mode 4K and differential mode 2K |
| Package Size | 50cm x 30cm x 20cm |
| Package Gross Weight | 2kg |
The WB5-900 is a popular 5.8 GHz, 900 Mbps outdoor CPE. Compliant with the IEEE 802.11ac standard, it features an 18dBi dual-polarised high-gain sector antenna with a 60-degree coverage range. The PTMP distance exceeds 3 kilometers. The WB5-900 has an ABS shell that is waterproof, dustproof, and sun-resistant. It also supports 24–48 V PoE and 4 kV lightning protection, making it ideal for outdoor use. Most importantly, it supports TDMA, which greatly improves transmission performance.
