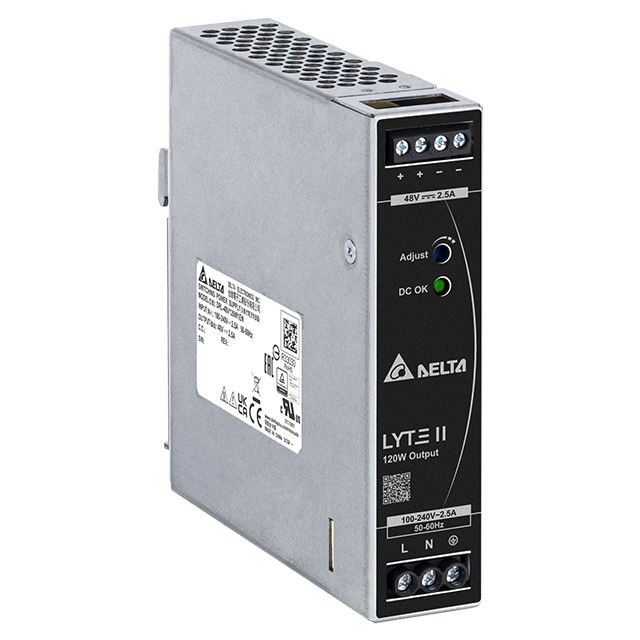

Vivotek - DRL-48V120W1EN - LYTE II DIN Rail Power Supply
Part number:
DRL-48V120W1EN
Price:
LYTE II DIN Rail Power Supply
Features:
- LYTE II DIN Rail Power Supply
| Technical Specification | |
| Power Input Range | 90~264VAC |
| Input Frequency Range | 47~63 Hz |
| Input Current | 2.1 A typ.@115 VAC 1.3A typ. @ 230VAC |
| Output Voltage Adjustment Range | 43.2-52.8 VDC |
| Output Current | 2.5A |
| Output Power | 120W max |
| Operating Temperature | -30°C to +70°C (-40°C Cold Start) |
| Operating Humidity | 20 to 90% RH (Non-Condensing) |
| Dimensions | 123.6 (H) x 30 (W) x 116.8 (D) mm |
| Certifications | CE&UKCA/CB/TUV/UL/BIS/BSMI |
Name
Description
Size
Downloads
File
Specification Sheet
0.5mb
File
Manual
1.9mb
