ELK - M1GSYS4 - M1 Gold Kit with Enclosure and M1KP Keypad

Product Overview

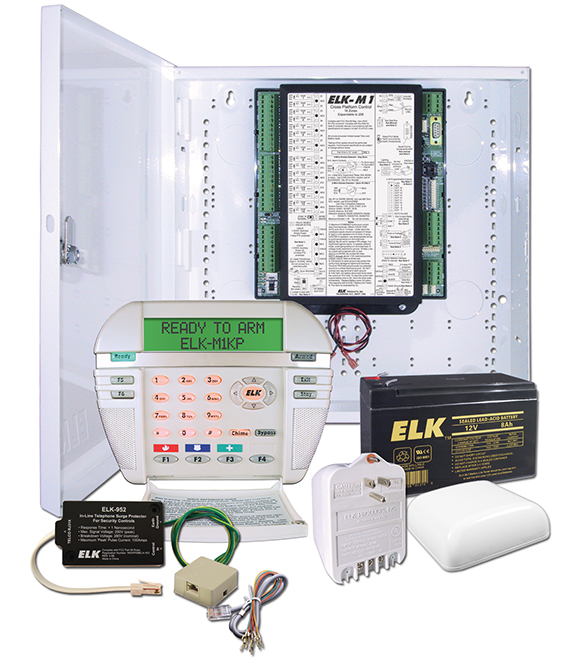

The ELK M1GSYS4 is a comprehensive M1 Gold starter kit that bundles the central control board with a SWB14 enclosure, M1KP LCD keypad, 8Ah backup battery, and 16V AC transformer. For immediate setup, the package includes an interior speaker, telephone surge protection, and a telco jack/cord assembly. Beyond standard security and wireless sensor support, the system features an astronomical clock and occupancy detection to automate lighting, climate control, and entry points like gates or garage doors.

Key Configuration

• • Zone capacity: 16 on-board zones, expandable to 208
• • Wireless capability: up to 144 zones; supports multiple wireless receivers for increased coverage
• • On-board outputs: 13 total (1 voice/siren, 1 siren driver/voltage, 1 Form C relay, 10 low current voltage outputs at 50 mA each)
• • Included keypad: M1KP LCD keypad
• • Included enclosure: SWB14; included battery: ELK-1280 8Ah

Key Features

It offers advanced security and environmental monitoring with scalable support for wireless sensors and smart automation. Its built-in astronomical clock and occupancy detection enable seamless control over lighting, HVAC, and entry systems via intuitive interfaces. Users can manage the entire system remotely through smart devices, ensuring real-time access and comprehensive reporting from any location.

Technical Context

Includes TRG1640 AC transformer, 73 Echo paintable interior speaker, 952 in-line telephone surge protector, and RJSET telco jack with cord. Supports IP/cellular reporting and secure connectivity for remote control.
