ELK - M1XSLC - M1 serial to Lutron Caseta Wireless Interface
• Connects to the ELK-M1 Keypad Databus
• Addressable as a TYPE 5 Databus (ID 1-7)
• Activity/Status LED (Orange)
• Auto-Reset Hardware Watchdog Circuit

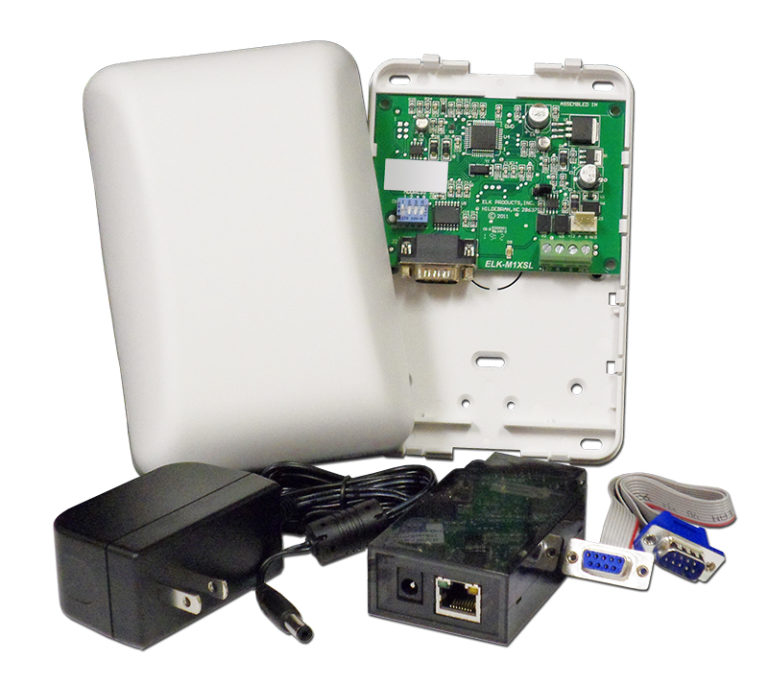

• Included: ELK-M1XSLU M1 Interface for Lutron, Plastic Housing, ELK-IP232 Serial to Ethernet Bridge, ELK-P1216 1.6A 12Vdc Power Supply, ELK-W040A DB9 Pin Serial Cable Assembly, 4 #6 Plastic Anchors, 4 #6 Pan Head Sheet Metal Screws, Mini Null Modem Adapter, Instructions
| Operating Voltage | 12 Volts DC Supplied from M1 |
| Current Draw | 31mA |
| Housing Dimensions | 4.25" x 6.375" x 2.125" |
| Circuit Board | 2.75" x 3.95" |
The ELK-M1XSLC interface kit contains the ELK components necessary for integration with Lutron Caséta Wireless and Homeworks QS devices: the ELK-M1XSLU and the ELK-IP232. The kit facilitates communication with the Lutron Smartbridge Pro, enabling the M1 to control Caséta lights and shades. It also enables communication with the Lutron Homeworks QS processor, allowing the M1 to control Homeworks QS lights, shades, and thermostats.
