TRENDNET - TI-TCR02 - M12 Industrial 2m (6.5 ft.) Relay Cable
TRENDNET - TI-TCR02 - M12 Industrial 2m (6.5 ft.) Relay Cable
Part number:
TI-TCR02
Price:
Dealers only
Add to Quote/Project Registration
Description Specifications Downloads

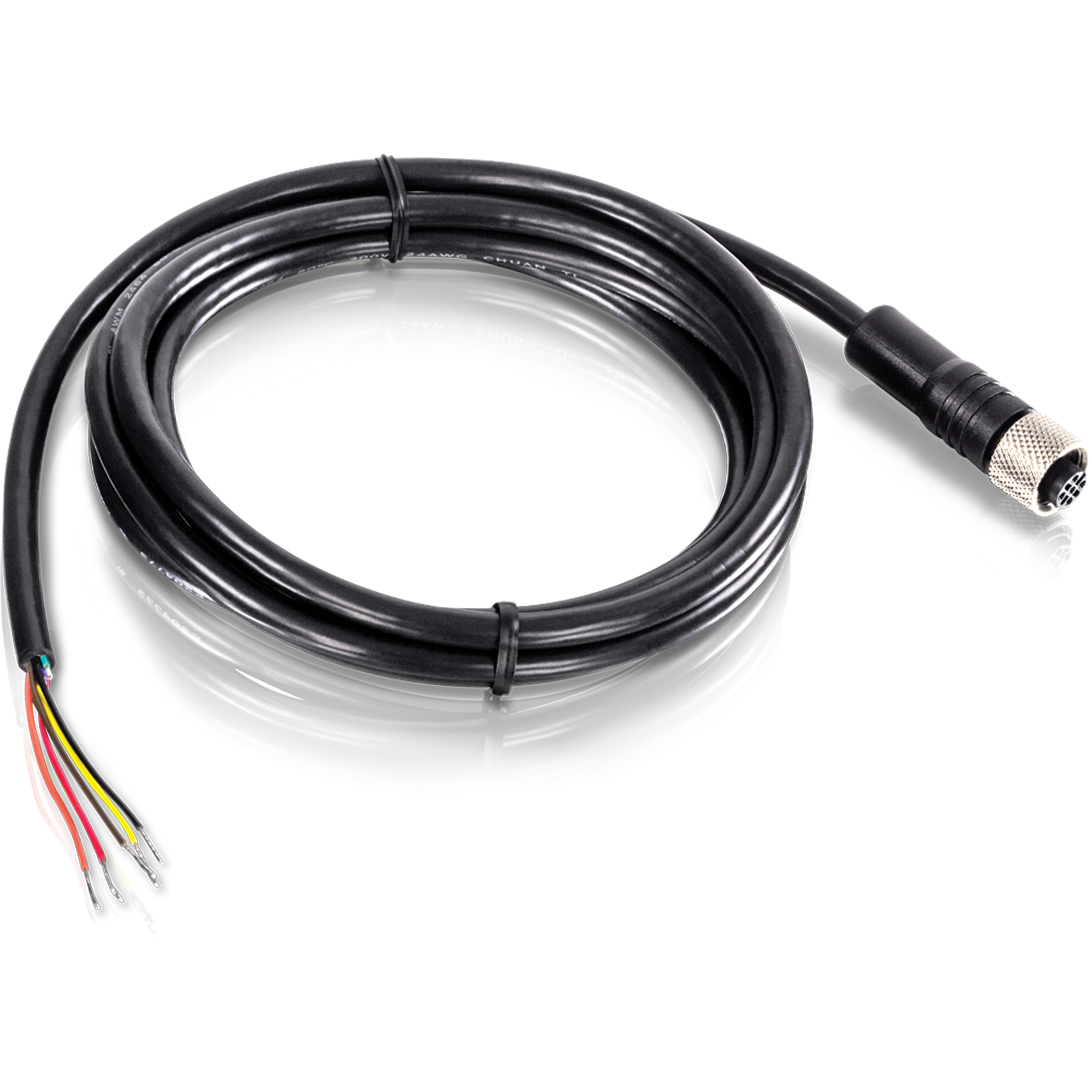

TRENDnet's M12 Industrial Alarm Relay Cable 2m (6.5 ft.), model TI-TCR02, is designed to connect the TI-TPG80 industrial rail switch to an alarm relay in case of power failure. The M12 cable interface is specially designed for moving bus, train, and other rolling stock applications.


Features:

  • Compatible with the TI-TPG80 Industrial M12 Switch
  • 1 x M12 5-pin cable interface
  • Industrial alarm relay cable
  • IP68 weather rated cable
  • 2m (6.5 ft.) cable length
  • NDAA / TAA compliant
Technical Specifications
Interface
  • 1 x M12 8-pin A-code female interface
  • 1 x RJ-45 network interface
  • IP68 rated
Features
  • Max. contact resistance: 20Ω
  • Min. insulation resistance: DC 200V 10ms 10MΩ
  • IP68 rating ensures protection from liquid moisture and fine particulates
  • PUR jacket resists oil and other contaminants
Operating Temperature
  • -25° – 80° C (-13° – 176° F)
Operating Humidity
  • Max. 90 % non-condensing
Length
  • 2m (6.5 ft.)
Weight
  • 80g (2.6 oz.)
Warranty
  • 1 year
