TRENDNET - TI-CD02 - M12 to RJ-45 Industrial
Part number:
TI-CD02
Price:

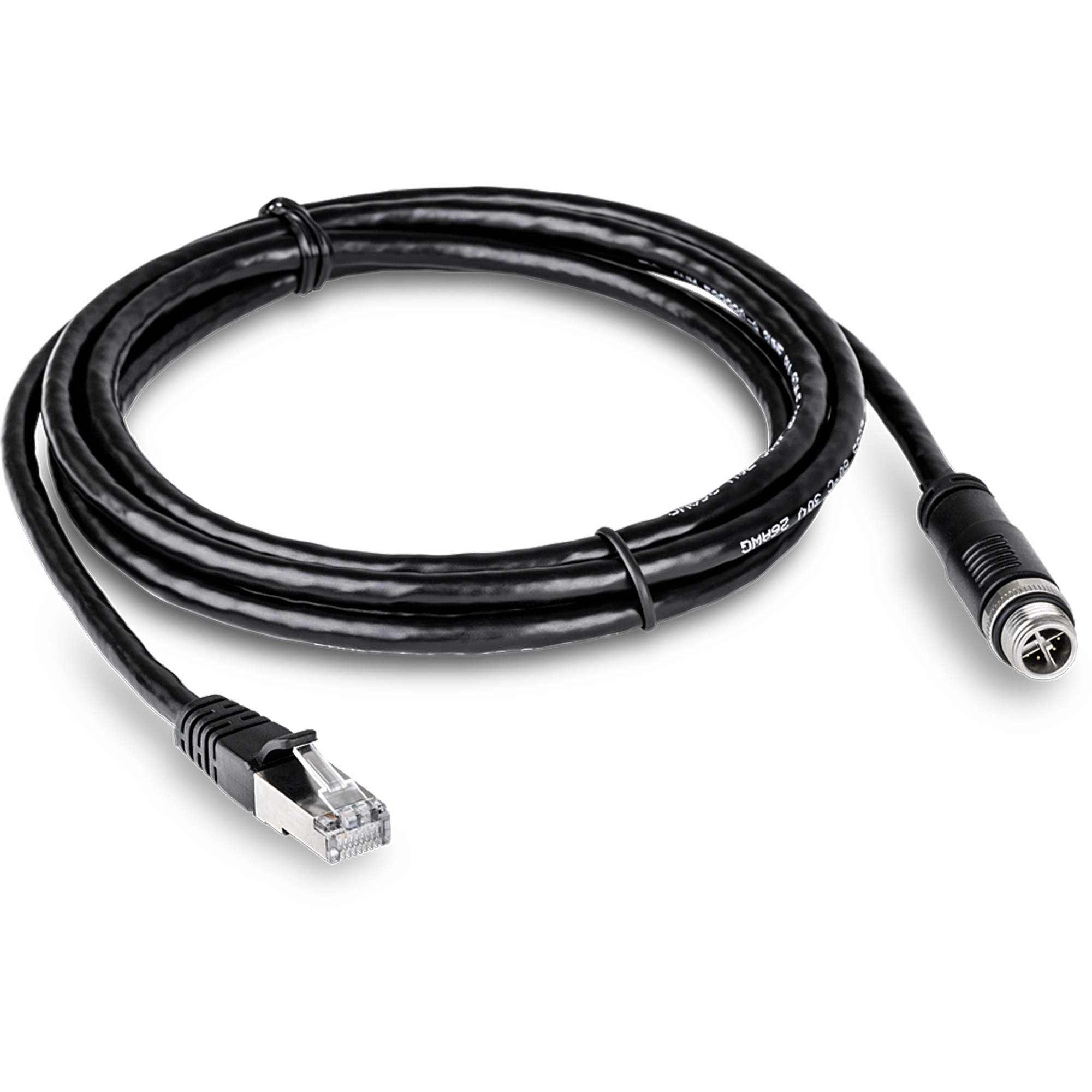

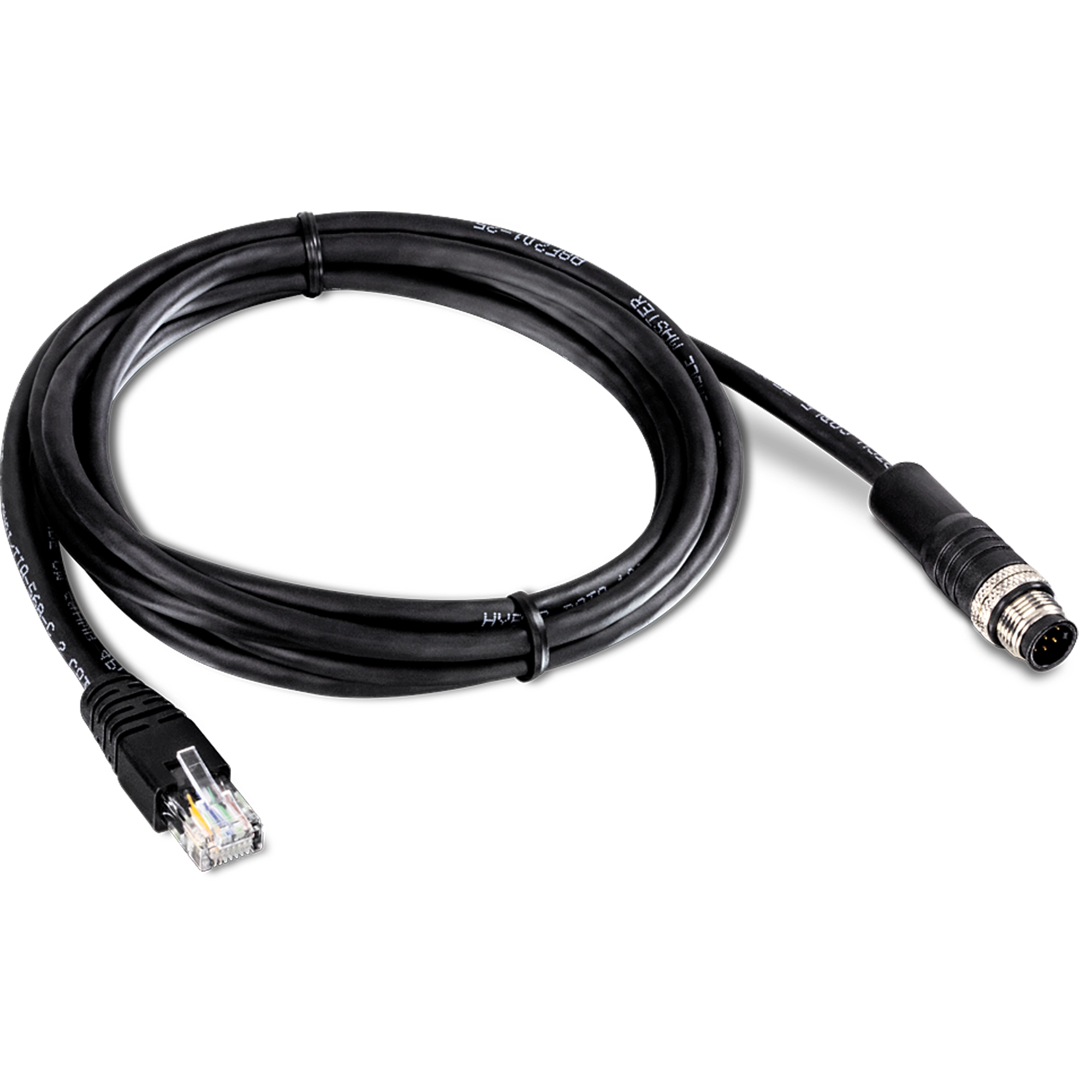

TRENDnet’s M12 to RJ-45 Industrial Ethernet Cable, 2m (6.5 ft.), model TI-CD02, is designed to connect a PoE device to the TRENDnet industrial M12 railway switch. The M12 cable features one M12 interface, and one RJ-45 interface for a single device connection. This rugged IP67 rated M12 cable is specially designed for moving bus, train, and other rolling stock applications.


Features:

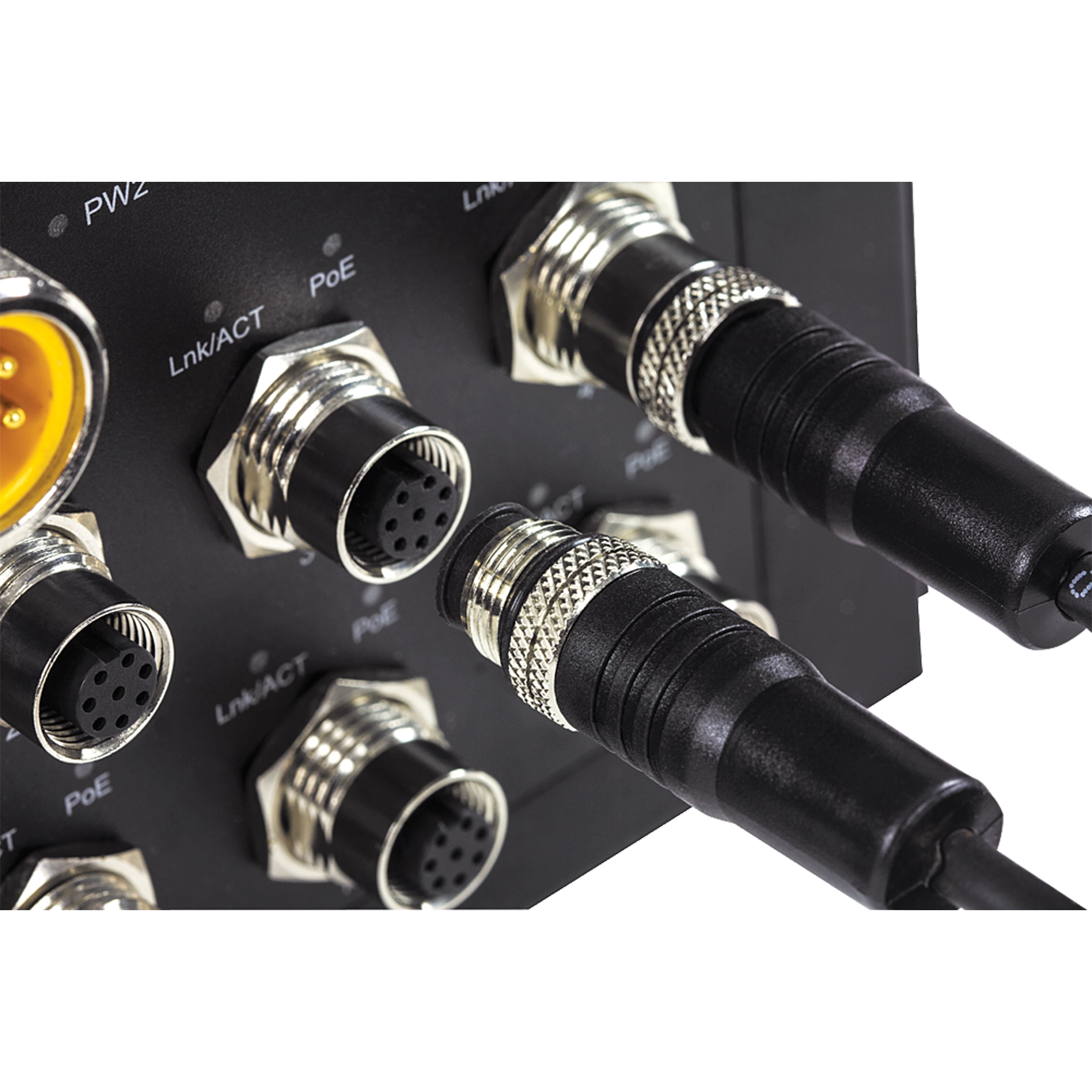

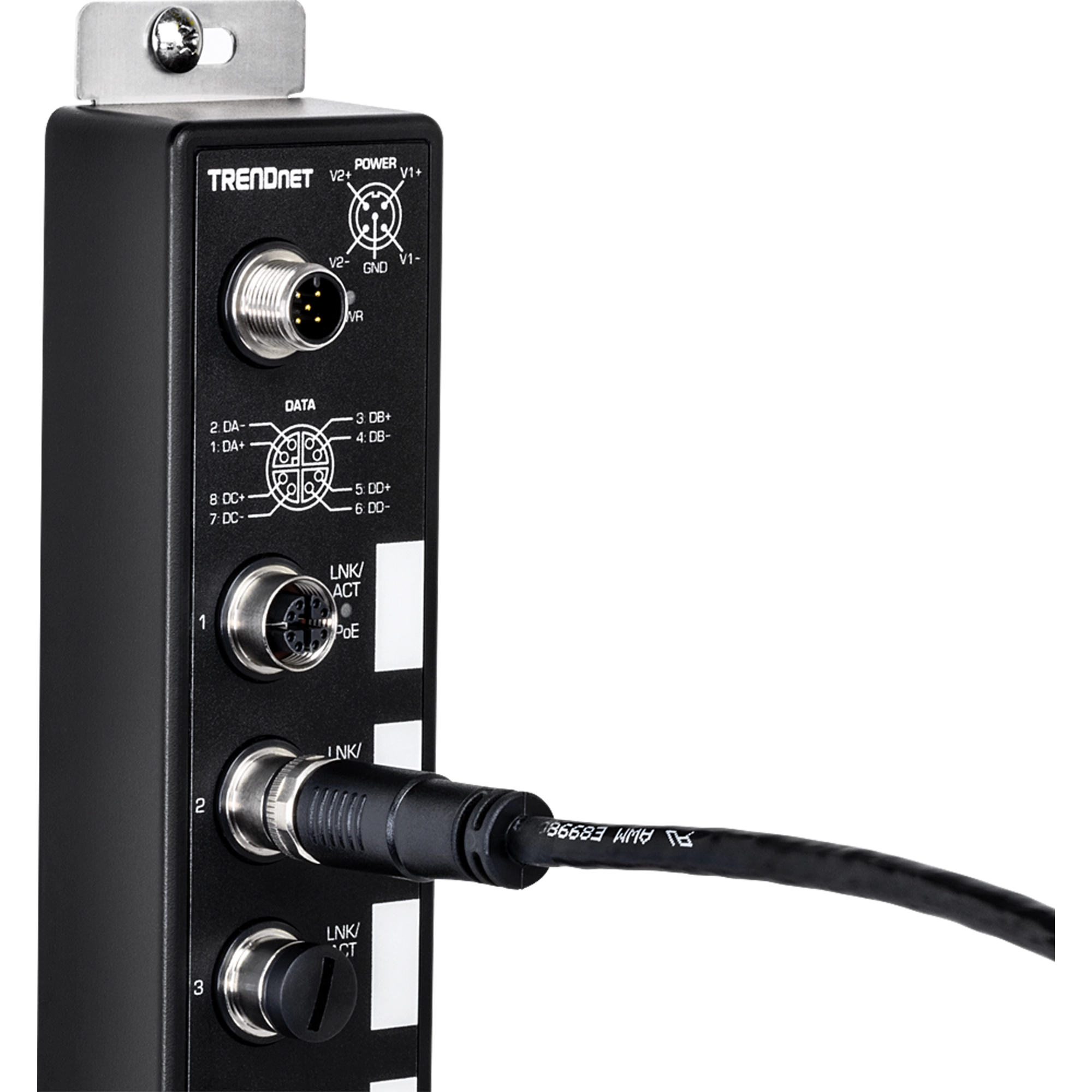

  • Compatible with the TI-XPG50 industrial M12 switch

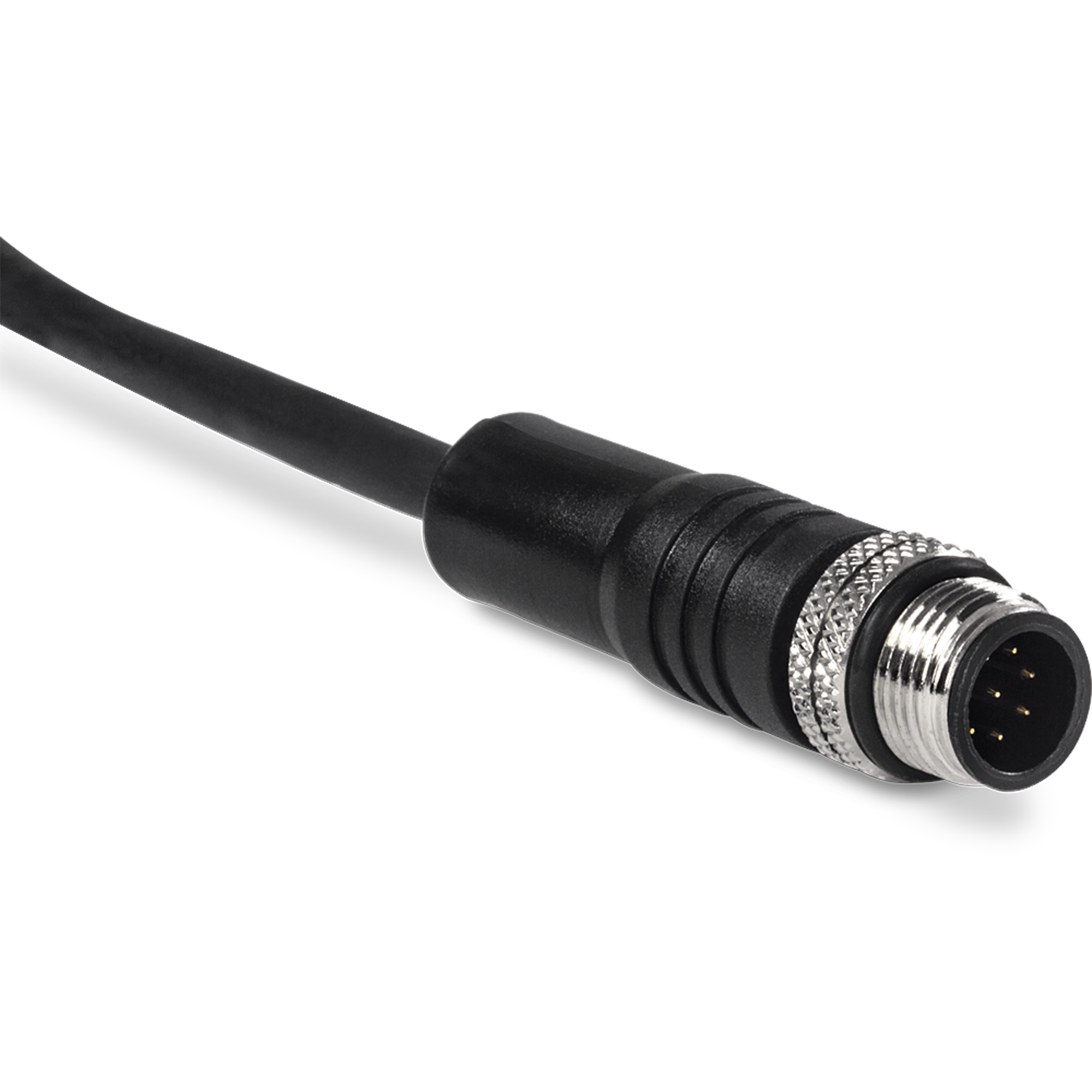

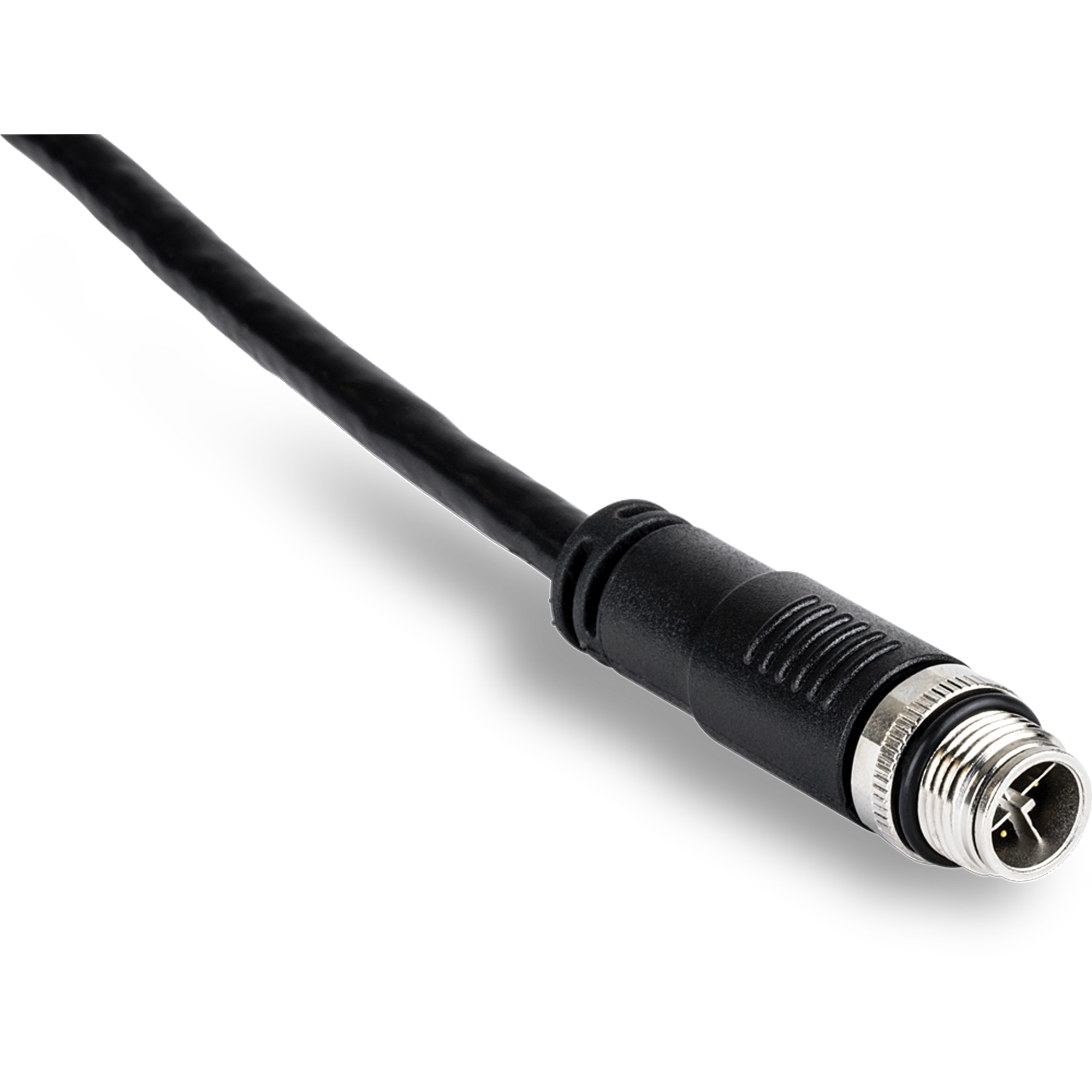

  • 1 x M12 8-pin A-code cable interface

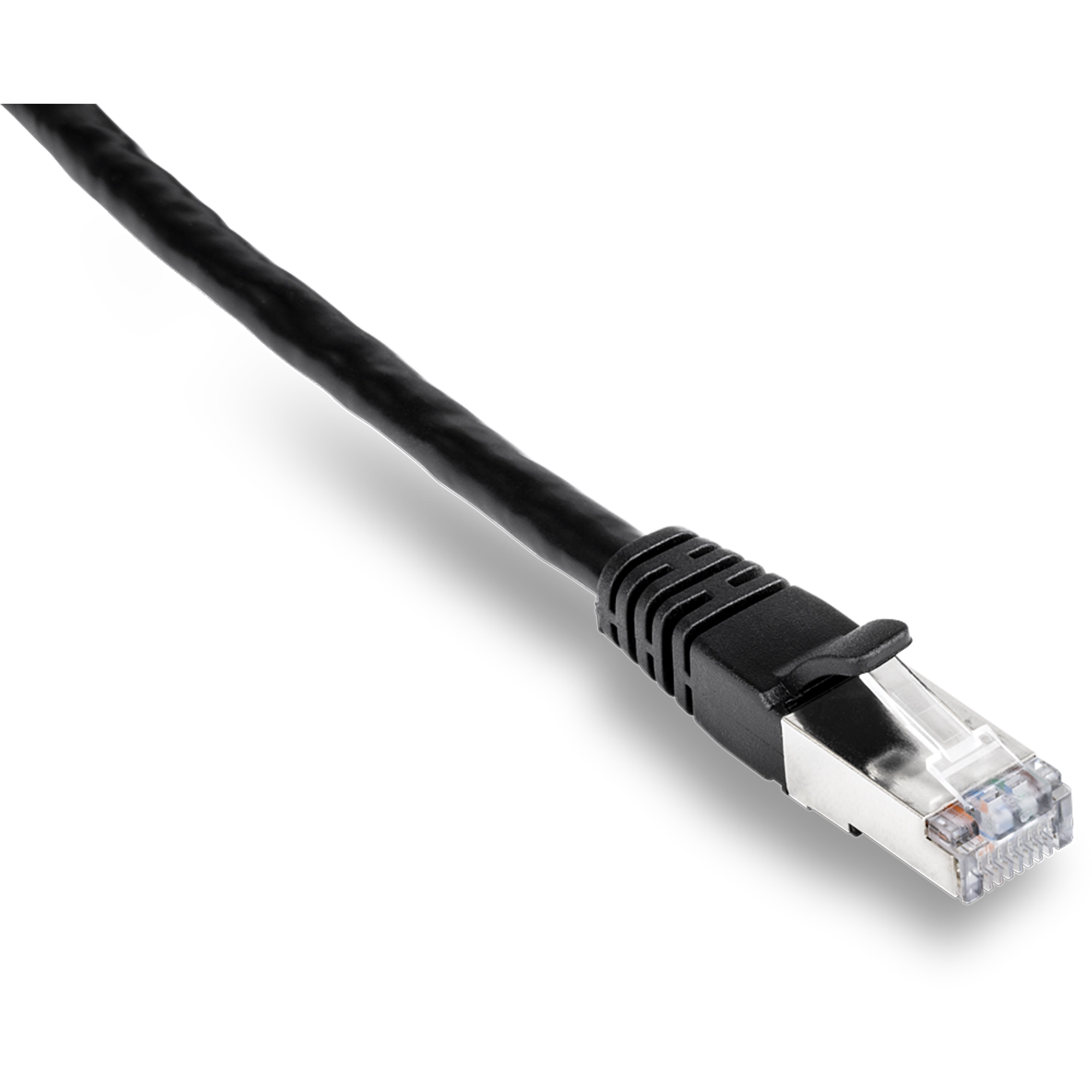

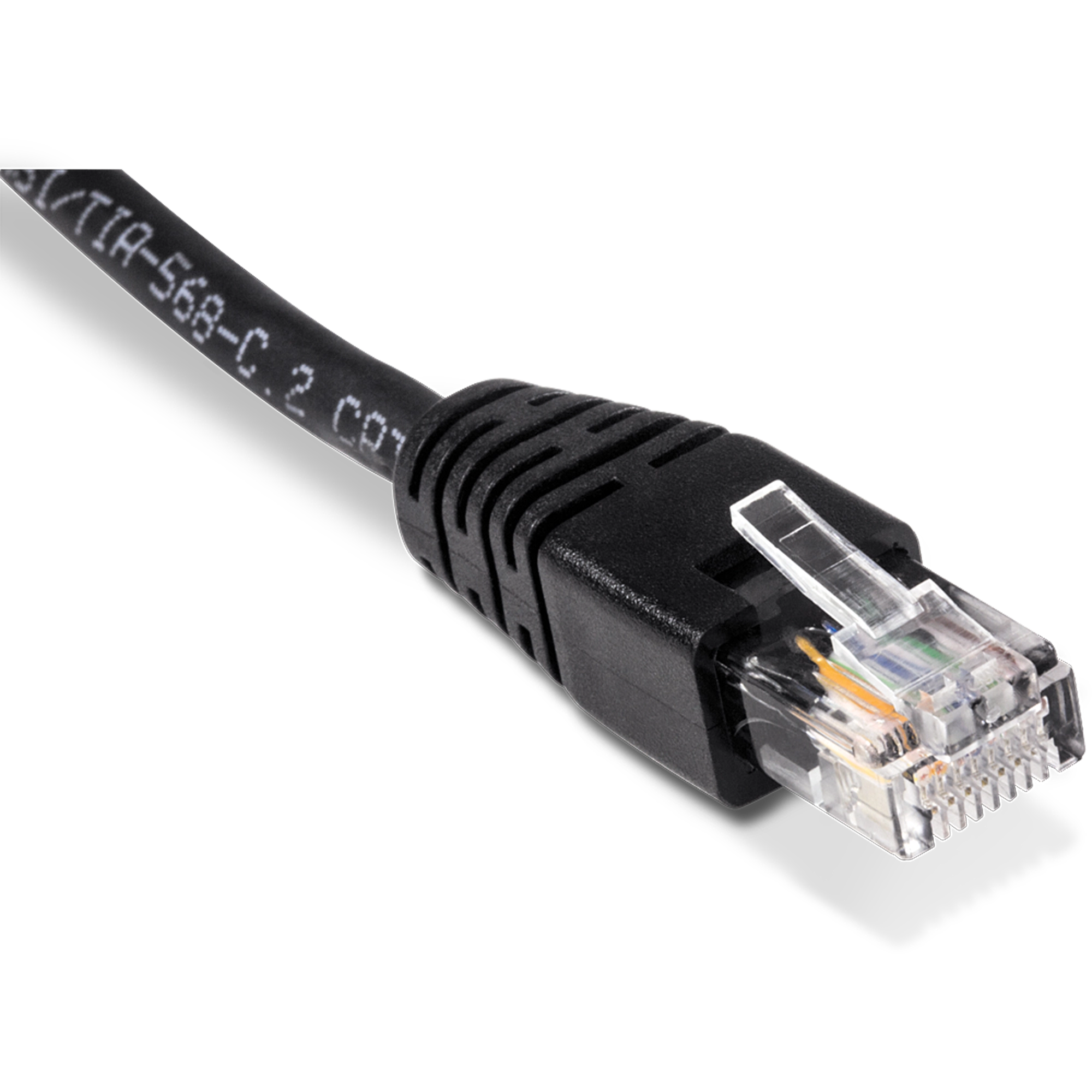

  • 1 x RJ-45 cable interface
  • IP67 weather rated
  • 2m (6.5 ft.) cable length
Technical Specifications
Interface
  • 1 x M12 8-pin A-code male interface
  • 1 x RJ-45 network interface
  • IP67 rated
Features
  • Max. contact resistance: 20Ω
  • Min. insulation resistance: DC 200V 10ms 10MΩ
  • IP67 rating ensures protection from liquid moisture and fine particulates
  • PUR jacket resists oil and other contaminants
Operating Temperature
  • -25° – 80° C (-13° – 176° F)
Operating Humidity
  • Max. 90 % non-condensing
Length
  • 2m (6.5 ft.)
Weight
  • 112g (4 oz.)
Warranty
  • 1 year
Name
Description
Size
Downloads
File
Datasheet
1mb
