ELK - M1EZ8KB - M1EZ8 Kit with Enclosure and M1KP Keypad

Part number:
M1EZ8KB
Price:

• Security and safety: M1EZ8 provides peace of mind thanks to its comprehensive detection and reporting capabilities, which protect what matters most. Easy system expansion and support for wireless sensors ensure that the M1EZ8 is the right fit today and in the future.
• Flexible and integration-friendly: Choose a system with smart features such as occupancy detection and environmental monitoring, as well as a built-in astronomical clock, to manage lights, thermostats, water valves, garage doors, gates, and more.
• Convenient interfaces: With timely access to information and simple, user-friendly interfaces, the M1EZ8 system keeps you informed and in control. It’s easy to access the system from anywhere using popular smart devices. No monthly fees required.

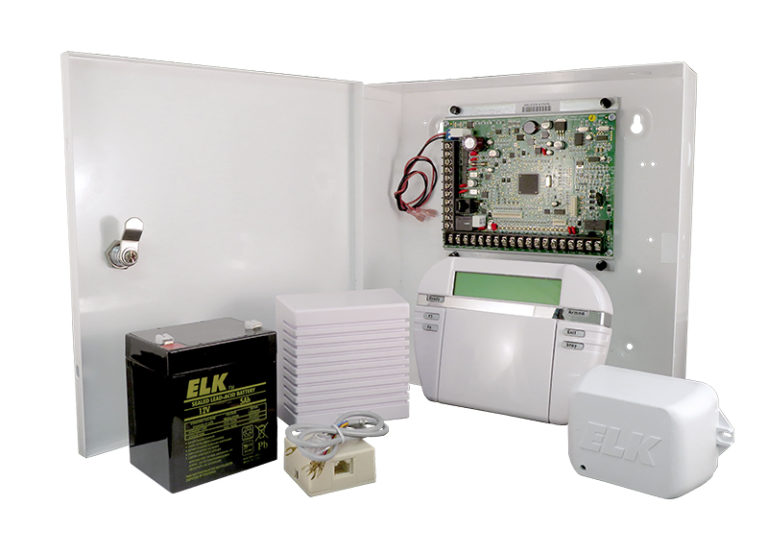

• Included: M1EZ8 Security and Automation Control Board, 2 Attached Mounting Rails w/4 Richco Fasteners, 12” x 12” x 3.5” Metal Lockable Enclosure, ELK-TRG1640 40va 16.5Vac transformer, ELK-1250 12V 5Ah Sealed Lead Acid Battery, ELK-M1KP keypad, ELK-RJSET RJ31X, ELK-SP35 20 Watt Wall Mount Speaker, 1 each Multicolor Label and Quick Reference Label, 4 #6 Flat head Phillips Sheet Metal Screws, 6 Gel Filled B-Connectors, 3 Mini Jumpers, 2 820 Ohm Resistors, 19 2200 Ohm Resistors, 2 8/32 Shoulder Screws, Output Wiring Harness - 12 Conductor Cable Assembly, Hookup Label, Instructions, User Guide

Large zone capacity8 on-board zones expandable to 200
Wireless capabilityUp to 144 zones; supports multiple wireless receivers for increased coverage area
12 On-Board Outputs1 siren driver/voltage, 1 form “C” Relay, and 10 low current (10 mA) voltage outputs
Name
Description
Size
Downloads
File
Datasheet
0.6mb
File
Manual
1.7mb
