Trendnet - TEW-LB101 - Magnetic Dual Antenna Mounting Base RP-SMA Female with RP-SMA MaleExtension Cable
Part number:
TEW-LB101
Price:

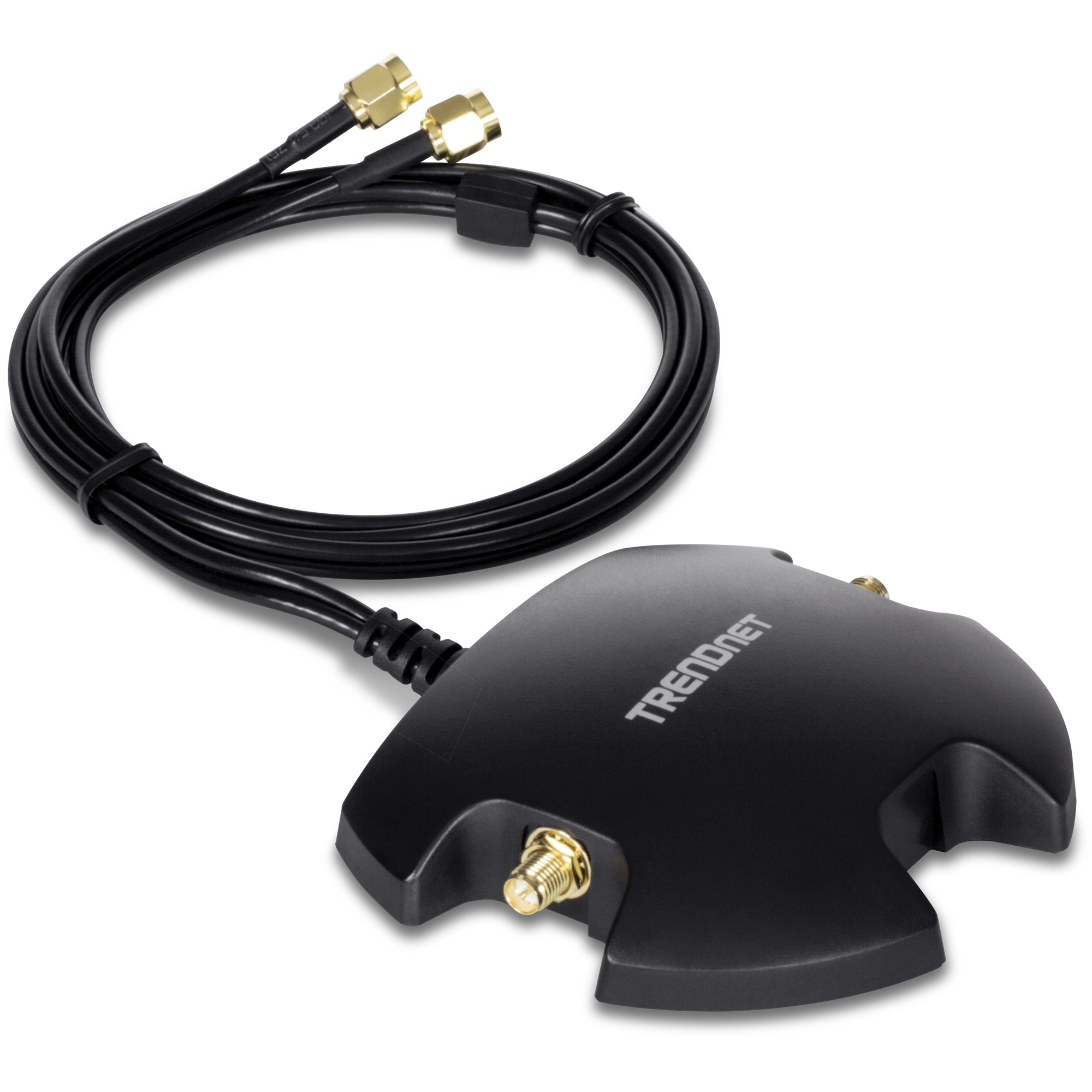

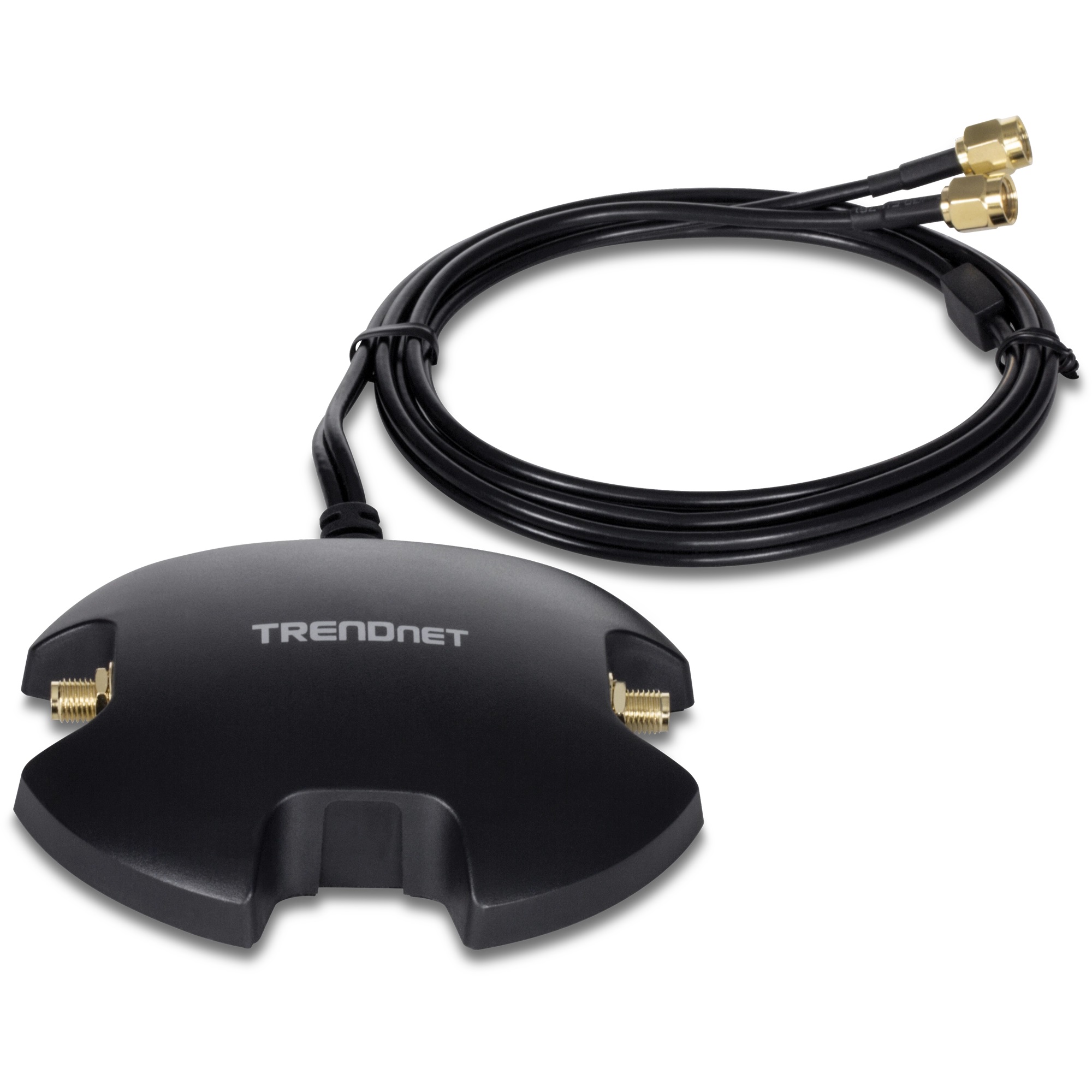

TRENDnet’s Dual Antenna Magnetic Mounting Base RP-SMA Female with RP-SMA Male Extension Cable, model TEW-LB101, extends two wireless antennas up to 1m (3.3 ft.) and can be used with wireless routers, access points, and wireless network adapters that use detachable RP-SMA antennas. The magnetic mounting base provides convenient placement and positioning of antennas to attain optimal signal range.



Features:

  • Extends two wireless antennas up to 1m (3.3 ft.)
  • Magnetic base allows for easy mounting, positioning, and optimal placement of antennas
  • Compatible with 2.4GHz or 5GHz directional and omni-directional RP-SMA detachable antennas
  • NDAA / TAA compliant (U.S. and Canada only)
Connector

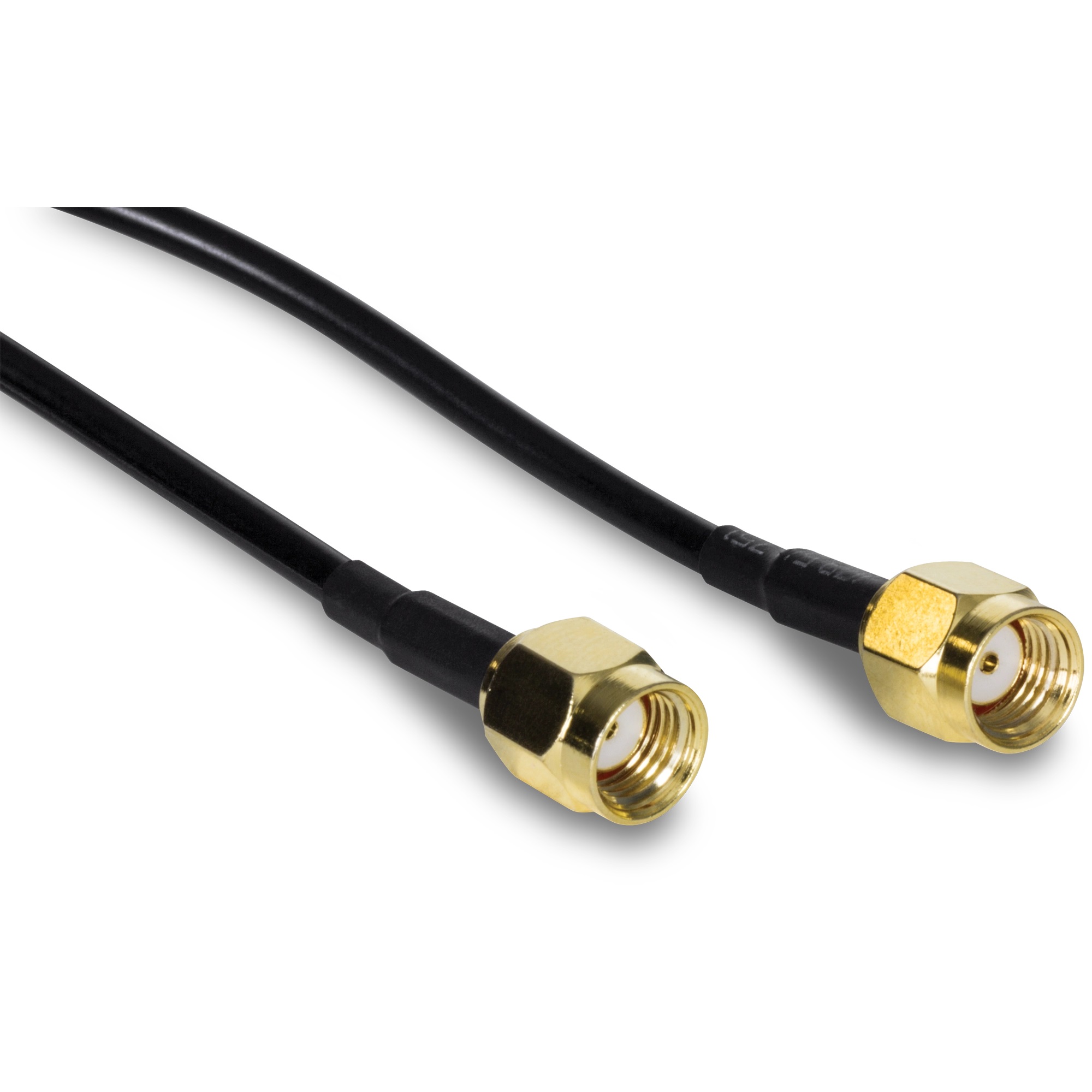

  • 2 x RP-SMA male connectors (magnetic base) to RP-SMA female connectors (cable)
Cable Length
  • 1m (3.3 ft)
Cable Loss
  • Max 3dB
Dimension
  • Base: 91 x 19 x 78mm (3.58 x 0.74 x 3.07 in.)
  • Cable: 1m (3.3ft.)
Weight
  • Base + Cable: 114g (4 oz.)
  • Base only: 71.1g (2.5 oz.)
Operating Temperature
  • 0° – 55° C (32° – 131° F)
Operating Humidity
  • Max. 95% non-condensing
Antenna Base
  • Magnetic antenna base
Warranty
  • 2 years
