Magdaddy - PCBM1903F - Magnetic Standoff Kit: 10lb Magnetic Mount w/ 5/8" Nylon Hex Spacers, Pack of 12
Part number:
PCBM1903F
Price:
Product Overview

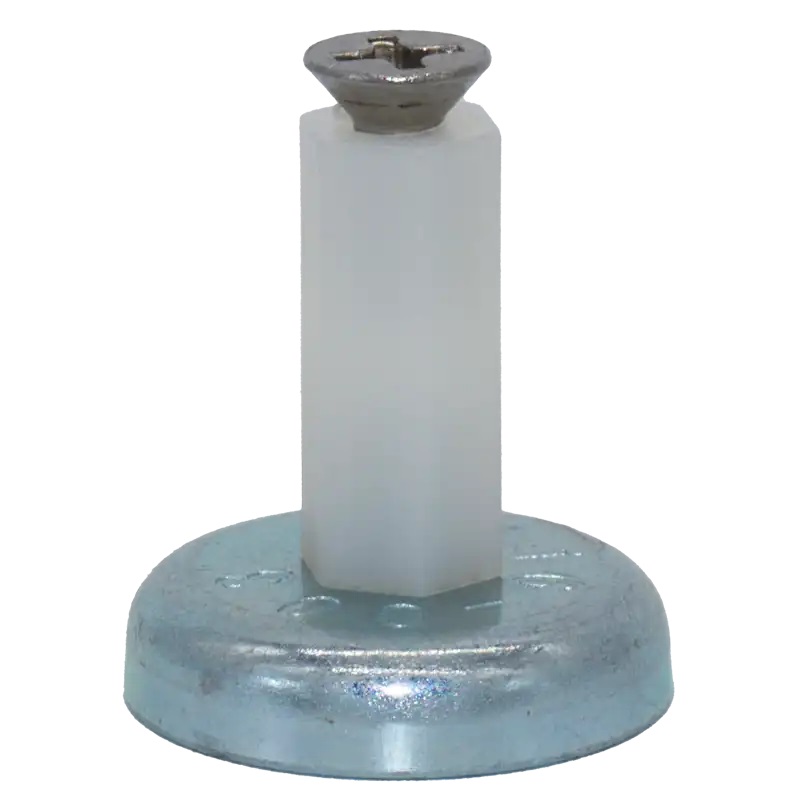

The Magdaddy Magnetic Standoff Kit is a pack of 12 magnetic mounting assemblies featuring 10 lb neodymium magnet mounts with 5/8" nylon hex spacers. Each kit includes 12 magnetic mounts, 12 nylon hex spacers (6-32 tapped, 0.625" long), and 24 thread-cutting 6-32 x 3/8" Phillips flat head screws 100°.
Key Configuration
• Kit quantity: 12 complete standoff assemblies
• Magnet: 10 lb N35M 3/4" (19mm) magnet mount, 0.193" (4.9mm) hole size
• Spacer: HST64-10, 6-32 tapped x 0.625" (15.9mm) long, nylon hex spacer
• Screw: 6-32 x 3/8" Phillips flat head, thread cutting, 100° countersink
• Magnet pull strength: 10 lbs (tested)
| Component type | Magnetic PCB standoff / mounting kit |
| MPN | PCBM1903F |
| Package | 12 standoff assemblies per pack |
| Magnet | Low-profile neodymium (NdFeB) matrix |
| Pull force | 10 lbs (≈4.5 kg) per magnet |
| Spacer | 5/8" non-conductive nylon hex standoff |
| Mounting | Pre-threaded design for standard PCB holes |

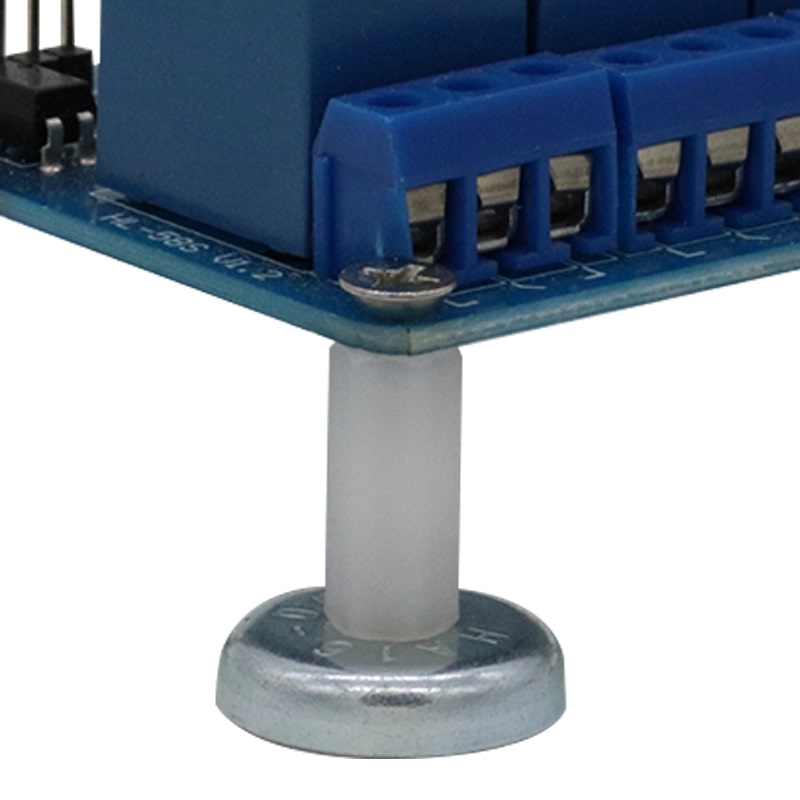

| Function | Electrically isolates the PCB from the metal backplane |
