CYBERPOWER - MBS175D5B - CyberPower Maintenance Bypass Switch 50KA 208V 3-Phase 175A for 3-Phase UPS SM040KAMFA
Part number:
MBS175D5B
Price:

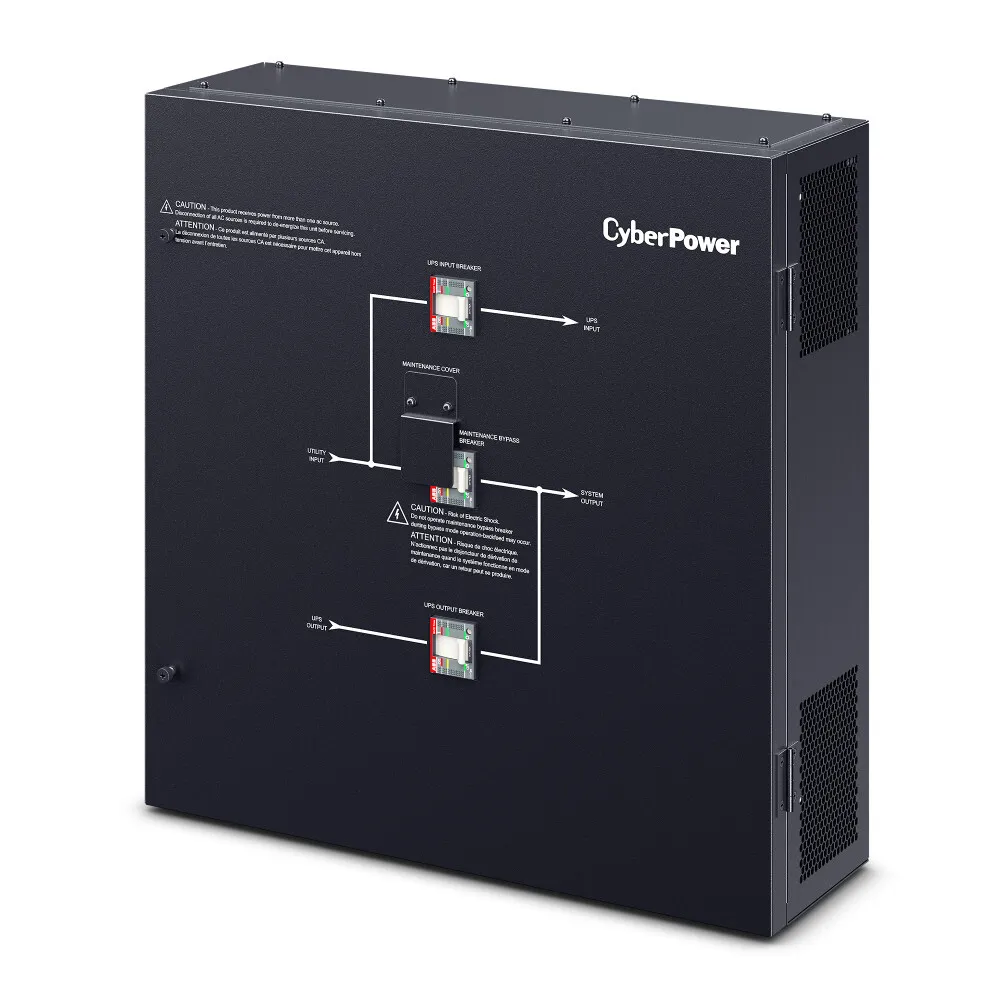

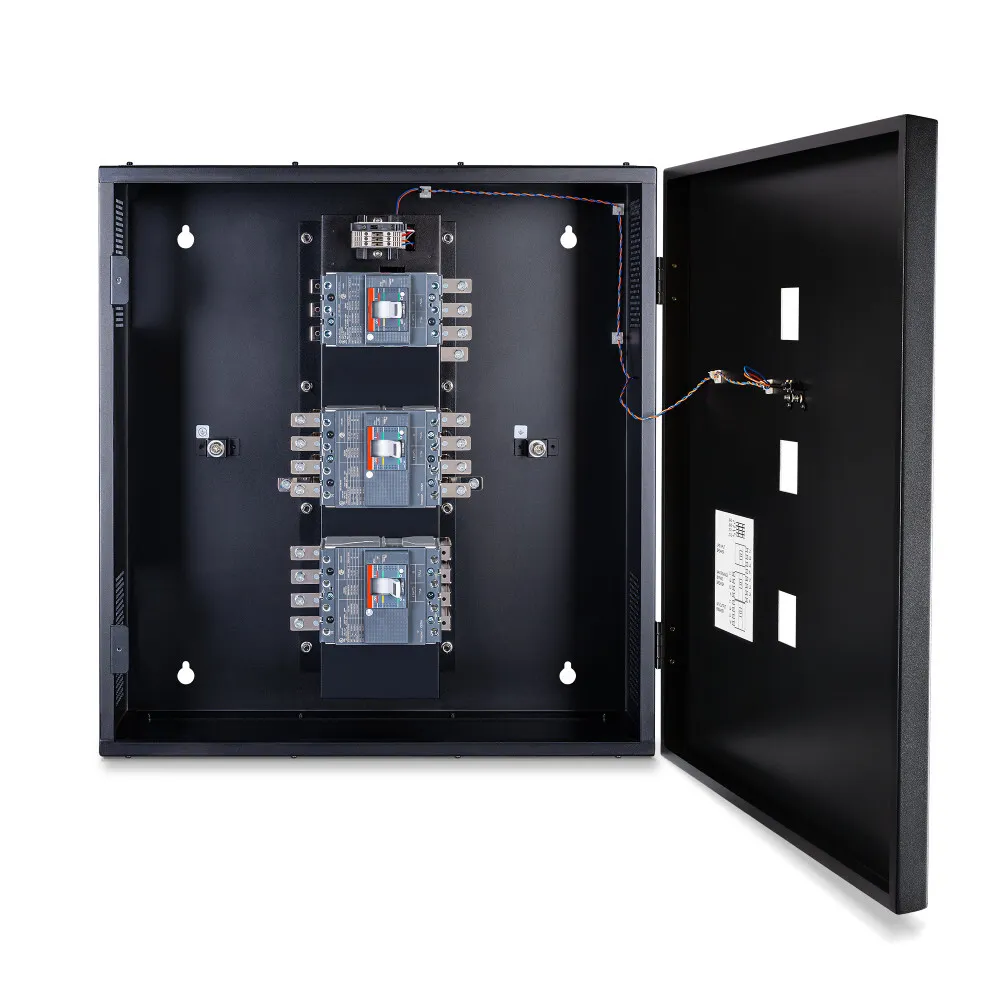

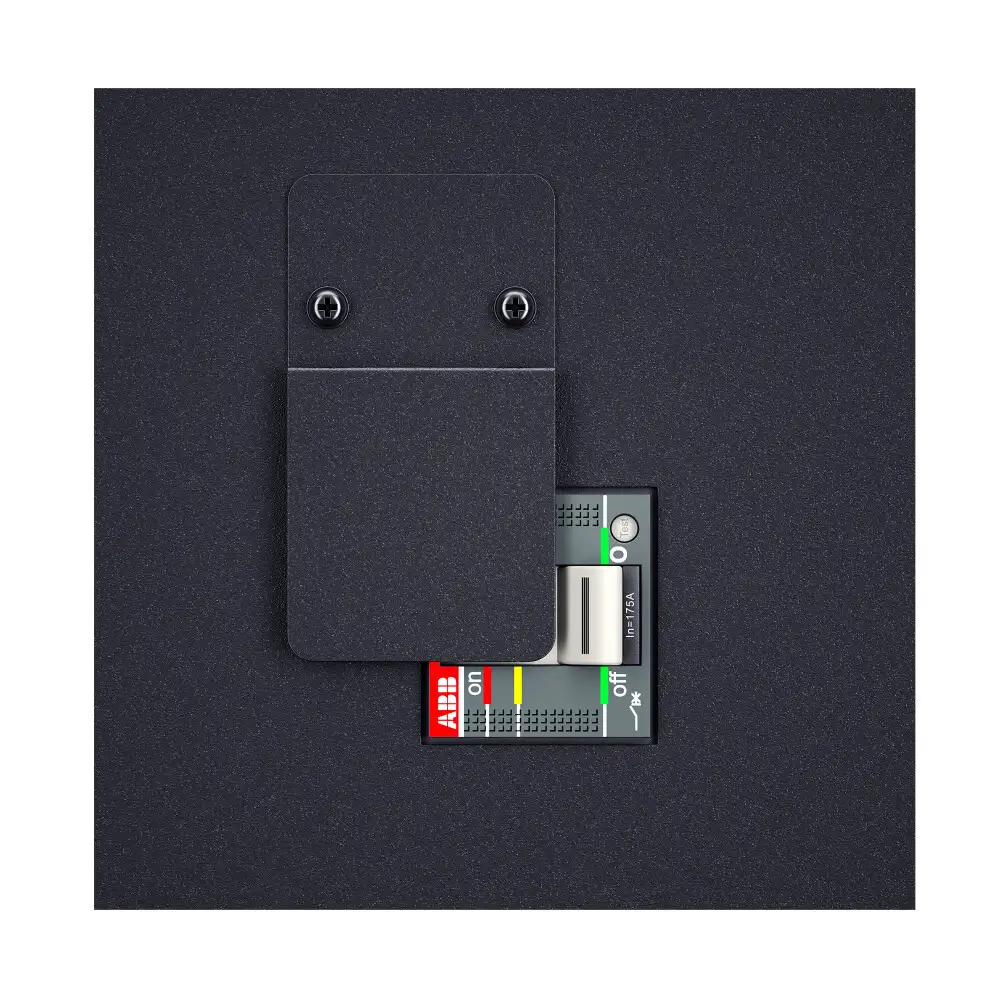

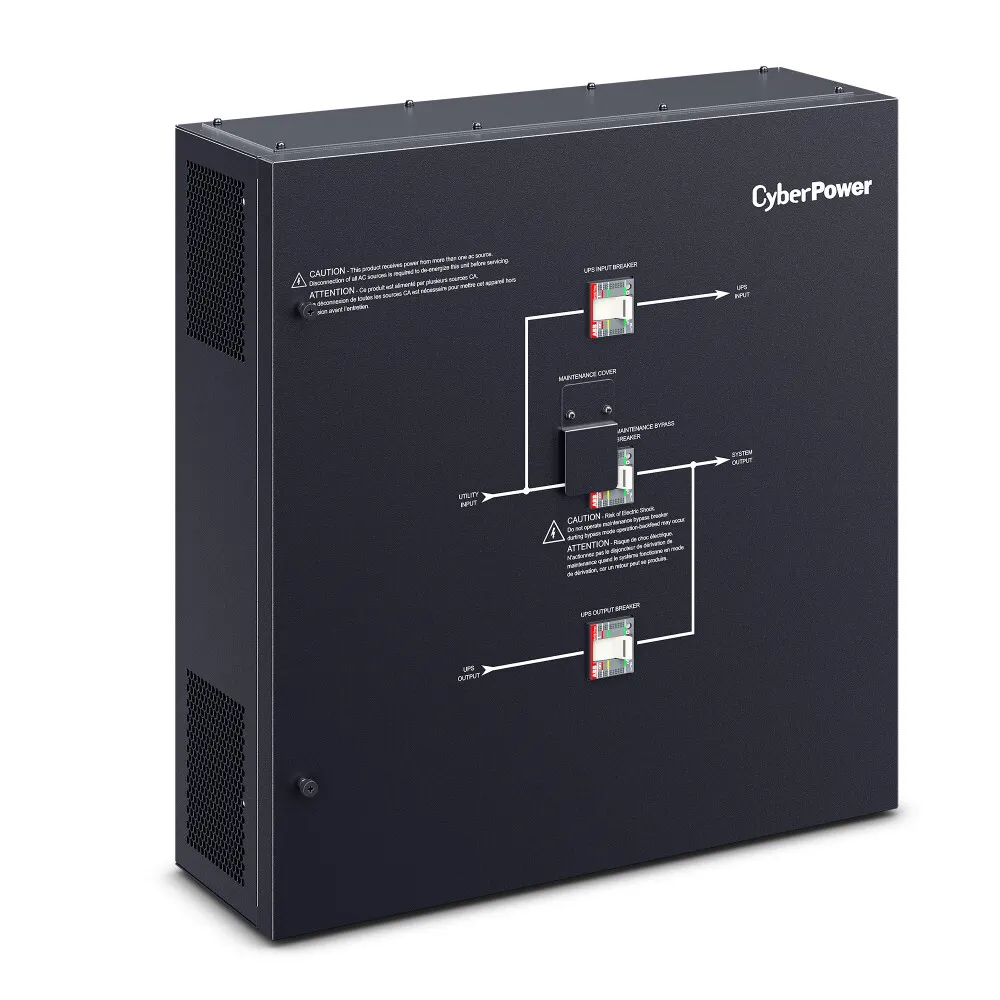

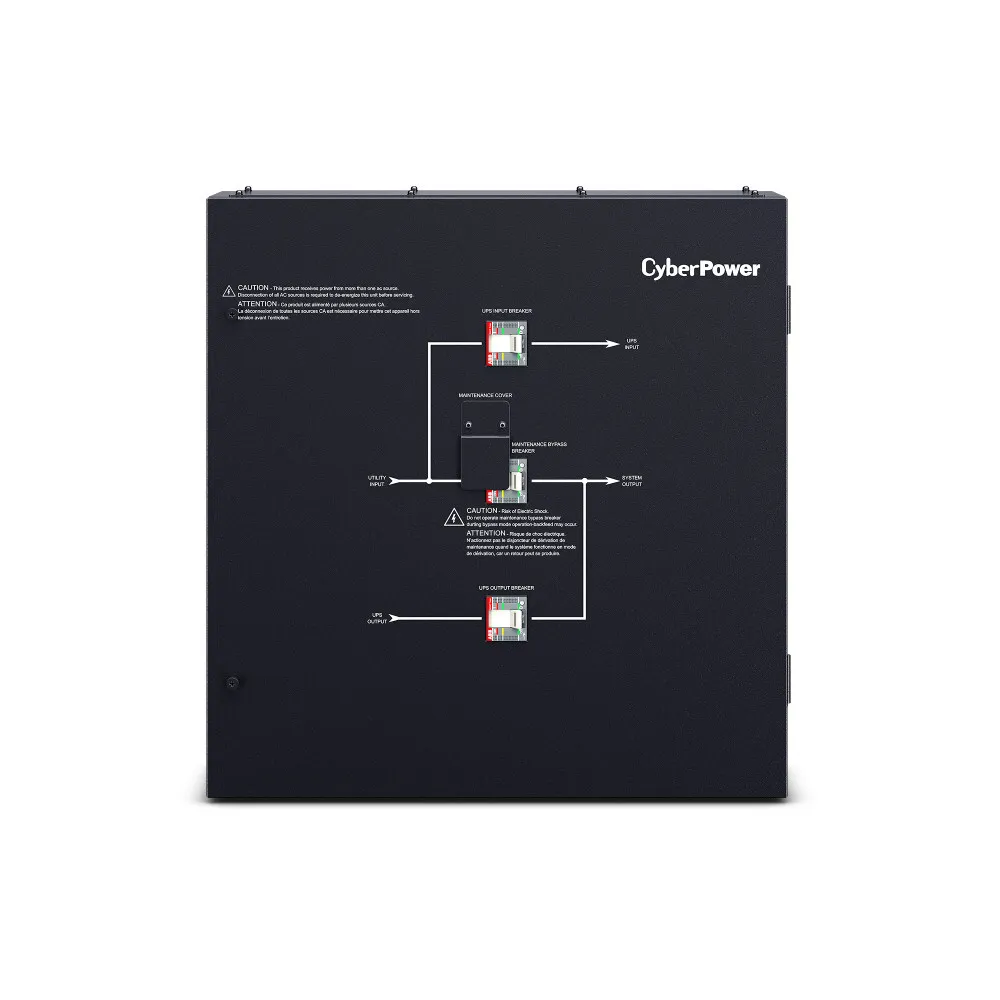

The CyberPower MBS175D5B 3-Phase Maintenance Bypass Switch provides convenience and safety for maintenance bypass applications. Maintenance bypass panel for complete isolation of the UPS during service operations. Includes a One-Year Limited Warranty.
For Cyberpower Smart App Online 3-Phase Modular UPS system SM040KAMFA.

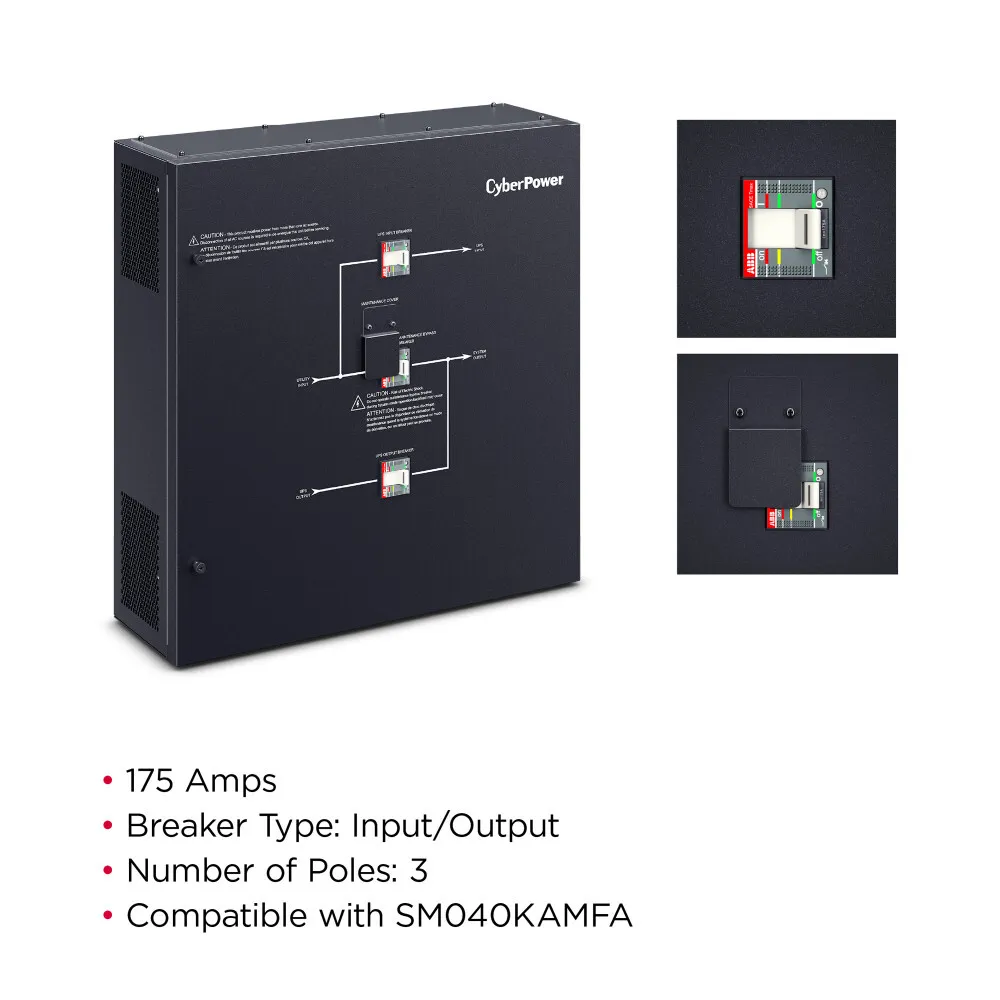

Features:

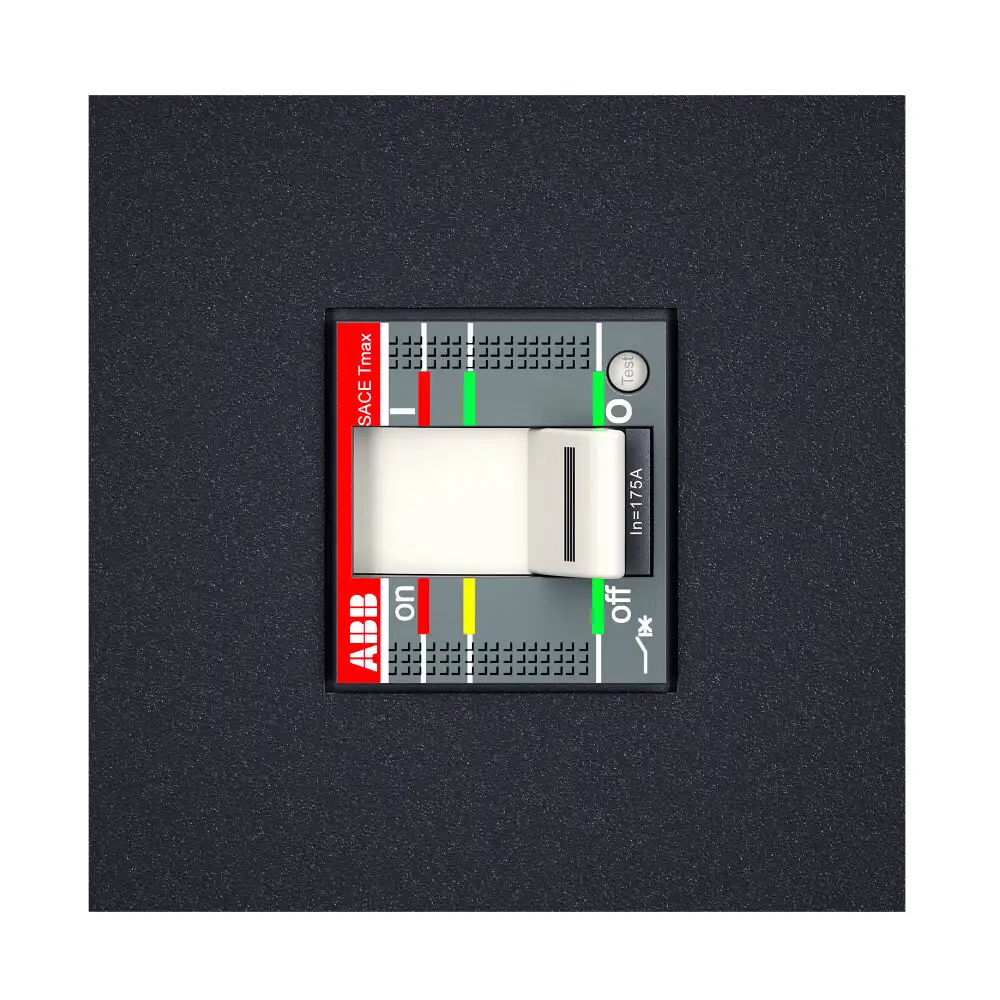

- Amperage:175 A

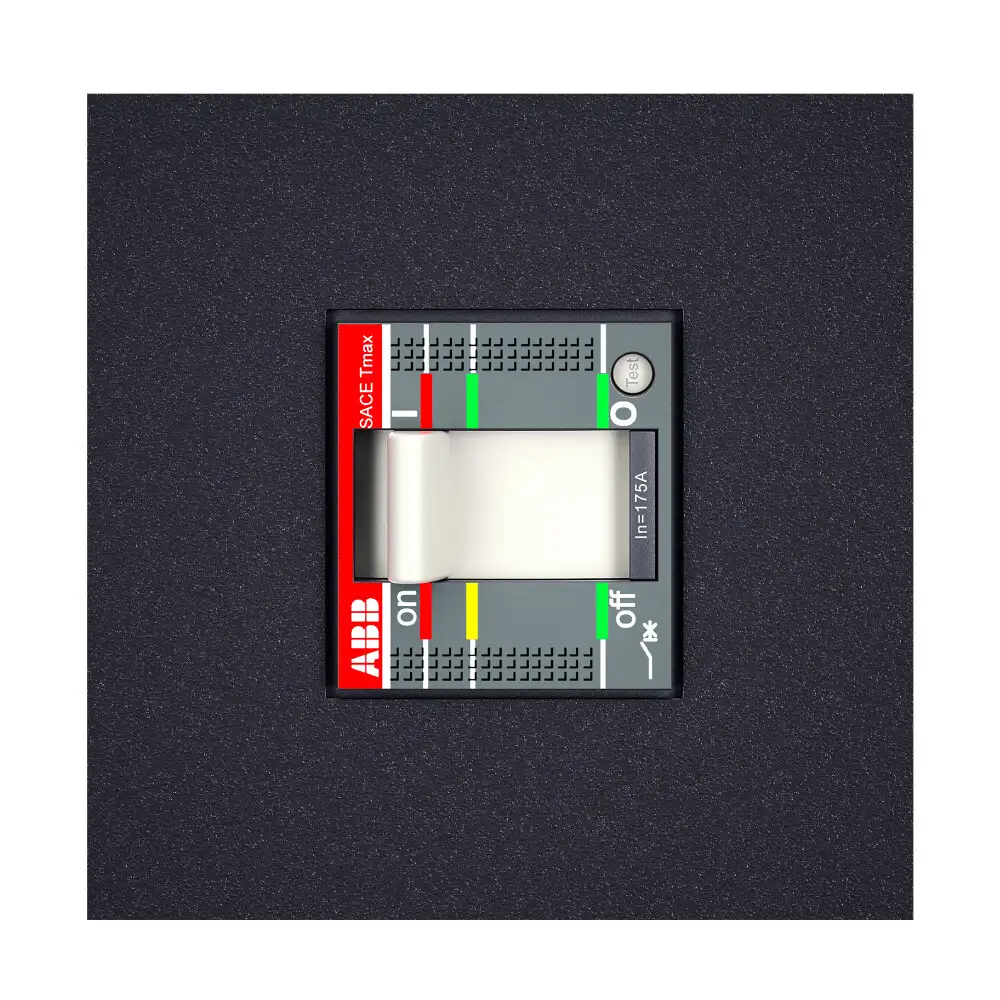

- Breaker Type:Input/Output
- Number of Poles:3
- Warranty:1 year
| Physical | |
| Color | Black |
| Material of Construction | Metal |
| Mounting Hardware | Yes |
| Dimensions | |

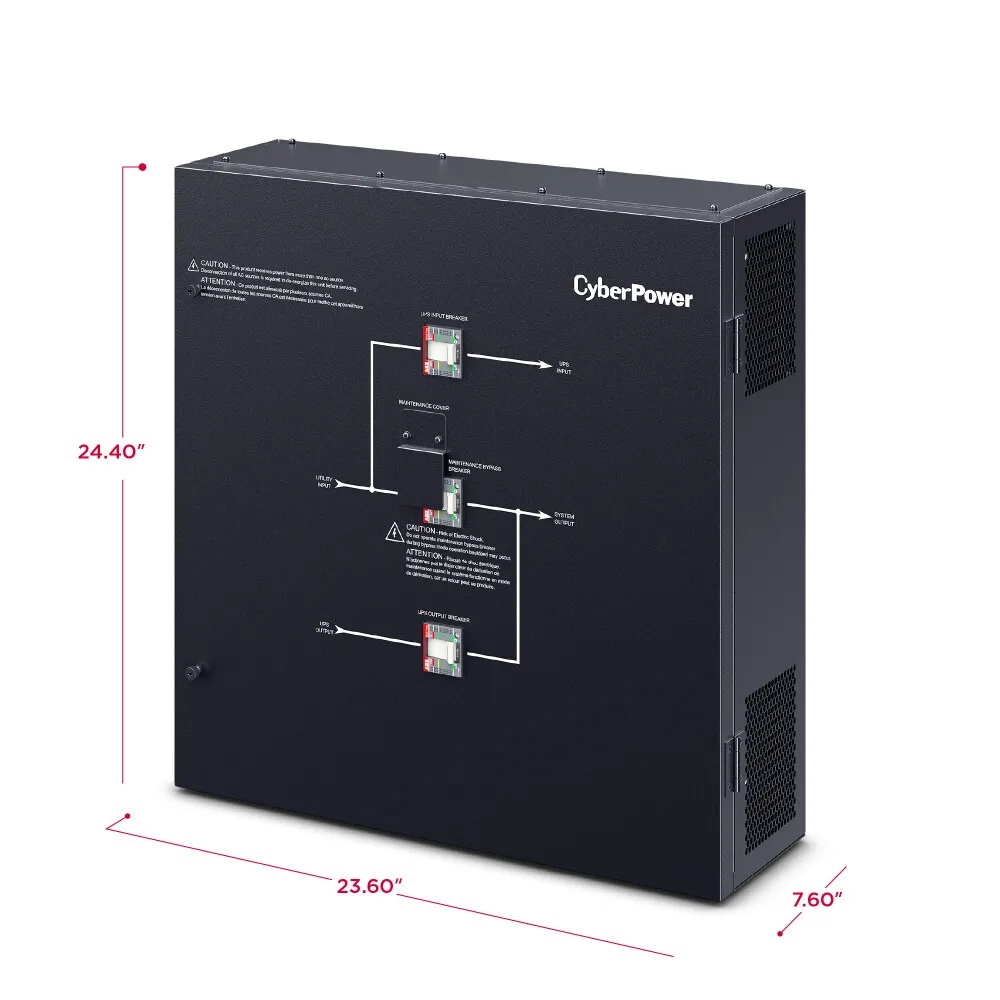

| Physical Dimensions – (WxHxD) (cm) | 59.94 x 61.98 x 19.3 (cm) |
| Physical Dimensions – (WxHxD) (in) | 23.6 x 24.4 x 7.6 (in) |
| Physical Dimensions – (WxHxD) (mm) | 599 x 620 x 193 (mm) |
| Physical Weight (kg) | 25.5 |
| Physical Weight (lb) | 56.21 |
| Dimensions – Shipping | |
| Shipping – Weight (kg) | 27.62 |
| Shipping – Weight (lb) | 60.9 |
| Shipping Dimensions – (WxHxD) (cm) | 74.61 x 29.21 x 68.58 (cm) |
| Shipping Dimensions – (WxHxD) (in) | 29.375 x 11.5 x 27 (in) |
| Shipping Dimensions – (WxHxD) (mm) | 746.13 x 292.1 x 685.8 (mm) |
| Environmental | |
| Operating Elevation | 0 – 10000 ft (0 – 3048 m) |
| Operating Elevation Note | At ≤1000m above sea level, de-rate power by 1% per 100m between 1000m and 3048m |
| Operating Relative Humidity | 0 – 95 % (non-condensing) |
| Operating Temperature | 32 – 104 °F (0 – 40 °C) |
| Operating Temperature Note | Battery life is halved for every 10°C increase above 20°C |
| Storage Battery Temperature Note | Optimum battery storage between -15°C and 20°C |
| Storage Relative Humidity | 0 – 95% (non-condensing) |
| Storage Temperature | 32 – 104 °F (0 – 40 °C) |
| Certifications | |
| Environmental | RoHS Compliant |
| Safety | UL1778, CSA C22.2 No. 107.3-14 |
| Warranty | |
| Product Warranty | 1 Year Limited Warranty |
