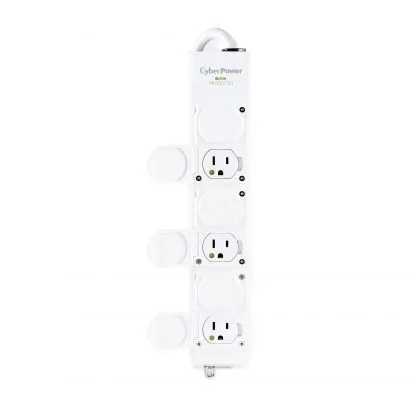

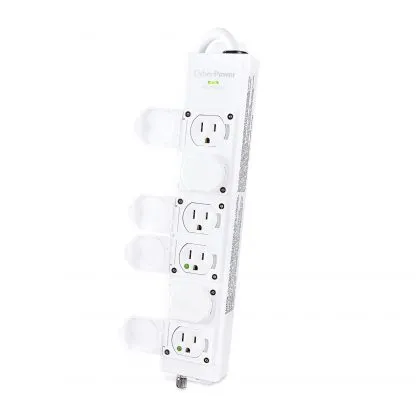

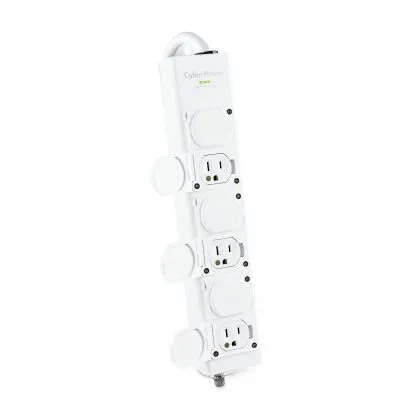

Cyber Power - MPV615S - Medical Grade Surge Protector, 6-outlet, 1560 Joules with 15' Cord
Part number:
MPV615S
Price:

The CyberPower MPV615S Medical Grade Surge Protector delivers vital surge protection for use in hospitals, clinics, group practices, private practices, laboratory or other medical facilities, allowed for use within six feet of a patient for non-critical care applications. The surge protection prevents spikes in energy caused by storms and electrical power surges from reaching sensitive medical equipment in hospitals and healthcare facilities. Designed for use in patient care vicinities, the MPV615S is UL2930 listed. The MPV615S provides 1560 joules of protection, has 6 medical grade outlets with safety covers, a 15 foot 12AWG power cord, and a heavy duty medical grade plug.



Additional features of the MPV615S include automatic shutdown, fireproof metal oxide varistor (MOV) technology, an EMI/RFI noise filter, keyhole mounting slots, and impact-resistant casing. This surge protector comes with a Limited Lifetime Warranty and a $150,000 Connected Equipment Guarantee.

NOTE: The CyberPower MPV615S surge protector is not intended for use in critical care or life support applications.



Features:

  • Surge Protection
    Diverts excess voltage away from sensitive electronic equipment during an AC power surge or power spike to prevent damage.
  • UL2930 Listed
    Tested for use with medical equipment meeting UL60601-1 requirements necessary for use in patient-care environments.
  • Hospital-Grade Plugs & Outlets, Outlet Covers
    Offer an added degree of safety and reliability to the input/output connections of hospital-grade equipment.
  • Fireproof Metal Oxide Varistor (MOV) Technology
    Allows normal current to pass through the device, while diverting any surges/spikes through the ground circuit, to safeguard connected electronics and the surge suppressor.
  • Protected LED Status Indicator
    Visible signal that shows the unit is operating properly
  • EMI/RFI Noise Filter
    Maintains clean power for connected equipment by filtering out electromagnetic and radio frequency interference.
  • Keyhole Slots and External Mounting Points
    Enable the unit to be mounted securely to a cart or post, as well as other locations to optimize space and safely keep power cords out of the way.
  • Impact-Resistant Casing
    Ensures maximum durability and prolongs the life of the model.
  • Connected Equipment Guarantee
    CyberPower will repair or replace properly connected equipment if it is damaged by a power surge.
  • Limited Lifetime Warranty
    Covers defects in materials and workmanship in the product under normal use and conditions. See warranty for details.
Input
Circuit BreakerNone
Cord Length15 ft (4.6 m)
Input Plug TypeNEMA 5-15P-HG
Input Voltage Range100 VAC – 125 VAC
Maximum Input Current15A
Output
Outlet Type6 – NEMA 5-15R-HG
Outlets – Total6
USB Charge PortNo
Surge Protection & Filtering
Attenuation58 dB
Clamping Voltage600V (H-N)
EMI/RFI Filtration150 KHz
100 MHz
Yes
Maximum Surge Current45000 A
Maximum Surge Current H-GN/A
Maximum Surge Current H-N45000 A
Maximum Surge Current N-GN/A
Maximum Surge Voltage6000 V
Surge Suppression (Joules)1560 J
Management & Communications
LED IndicatorsProtected (green)
Physical
ColorWhite
Form FactorStrip
Form Factors SupportedHorizontal Mount in Variety of Other Applications
Material of ConstructionMetal
Safety CoversYes
Dimensions
Physical Dimensions – (WxHxD) (cm)6.3 x 3.71 x 30.99 (cm)
Physical Dimensions – (WxHxD) (in)2.48 x 1.46 x 12.2 (in)
Physical Dimensions – (WxHxD) (mm)63 x 37 x 310 (mm)
Physical Weight (kg)1.91
Physical Weight (lb)4.2
Dimensions – Shipping
Shipping – Weight (kg)7.75
Shipping – Weight (lb)17.09
Shipping Dimensions – (WxHxD) (cm)16.0 x 6.2 x 41.0 (cm)
Shipping Dimensions – (WxHxD) (in)6.3 x 2.44 x 16.14 (in)
Shipping Dimensions – (WxHxD) (mm)160.02 x 61.98 x 409.96 (mm)
Certifications
EnvironmentalRoHS Compliant
SafetyUL2930 Listed
UL1449
Warranty
CEG Amount$150000
Connected Equipment GuaranteeLifetime
Product WarrantyLimited Lifetime Warranty
