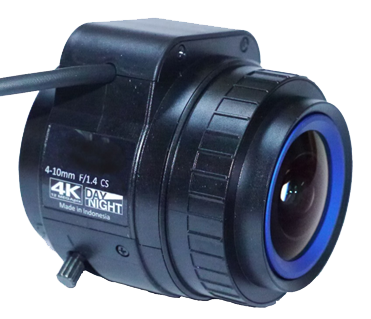

Hanwha - SLA-T-M410DN - Megapixel DC-Iris Lens
Part number:
SLA-T-M410DN
Price:
Megapixel Lens, image sensor from 1/2.3” up to 1/1.7“, Up to 12MP resolution, Vari-focal (4~10mm), DC auto iris, CS-Mount, Compatible with: XNB-6005/8000, PNB-A9001
Features:
- 4-10mm, DC iris lens
- Supports up to 12MP resolution
- Supports image sensors from 1/2.3" to1/1.17"
- Compatible with: XNB-6005, XNB-8000, & PNB-A9001
IMAGING
| Focal Length | 4-10mm |
| Resolution | True 4K, up to 12MP, check sensor size below |
| F-Stop | F/1.4 @ 4mm – F/2.4 @ 10mm to close |
| IR Correction | IR Corrected for true Day/Night operation |
| Lens length | <64mm TTL |
| Minimum Focal Distance | 0.5m - infinity |
| Iris Cable Length | 30cm |
| Lens Type | DC Auto Iris |
| Mount Type | CS Mount |
| Operating Temperature / Humidity | -20°C ~ +60°C (-4°F ~ +140°F) <70% humitity, non-condensing |
| Storage Temperature /Humidity | -30°C ~ +70°C (-22°F ~ +158°F) <90% humitity, non-condensing |
