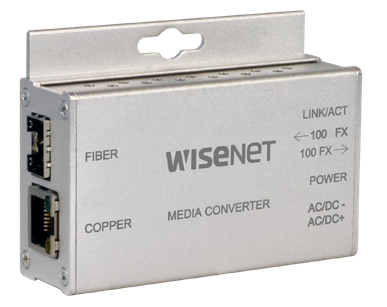

Hanwha - TMC-FSFPPoE30M - Mini 100M Media Converter

The TMC-FSFPPOE30M electrical-to-optical Ethernet media converter interfaces between 10/100/ Mbps electrical signal and a 100 Mbps optical output, selectable by dip switch. “Auto-Negotiating” is supported on the copper interface side. These devices use either one or two optical fibers, depending upon the selection of sold-separately SFP optical module. Provides up to 30W of PoE+ power to support connected devices such as Wisenet IP Cameras.

Features:

• Provides up to 30W of PoE+ power to support connected devices such as Wisenet IP Cameras.
• Full-duplex transmission of 10/100 Mbps Ethernet
• 10/100 BASE-TX electrical port
• 100BASE-FX optical port when used with suitable SFPs
• Bi-color LED status indicators confirm operating status
• Uses Wisenet SFPs (sold separately) for compatibility with a wide range of optical fibers, optical connector types, and optical transmission distances of up to 120 km
• Compatible with other converters in the TMC-FSFP series
• Power supply included
