PLANET - MGB-TLX - Mini GBIC LX Module 20km (-40 to 85 C), DDM Supported

Product Overview

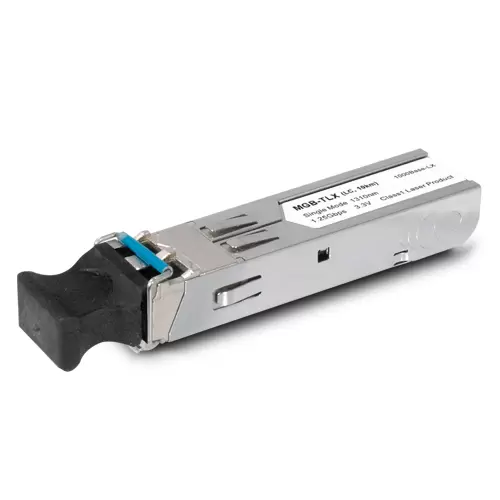

The Planet MGB-TLX is an extended temperature 1000BASE-LX SFP fiber transceiver operating over single-mode fiber with an LC connector, 1310nm wavelength, and a maximum distance of 20km. Supports Digital Diagnostic Monitoring (DDM) with an industrial-grade operating temperature range of -40°C to 75°C for harsh environment deployments.

Key Configuration

• • PHY Type: 1000BASE-LX
• • Fiber Type: Single Mode
• • Connector: LC
• • Wavelength: 1310nm
• • Maximum Distance: 20km
• • Operating Temperature: -40 ~ 75°C
• • DDM Support: Yes

Key Features

An extended temperature range (-40°C to 75°C) suits industrial environments, outdoor cabinets, and unheated enclosures. DDM (Digital Diagnostic Monitoring) enables real-time monitoring of optical parameters: output power, input power, temperature, laser bias current, and supply voltage. Hot-pluggable SFP form factor installs without interrupting host equipment. Designed for PLANET industrial SFP media converters, industrial switches, and third-party SFP-compatible equipment. Single-mode fiber operation up to 20km.
