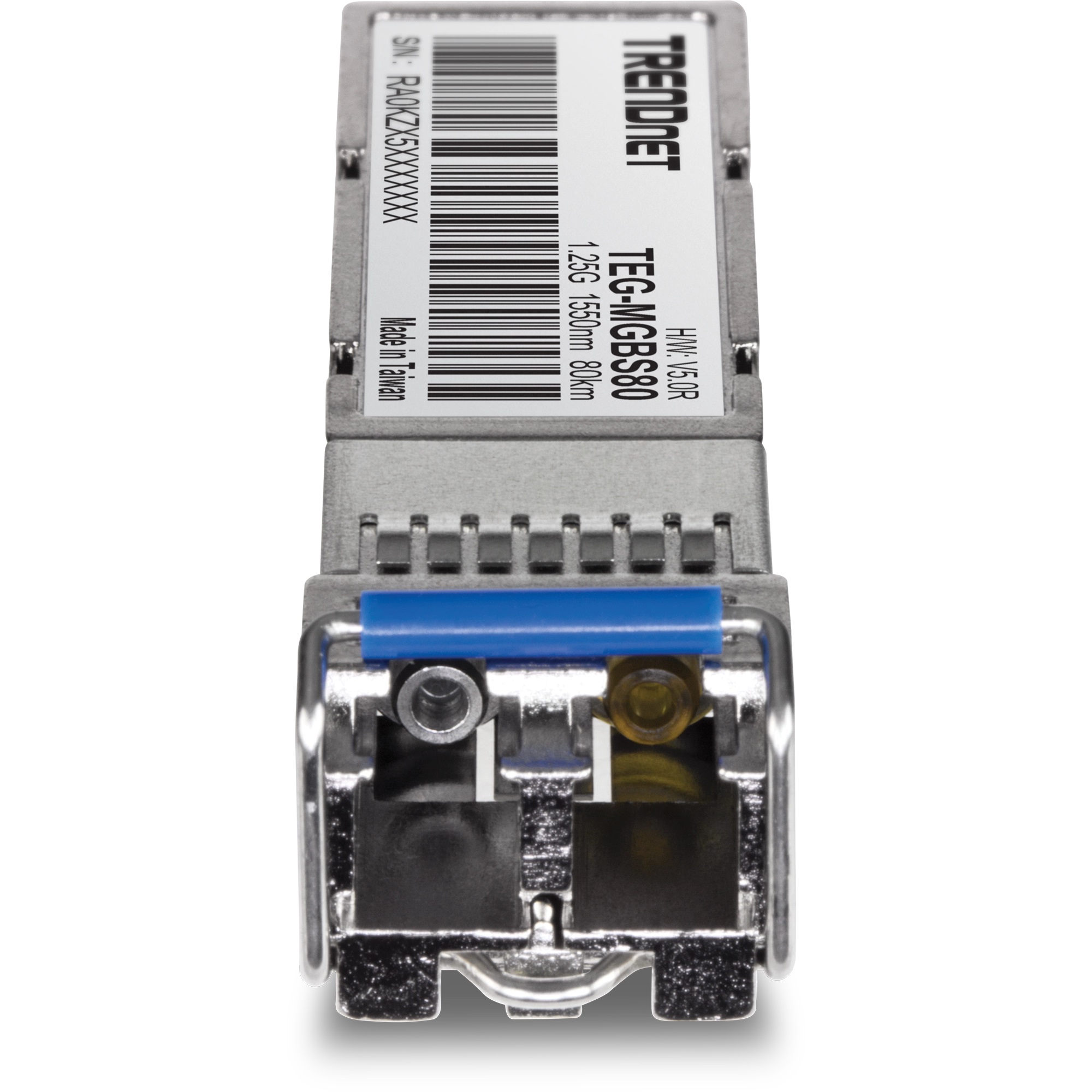

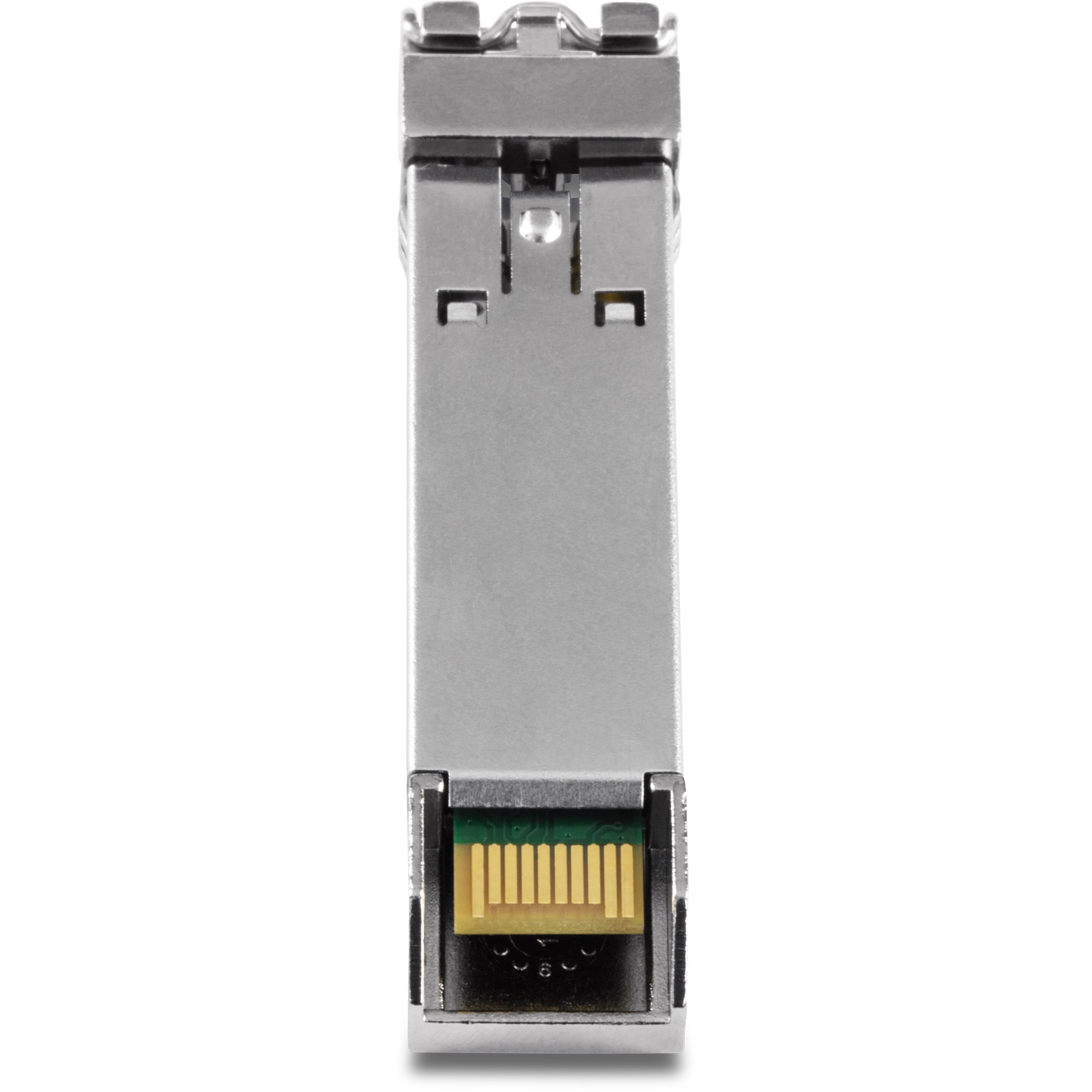

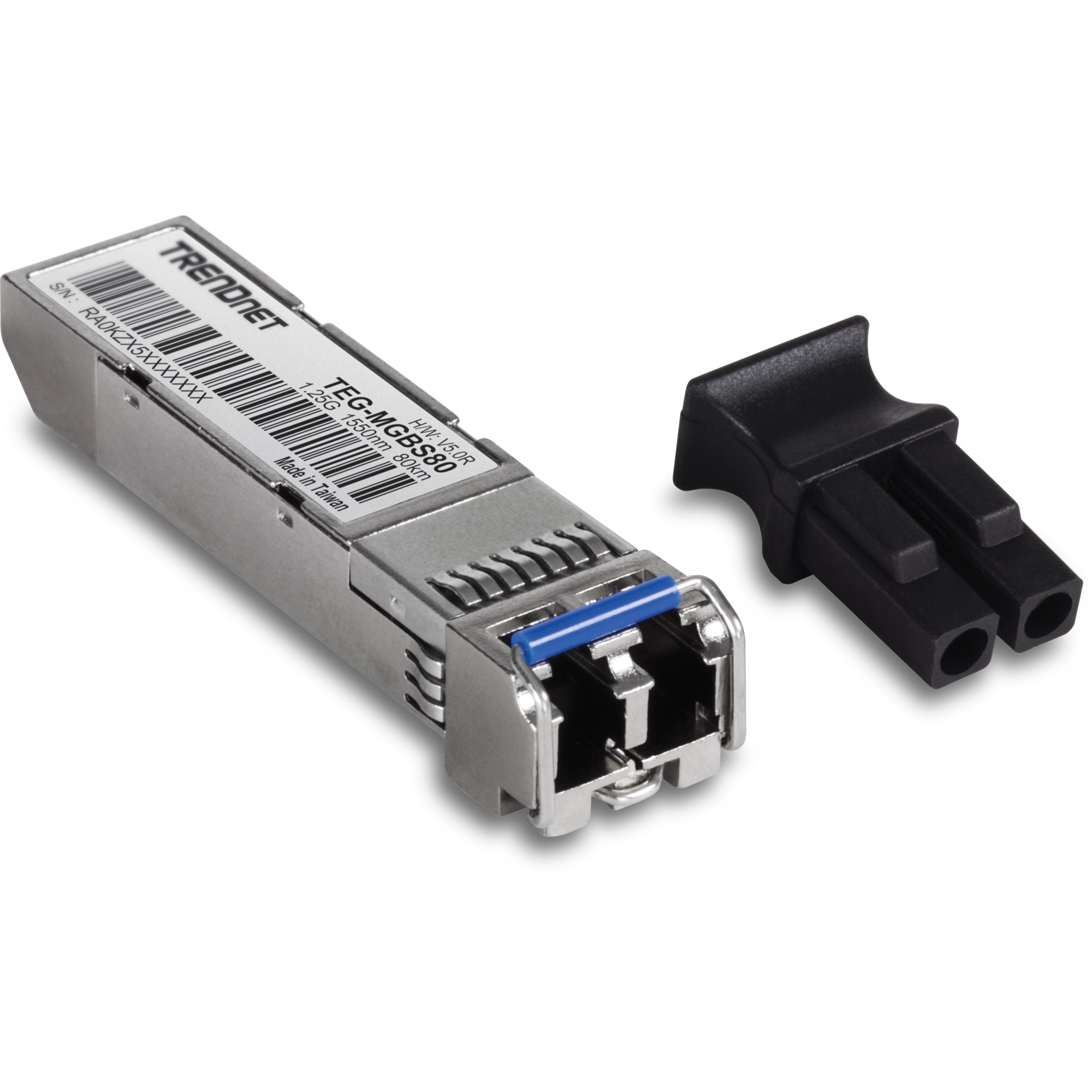

TRENDNET - TEG-MGBS80 - Mini GBIC Single-mode LX (70KM) Module
Part number:
TEG-MGBS80
Price:

TRENDnet’s SFP Single Mode LC Modules are compatible with standard SFP slots found on network switches and fiber converters. Each single mode SFP transceiver is equipped with a duplex LC fiber connection interface, and supports high-speed data rates up to 1.25Gbps. All TRENDnet SFP fiber modules support connections for reliable, long distance network applications.



Features:

  • Transmission distance of up to 80km (49.7 mi.)
  • Duplex LC optical interface
  • Supports data rates of up to 1.25Gbps
  • Supports 1550nm singlemode network transmissions
  • Low Electromagnetic Interference (EMI) design
  • Compliant with IEEE 802.3z Gigabit Ethernet
  • ANSI Fiber Channel compliant
  • Small Form-Factor Pluggable (SFP) and Multi-Source Agreement (MSA) compliant
  • Low power consumption
  • NDAA / TAA compliant (U.S. and Canada only)
  • Lifetime Warranty
Standards
  • IEEE 802.3
  • IEEE 802.3u
  • IEEE 802.3z
Device Interface
  • SFP MSA Compliant
  • LC duplex connector
Data Transfer Rate
  • 1.25Gbps
Wavelength
  • 1550nm
Optical Output Power
  • -2 ~ 3 dBm
Distance
  • 80km (49.7 mi)
Special Features
  • Hot pluggable
  • Metal enclosure
Sensitivity
  • -26 dBm
Power
  • Max. Consumption: 0.8W
Operating Temperature
  • 0° – 70° C (32° – 158° F)
Operating Humidity
  • Max. 95% non-condensing
Dimensions
  • 58 x 13.4 x 12.6mm (2.2 x 0.5 x 0.5 in.)
Weight
  • 18g (0.6 oz.)
Certifications
  • CE
  • FCC
Warranty
  • Lifetime Warranty*

PACKAGE CONTENTS

  • TEG-MGBS80
  • Quick Installation Guide
