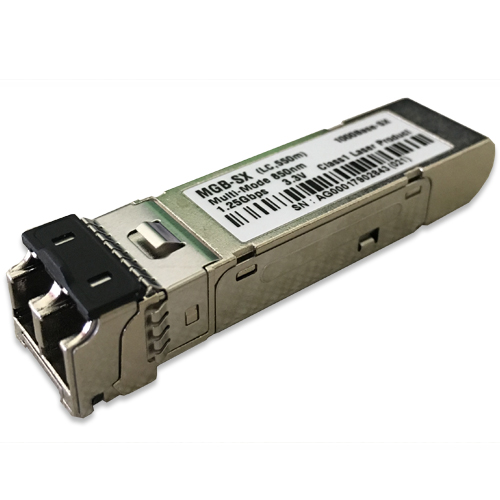

Planet - MGB-SX - Mini GBIC SX Module, DDM Supported
Part number:
MGB-SX
Price:

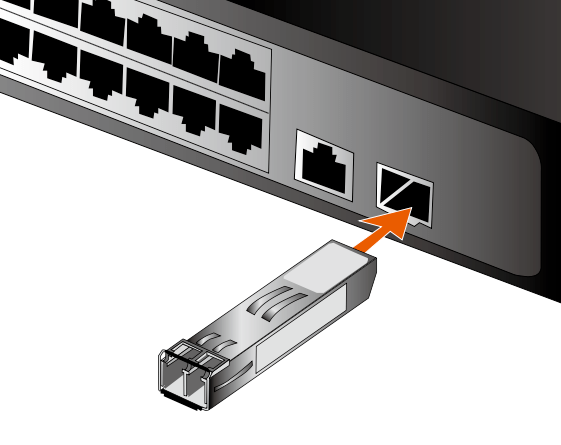

The PLANET MGB-SX is a hot-pluggable 1000Mbps Gigabit Ethernet SFP transceiver with DDM support, designed to provide reliable high-speed fiber connectivity through SFP MSA-compliant interfaces. Compatible with PLANET media converters, switches, and other SFP-enabled networking equipment, it enables easy installation or replacement without interrupting the operation of the host device.
Key Features:
- • PHY Type: 1000BASE-SX
- • Fiber Type: Multimodex
- • Connector: LC
- • Wavelength: 850nm
- • Maximum Distance: 550m
- • Operating Temperature: 0 ~ 60°C
| Model | MGB-SX |
| PHY Type | IEEE 802.3z 1000BASE-SX |
| Fiber Type | Multi-Mode |
| Connector | LC |
| DDM | Yes |
| Wavelength | 850nm |
| Maximum Distance | 550m |
| Operating Temperature | 0 ~ 60°C |
Name
Description
Size
Downloads
File
Datasheet
0.4mb
