Backup Versatility: Redefined

The EnterprisePlus LCD offers users more of what has made the series one of our best selling lines. New features include lower cost standard runtime models, an informative LCD Display, and additional outlets vs. previous models.

The EnterprisePlus LCD Series of UPSs offer complete protection from all electrical problems, including spikes, surges, sags, brownouts, and blackouts, in a versatile rack/tower convertible format. True sine wave electrical output ensures the best power for sensitive electronic equipment.

Output Power Factor All EnterprisePlus LCD models up to 1500VA come with a 0.8 power factor of which increases the watt capacity of the units. The 2000VA model has a 0.88 power factor and the 3000VA has a 0.853 power factor. Offering larger capacities in smaller UPS VA sizes reduces the overall cost of the UPS solution for a specific load requirement.

Output Voltage

All units in the EnterprisePlus LCD Series produce an electrical signal that does not vary from nominal voltage by more than 5%. Tightly regulating the output voltage increases the quality of power to connected equipment adding to its life expectancy, which lowers the total cost of ownership to users.

Total Harmonic Distortion (THD)

THD is the distortion of a normal AC electrical signal commonly causes UPS when connected loads near the capacity of the units. This distortion can cause internal heat to build up on sensitive equipment not designed to allow for these altered AC signals. The EnterprisePlus LCD UPS maintains an output AC signal, at all times and with linear loads, within 2% of a true sine wave.

Output Receptacle Control: The ability to extend the runtime of critical devices during an extended blackout is handled through the EnterprisePlus LCD’s load shedding function. Each model in the EnterprisePlus LCD UPS comes with two independently-circuited receptacle segments. Through the use of Minuteman’s SentryPlus software or communication with the UPS through an Ethernet connection, users can either turn on, off, or reset each segment independently of the other. By reducing the load amount on the UPS, the runtime of critical devices on the UPS battery can be extended.

Features:

Choose your runtime – EnterprisePlus LCD is available in Standard and Extended Runtime configurations

• Standard Runtime Models (RT2U) utilize only internal batteries and are available at a lower cost
• Extended Runtime Models (RTXL2U) feature the ability to add external battery packs for greatly increased runtimes
• 0.8 & greater power factor – get increased capacity without migrating to larger models
• Load shedding – two power banks allow equipment prioritizing for increased runtime
• Independent Battery Bypass – provides voltage regulation with surge and spike protection even when batteries are weak or dead.
• Virtually unlimited runtime with XL Models – no limitation on the number of external battery packs
• Alarm Silence button on front panel

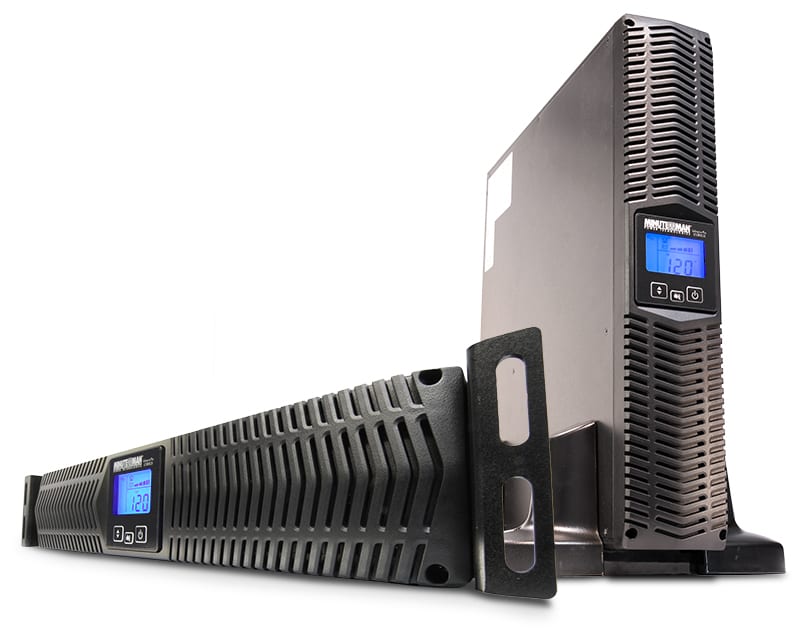

• Flexibility in installation – rack or tower configurable; wallmount kits available
• Small form factor – 3.5-inch (2U) rack/tower case
• Independent battery pack chargers – reduces battery recharge times for XL Models
• Simultaneous DB-9, USB and SNMP communications
• Minuteman SentryHD – UPS monitoring and control software included
• Easy to read LCD display – with load/battery meter
• Industry leading product protection – with 3-year non-prorated warranty (including batteries)
• Dedicated remote Emergency Power Off (EPO) port
• 120V & 208V – 208V models available (1500 & 3000VA models)
• RoHS 2 compliant
• Industry-leading 3-year non-prorated warranty
