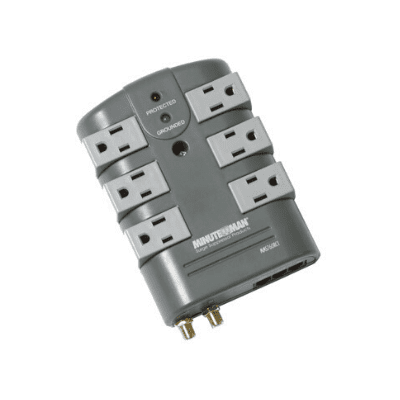

Minuteman 'R' models feature 90° or 180° rotating outlets which accomodate multiple transformer blocks, making wasted outlets a thing of the past. Select models also feature cord management provisions, allowing for organized clutterfree installation.
Features:
| MODEL | MMS760RCT |
| Electrical Rating | 15A, 120V, 1800 Watts |
| Joule Rating | 2160J |
| Outlet Quantity | 6 |
| Dimensions (L x W x H) inches | 6.26 x 4.25 x 2.52 |
| Rotating Outlets | 6 |
| Protection Type | Advanced X3 MOV |
| Mode | L-N, L-G, N-G |
| UL clamping voltage | 330V, 400V, 400V |
| Maximum peak current | 144,000A |
| Max spike voltage | 6KV |
| EMI/RFI noise filter | 150KHz-100MHz |
| Frequency Attenuation | Up to 40dB |
| Tel/Fax: | RJ11/6P2C (1in/2out) |
| Jack Type | 160J |
| Energy | 1 Line |
| Line Protection | |
| DSS/Coax: Surge Arrestor | Gas Tube |
| Breakdown Volts | > 75V |
| Insertion Loss | > 0.1dB |
| Line Protection | 1 Line |
| Surge protected indicator | Yes |
| Ground OK indicator | Yes |
| Surge circuit shutdown | Yes |
| Power safety shutdown (L-N) | Yes |
| Safety Approvals | UL 1449, UL 1363, cUL |
| Warranty | Limited Lifetime |
