Hanwha - SPM-4210 - Network I/O Box for PTZ Plus, 4-Configurable
Product Overview

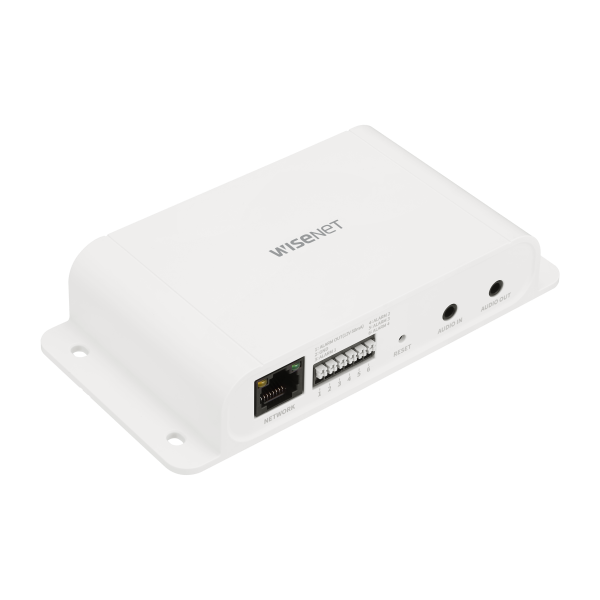

The Hanwha SPM-4210 is a Network I/O Box designed specifically for PTZ Plus cameras, providing four configurable I/O ports alongside an audio interface (1 input, 1 output). Powered via PoE (IEEE 802.3af, Class 3), the device streamlines installations by allowing alarm and audio peripherals to connect over the network, eliminating the need to run physical wiring directly to the camera's mounting location.
Key Configuration

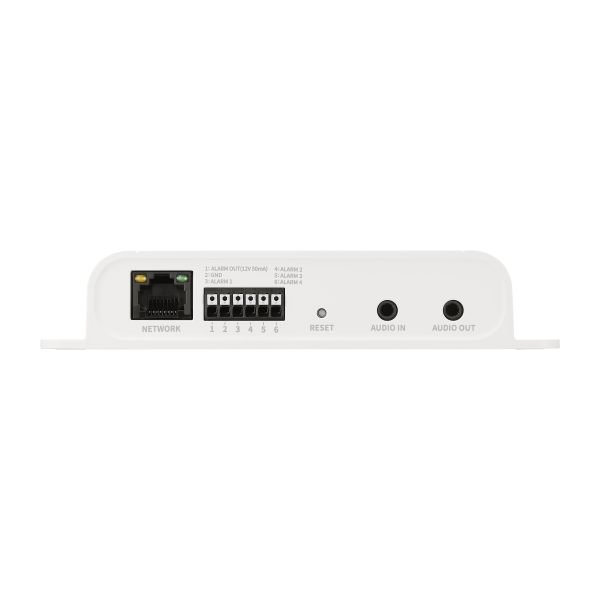

- • Alarm I/O: 4 configurable ports, 12 V DC output, max load 50 mA
- • Audio In: selectable (mic in/line in); Audio Out: line out, max output level 1Vrms
- • Ethernet: RJ-45 (10/100BASE-T); power: PoE (IEEE 802.3af, Class 3)
- • Dimensions: 143 × 73 × 27.3 mm (5.63" × 2.87" × 1.07"); weight: 171 g (0.38 lb)
- • Color: white (RAL9003)
Key Features
The network box features 4GB RAM and 256MB Flash memory, utilizing the SUNAPI (HTTP API) protocol for integration. It supports G.711 u-law, G.726, and AAC-LC audio compression formats and is compatible with Hanwha's XNP-9300RW/9250R/9250, XNP-8300RW/8250R/8250, XNP-6400RW/6400R/6400, and PNM-C12083RVD/C7083RVD/12082RVD/7082RVD camera series. Security protections include HTTPS/SSL and digest login authentication, IP address filtering, user access logging, 802.1X access control, and dedicated device certificates authenticated by the Hanwha Techwin Root CA.
Technical Context
Operating over a standard protocol suite including IPv4, IPv6, TCP/IP, UDP/IP, RTSP, and LLDP, this device features native web viewer support. It functions efficiently within an operating temperature range of -40°C to +60°C (-40°F to 140°F), requires a start-up temperature above -30°C under 95% non-condensing RH, and stores safely down to -50°C (-58°F). Maximum power consumption is rated at a low 4.5W.
Installation Notes
Measuring 143 × 73 × 27.3 mm (5.63" × 2.87" × 1.07") and weighing 171g (0.38 lb), this compact unit is engineered for select Hanwha PTZ Plus and multi-sensor camera lines. It simplifies system infrastructure by acting as a remote termination point, enabling full alarm and audio peripheral connectivity over the network without routing physical lines directly to the camera chassis.
| Operational | |
| Alarm I/O | Configurable 4 Ports |
| 12 V DC output, max load 50 mA | |
| Audio In | Selectable(mic in/line in) |
| Audio Out | Line out, Max.output level: 1Vrms |
| Network | |
| Ethernet | RJ-45(10/100BASE-T) |
| Audio Compression | G.711 u-law /G.726 Selectable |
| G.726(ADPCM) 8KHz, G.711 8KHz | |
| G.726: 16Kbps, 24Kbps, 32Kbps, 40Kbps | |
| AAC-LC: 48Kbps at 16KHz | |
| Protocol | IPv4, IPv6, TCP/IP, UDP/IP, RTP(UDP), RTP(TCP), RTCP,RTSP, NTP, HTTP, HTTPS, SSL/TLS, DHCP, ICMP, ARP, DNS, LLDP |
| Security | HTTPS(SSL) Login Authentication |
| Digest Login Authentication | |
| IP Address Filtering | |
| User access log | |
| 802.1X Authentication(EAP-TLS, EAP-LEAP) | |
| Device Certificate(Hanwha Techwin Root CA) | |
| Application Programming Interface | SUNAPI(HTTP API) |
| General | |
| Webpage Language | English, Korean, Chinese, French, Italian, Spanish, German, Japanese, Russian, Swedish, Portuguese, Czech, Polish, Turkish, Dutch, Hungarian, Greek |
| Web Viewer | Support |
| Memory | 4GB RAM, Flash 256MB |
| Environmental & Electrical | |
| Operating Temperature / Humidity | -40°C~+60°C(-40°F ~ +140°F) / Less than 95% RH(Non-condensing) |
| Start up should be done at above -30°C | |
| Storage Temperature / Humidity | -50°C~+60°C (-58°F~+140°F) / Less than 95% RH(Non-condensing) |
| Input Voltage | PoE(IEEE802.3af, Class3) |
| Power Consumption | Max. 4.5W |
| Mechanical | |
| Color / Material | White |
| RAL Code | RAL9003 |
| Product dimensions / weight | 143mm x 73mm x 27.3mm / 171g |
