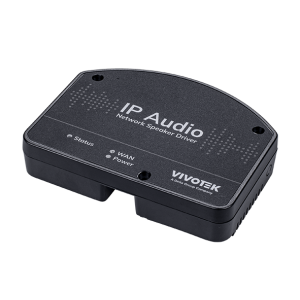

Vivotek - AU-002 - Network Speaker Driver
Part number:
AU-002
Price:
Network Speaker Driver.
Features:
- Network Speaker Driver
- Support SIP and UDP Broadcast Protocol
- Build in 20W Power Amplifier to Drive Speaker Directly
- Powered from the IP Network Cable Using PoE+ IEEE 802.3at
- Remote Configuration and Firmware Upgrade by HTTPS
| Product Information | |
| Model | AU-002 |
| Driver Impedance | Lower to 3 ohm speaker totally |
| Average Min. Power | 20 W |
| Microphone | 100Hz-16KHz Single point, SPL-44 ± 2db AT 2 KΩ |
| LED Luminous | 3x LED display status |
| Network | |
| SIP Support | RFC 3261(SIP base standard) |
| Interface | WAN: RJ-45x1, 10/100Mbps Fast Ethernet port |
| Supported Protocols | SIP, IPv4/v6, RIPv2 / OSPF, HTTPS, QoS DSCP, FTP, TFTP, SNMP v2c / v3, SNMP, IGMP, DHCP, SSHv2, PIM- DVMRP, RMON |
| Audio Codec | G.711 a/uLaw, G.726, G.722, G.729, iLBC, L16 |
| Support Function | Auto provision, Audio tone testing, System log |
| Security | Password protection, IP address filter, user access log, authentication |
| VAST 2 Integration (Extension License Required) | |
| Two-way Communication | Supported |
| Automatic Trigger Audio Clips | Supported |
| General | |
| Casing | Plastic |
| Power | PoE+ (Power over Ethernet), IEEE 802.3at |
| Operating Temperature | -35°C ~ 60°C (-31°F ~ 140°F) |
| Dimensions | 110 x 85 x 25 mm |
| Weight | 115 g |
| Certifications | CE, FCC, LVD EN62368-1 |
| Warranty | 24 months |
