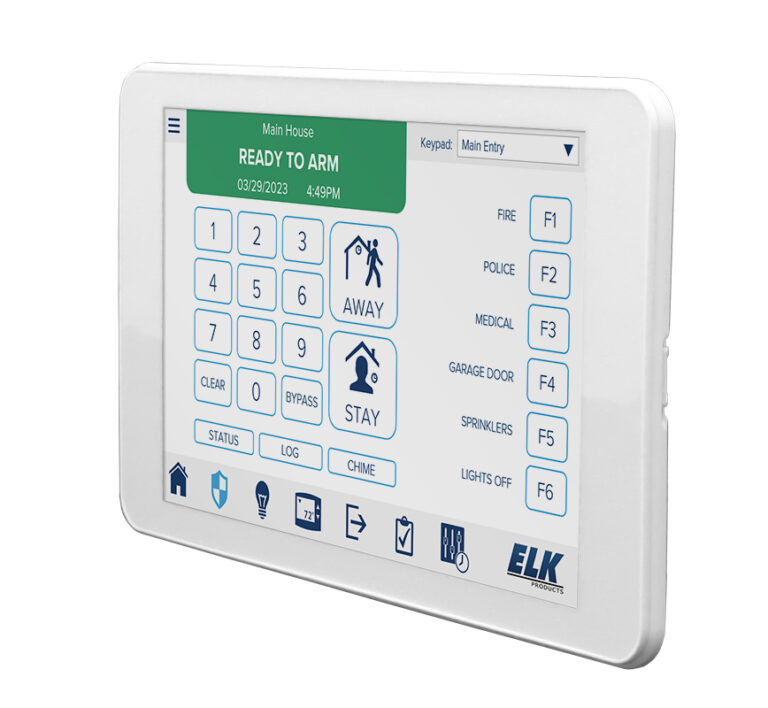

ELK - 7TS - Network Touchscreen for Alarm Engine and M1
Part number:
7TS
Price:
Discover the new ELK-7TS 7” touchscreen for M1 Cross Platform Control. An all-new M1 touchscreen application introduces users to a fresh and modern interface for M1 systems.
Features:
- Compatible with M1 Security & Automation Controls
- Connects to network via Wi-Fi
- Connects to M1 over local network
- Ultra Low Profile screen with slim wall mount plate
- Optional Desk Stand available (ELK-DS47TS)
Whats Included:
- ELK-7TS Touchscreen
- Wall mounting plate
- Mounting hardware
- Wiring harness for 12 V power supply
- Quick Start Instruction Card
| Specification: | |
| Display | 7” HD Display (1024 x 600 Resolution), Responsive capacitive touchscreen, with 5-point multi-touch, G+G Gorilla Glass screen |
| Connectivity | Wi-Fi Connectivity (802.11b/g/n 2.4GHz) |
| Power | 12VDC, 1A (power supply not included, ELK-P1417 recommended) |
| Adapter | Optional POE adapter available |
| Size | 7.59” x 4.56” x 0.56” |
| Max Number of Touchscreens Supported | Connecting via M1XEP = 4, Connecting via C1M1 = 1 |
Name
Description
Size
Downloads
File
Manual
1.4mb
File
Data Sheet
1.4mb
