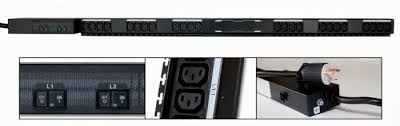

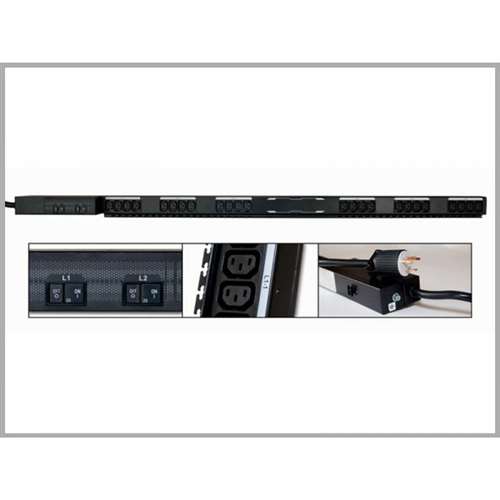

Minuteman - OEPD2430V48DCLT - OE Series Power Distribution Unitspower 24-outlet 30A Vert 48" 208V L630P
Minuteman - OEPD2430V48DCLT - OE Series Power Distribution Unitspower 24-outlet 30A Vert 48" 208V L630P
Minuteman - OEPD2430V48DCLT - OE Series Power Distribution Unitspower 24-outlet 30A Vert 48" 208V L630P
Minuteman - OEPD2430V48DCLT - OE Series Power Distribution Unitspower 24-outlet 30A Vert 48" 208V L630P Minuteman - OEPD2430V48DCLT - OE Series Power Distribution Unitspower 24-outlet 30A Vert 48" 208V L630P

Minuteman - OEPD2430V48DCLT - OE Series Power Distribution Unitspower 24-outlet 30A Vert 48" 208V L630P

Part number:
OEPD2430V48DCLT
Price:
Dealers only
Add to Quote/Project Registration
Description Specifications Downloads

The OEPD2430V48DCLT is a 48" vertical mounting unit which offers 24 outlets

Minuteman Power Technologies' 208V OEPD line of Power Distribution Units offer lengthy power cords, versatile configuration options, and premium features at a lower cost than competitive models. Units also feature a limited lifetime warranty.



Features:

  • 8-foot 4-inch cord standard
  • More Outlets for your Dollar than the Competition
  • High Standards - Unit is Listed with higher UL 60950-1 standards
  • Limited Lifetime Warranty
  • RoHS Compliance
  • 24) IEC320 C13 Front Outlets
  • Dual Output Circuits (20A each)
  • Maximum Input 30 Amps
  • Voltage In/Out 208V/208V
  • Maximum Output 12 Amps per outlet
  • Power Plug Type L6-30P
  • External Ground Lug
  • Power On/Off LED
  • Frequency 50/60Hz
Model NameOEPD2430V48DCLT
Part Number90001141
AC INPUT
Nominal Input Voltage208/240V
Input Circuit Breaker30A
Rated Current24A
Phases1
Cord Plug TypeNEMA L6-30P
Length (m)2.4m (8ft, 4in)
Configuration2 Wire+ground
OUTPUT
Output Voltage200-240Vac,
Based on Input Voltage
Output Phases1
Output Current10A
Sihngle-phase Output Circuits (Banks)2
Total PDU Receptacles24
IEC320-C1324
NEMA5-15/20R----



Circuit Breaker

Qty : 2 pcs
20A / 1pole
UL489 Listed
MECHANICAL REQUIREMENTS
Case Length0U
Dimensions W * H * D (in)1.89" x 49.2" x 1.97/3.54"
Weight (lbs)10.84
Installation BracketsIncluded
ENVIRONMENTAL
Temperature ---Operating0 to 45°C
Temperature ---Storage-20 to 65°C
Humidity ---Operating5-95% RH Non-condensing
Humidity ---Storage5-95% RH Non-condensing
COMPLIANCE
SafetycUL
MISCELLANEOUS
 Has External GND Stud
All metal case

2-On/Off Switches that are also used as Input

Breakers

2-Banks

12-receptacles each IEC 320 C13

Name
Description
Size
Downloads
File
Brochure
0.9mb
