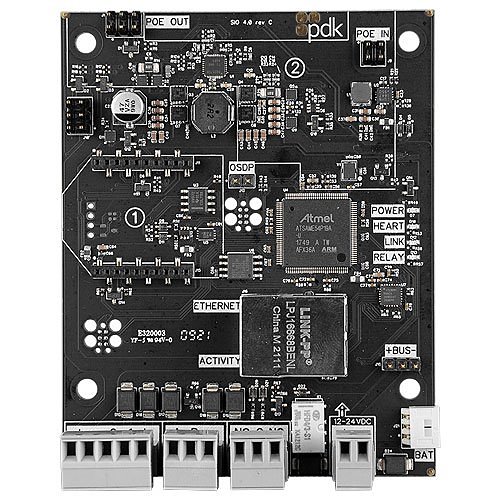

Product Overview
The PDK Red 1 is a single-door access control controller with integrated Ethernet networking, onboard power management, and support for secure credential technologies. Designed for scalable deployments, it supports OSDP communication, mobile credentials, and optional wireless or PoE++ connectivity while providing centralized controller health monitoring.
Key Configuration
- • Door support: 1 door controller
- • Wireless: WiMAC (2.4 GHz/802.15.4) with AES 128-bit encryption; range: 1 mile LoS, 450ft indoor average
- • Wired communication: Ethernet, PoE++ (with optional kit)
- • Power input: 12V-24V DC; included 14VDC 2A (28W) Class 2 wall-wart supply; 35mA idle draw
- • Peripheral output: 2A at 12V total (shared among all ports)

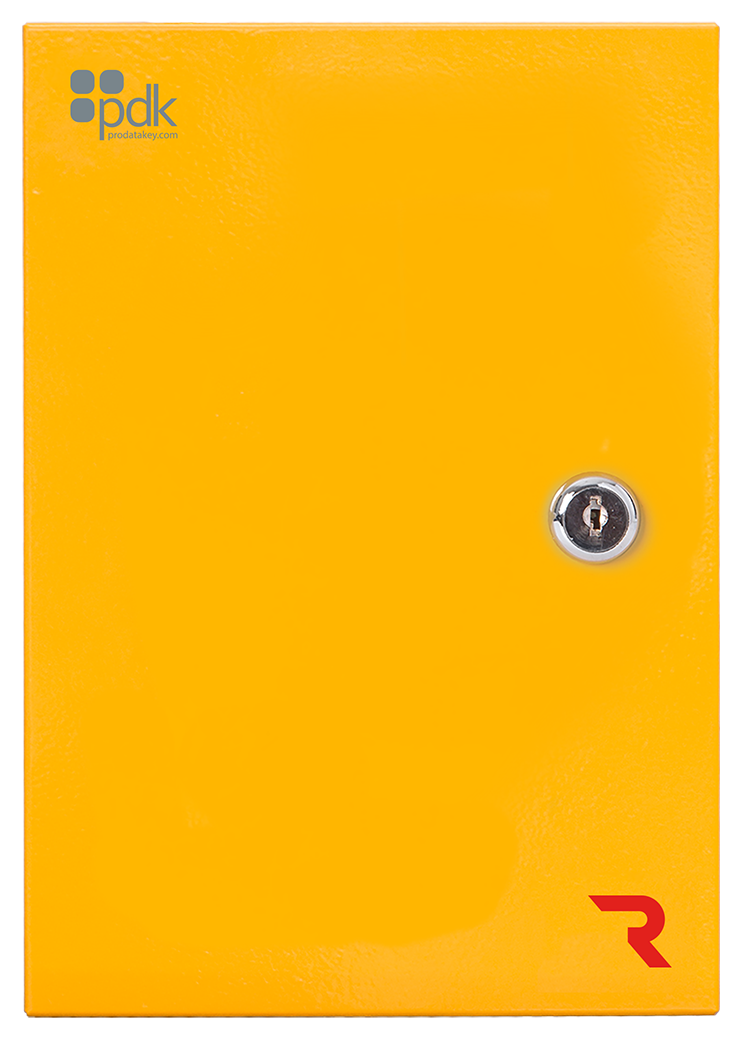

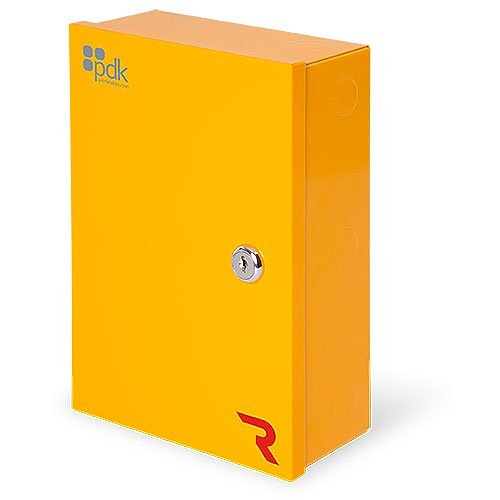

- • Enclosure: Metal lockable security can (indoor use), 7.625" x 10.4375" x 3"
Key Features
Security and reliability are enhanced through encrypted credential communication, OSDP support, and continuous supervision of power, battery, and controller status. The controller is automatically discovered on the network without manual IP configuration and can scale from a standalone door installation to large multi-site access control environments. Additional connectivity options, including WiMAC wireless and PoE++, are available through optional expansion modules.
Technical Context
The integrated power supply simplifies deployment by powering connected devices directly from the controller. Continuous system diagnostics monitor input power, output loads, battery condition, and operational status to identify faults in real time. Secure reader communication is provided through OSDP, while optional WiMAC technology enables encrypted wireless connectivity with extended-range communication capabilities for locations where cabling is impractical.
Installation Notes
The controller is housed in a lockable metal enclosure for indoor use and operates on 12–24V DC power with an included 14VDC adapter. It supports Ethernet self-discovery, optional PoE++ or WiMAC connectivity, removable field-wiring terminals, and operation from -20°C to +60°C. A backup battery is required for UL 294 compliance.
| Connections | |
| Removable Screw-down Terminals | Yes |
| Built-in Power Supply | Yes |
| Industrial-grade 2A Form-C Relay | Yes |
| Reader | Input A, Input B |
| Communication Options | |
| Ethernet | Yes |
| WiMAC Wireless | 2.4 GHz / 802.15.4 |
| PoE++ | Yes |
| Encryption | AES 128bit |
| Wireless Range | 1 Mile LoS, 450ft indoor average |
| Environmental | |
| Temperature | -4°F to +140°F / -20°C to +60°C |
| Humidity | 0 - 95% relative humidity non-condensing |
| Enclosure | |
| Dimensions (W x H x D) | 7.625" x 10.4375" x 3" |
| Type | Metal lockable security can (indoor use only) |
| Compliance | |
| Conforms to UL 294 | Yes |
| Power | |
| Input Voltage | 12V-24V DC |
| Power Supply | 14 VDC 2A 28-watt class 2 wall-wart power supply |
| Operating Amperage | 35mA (Continuous draw when idle) |
| Peripheral Power Output | Total output to peripherals is 2A at 12V when powered with the included 2.5A wall adapter |
| Battery | Not included. A backup battery must be installed to comply with UL 294 |
| Manufacturer's Limited Warranty | |
| Warranty Period | One to five-year warranty against defects in materials and workmanship |
