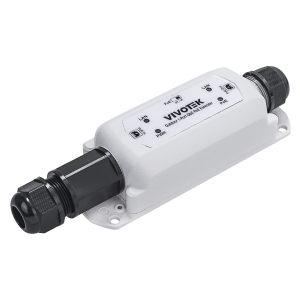

Vivotek - AP-GXC-0150 - Outdoor 1-Port GE PoE Extender, 95W
Part number:
AP-GXC-0150
Price:
OUTDOOR 1-PORT GE POE EXTENDER
Features:
- Gigabit Ethernet
- IEEE 802.3bt Compatible
- Surge Protection 6KV
- Max. 300M Extension
- IP67/IK10
| Model | AP-GXC-0150 |
| Power Specifications | |
| Extension Distance | 2 Units, Daisy-chain Installation Up to 300M Extension (No Local Power Required) |
| PoE Input Power | 802.3 af/at/bt & PoH up to 95W |
| PoE Output Power | 48~55VDC, Max. 68W Passive PoE |
| PD Power Pin Assignment | 1/2 (+), 3/6 (-); 4/5 (+), 7/8 (-) |
| PSE Power Pin Assignment | 1/2 (+), 3/6 (-); 4/5 (+), 7/8 (-) |
| PD Gigabit Ethernet (RJ45) | 1 |
| PSE Gigabit Ethernet (RJ45) | 1 |
| PSE Power On/Off Dip Switch | Supported |
| Surge Protection/per PoE Port | 6KV |
| Networking Specifications | |
| Total Gigabit Ethernet Port | 2 |
| Mac Table | 2K |
