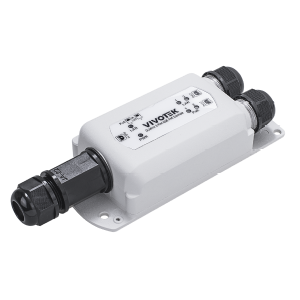

Vivotek - AP-GXC-0250 - Outdoor 2-Port GE PoE Extender, 95W
Part number:
AP-GXC-0250
Price:
Outdoor 1-Port GE PoE Extender, 95W
Features:
- Gigabit Ethernet
- IEEE 802.3bt Compatible
- Surge Protection 6KV
- Max. 300M Extension
- IP67, IK10
| Model | AP-GXC-0250 |
| Power Specifications | |
| Extension Distance | 2 Units, Daisy-chain Installation Up to 300M Extension (No Local Power Required) |
| PoE Input Power | 802.3 af/at/bt & PoH up to 95W |
| PoE Output Power | 48~55VDC, Max. 68W Passive PoE |
| PD Power Pin Assignment | 1/2 (+), 3/6 (-); 4/5 (+), 7/8 (-) |
| PSE Power Pin Assignment | 1/2 (+), 3/6 (-); 4/5 (+), 7/8 (-) |
| PD Gigabit Ethernet (RJ45) | 1 |
| PSE Gigabit Ethernet (RJ45) | 2 |
| PSE Power On/Off Dip Switch | Supported |
| Surge Protection/per PoE Port | 6KV |
| Networking Specifications | |
| Total Gigabit Ethernet Port | 3 |
| Mac Table | 2K |
| Mechanical Specifications | |
| Dimensions | 157(W) x 55.8(H) x 39.75(D) mm |
| Weight | 0.3 kg |
| LED Indicators | Power, LAN, PoE |
| Environmental Specifications | |
| Operating Temperature | -40°C ~ 65°C (-40°F ~ 149°F) |
| Storage Temperature | -40°C ~ 85°C (-40°F ~ 185°F) |
| Operating Humidity | 10% to 90% non-condensing |
| Waterproof | IP67 |
| Vandal proof | IK10 |
| Certifications | |
| EMC | CE,FCC,VCCI,C-Tick |
| Warranty | |
| Warranty | 24 months |
