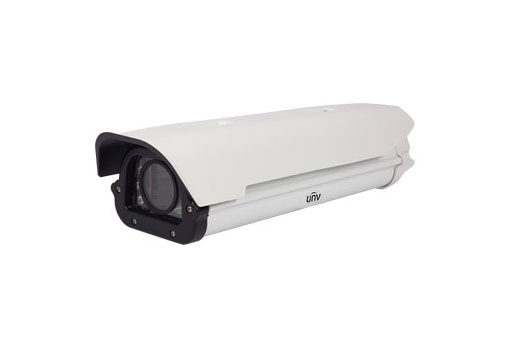

Uniview - HS-217SHB-IR - Outdoor installation Built-in IR LED (-40 ℃~60 ℃)
Part number:
HS-217SHB-IR
Price:
Outdoor installation Built-in IR LED (-40 ℃~60 ℃) - Box Camera
Features:
- Anti-corrosive and ultraviolet-proof material to enhance outdoor durability
- Combined with adjustable sun shade from direct solar radiation
- Build-in temperature controlling
- Integrated infrared lights and support group controls, cooperate with the gun type network camera to monitor the day and night
- Built-in temperature control module, it can automatically control heater and fan's working condition according to ambient temperature
- Heater on with simultaneous fan against foggy glass cover
- Easy and flexible installation with side open structure
- IP66-rated
| Housing | HS-217SHB-IR |
| Application | Outdoor (including sun shade, Heater,Fan) |
| Ingress Protection | IP66 |
| Power supply | AC24V，DC24V |
| Power | Heater：10W，Fan：1.8W，IR LED：18W |
| Operating Condition | –40℃~+60℃(-40°F ~ 140°F) Humidity ≤ 100% RH(non-condensing) |
| Working conditions of temperature control module | The heating on：≥5±5℃，The fan opens when the heat is turned on Open the fan：≤40±5℃ |
| Dimensions (L × W × H) | Outside: 462mm×161mm×112mm(18.2” x 6.3”x 4.4”) Inside: 300×105×78.5mm (11.8”×4.1”×3.1”) |
| Weight | 1.65KG(3.63lb) |
| Material | Shell: aluminum alloy Sun shade:plastic Front and rear lids: plastic |
Name
Description
Size
Downloads
File
Installation Guide
0.9mb
File
Data Sheet
0.9mb
