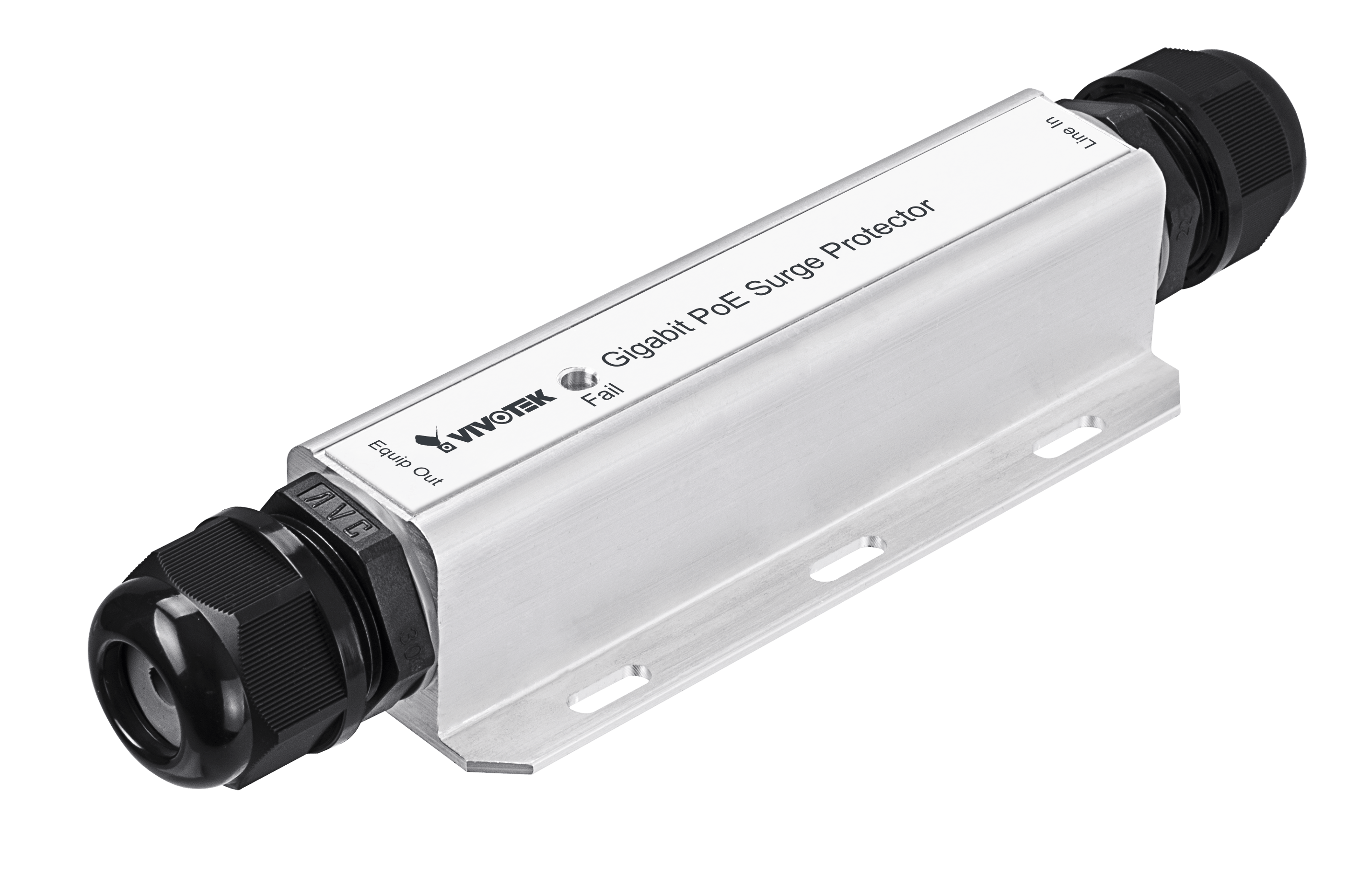

Vivotek - AP-PSP-050 - Outdoor PoE Surge Protector, 16KV surge, Operating:-40°~85°C
Part number:
AP-PSP-050
Price:
Outdoor PoE Surge Protector, 16KV surge, Operating temperature -40°~85°C.
Features:
- Number of Ports: 2
- Pass Through Data Rates: 10/100/1000 Mbps
- Max Discharge Current (8/20us, 1KA per Line): 8KA, 16KV
- Maximum Operation DC Voltage: 60VDC
- Maximum Operation DC Current: 1A for 2 pair, 2A for 4 pair, Max. 95W
- Common Mode Protection Level (10/700us): 20KV
- Differential Mode Protection Level (10/700us): 4KV
- Clamping Voltage (Line to GND): 600V
- Clamping Voltage (Line to Line): 20V
- Insertion Loss @ 10MHz/100MHz: 1 dB
- Return Loss @ 10MHz/100MHz: -20 dB
- Response Time: 5ns
| Technical Specification | |
| Model | AP-PSP-050 |
| Number of Ports | 2 |
| Pass Through Data Rates | 10/100/1000 Mbps |
| Max Discharge Current (8/20us, 1KA per Line) | 8KA, 16KV |
| Maximum Operation DC Voltage | 60VDC |
| Maximum Operation DC Current | 1A for 2 pair, 2A for 4 pair, Max. 95W |
| Common Mode Protection Level (10/700us) | 20KV |
| Differential Mode Protection Level (10/700us) | 4KV |
| Clamping Voltage (Line to GND) | 600V |
| Clamping Voltage (Line to Line) | 20V |
| Insertion Loss @ 10MHz/100MHz | 1 dB |
| Return Loss @ 10MHz/100MHz | -20 dB |
| Response Time | 5ns |
Mechanical Specifications | |
| Dimensions | 186.2 (L) x 50 (W) x 32 (H) mm |
| Weight | 0.27 kg |
| Connectors | PG16(RJ45) x2 |
Environmental Specifications | |
| MTBF | 1,132,887 hours |
| Waterproof Rating | IP67 |
| Operating Temperature | -40°C ~ 85°C (-40°F ~ 185°F) |
| Storage Temperature | -40°C ~ 85°C (-40°F ~ 185°F) |
| Operating Humidity | 5 ~ 95% (non-condensing) |
Certifications | |
| EMC | CE, FCC, VCCI, C-Tick |
| Safety | EN60950-1, IEC60950-1 |
| Surge | ITU-T K.21, IEC-61643-21, IEC-61000-4-5, TIA-968-A (FCC Part68) |
General | |
| Warranty | Warranty |
| Note | *The warranty does not cover damage resulting from lightning strikes. |
