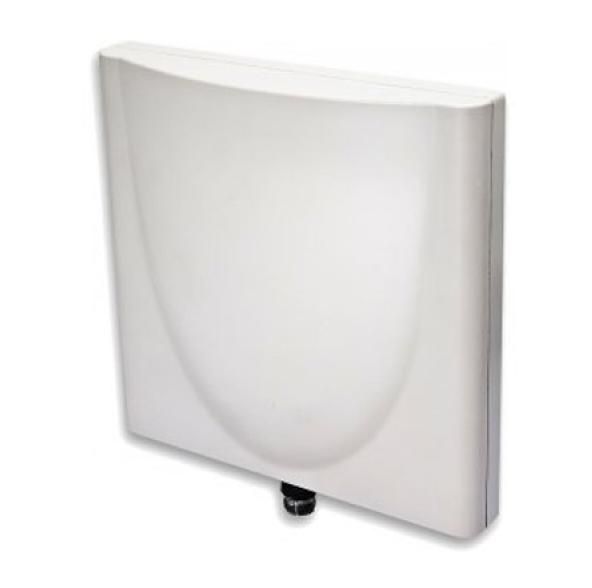

Vivotek - SAA04 - Panel Antenna _ 5Km
Part number:
SAA04
Price:
Panel Antenna _ 5Km
Features:
- Works from 5 kilometers
- Supported models: + IOP-RF CFD-400150NMR + N600AG (Need to buy at least a pair)
- Weight: 825 g
- Dimensions: 200mm x 218mm x 50mm
- Pole Mount
- Part Number: 900007600Z
- Temerature Range: - 40°C to +80°C
| Model | Product Description |
| 900007600Z | Panel Antenna SAA04 |
| Frequency range | 4900 MHz - 5875 MHz |
| Gain | 17~18 dBi |
| VSWR | 2.0: 1 Max. |
| Polarization | Linear, Vertical |
| HPBW / horizontal | 17.5~23 |
| HPBW / vertical | 16~19 |
| Sidelobe level | Co-pol. -11.5 dB (max.) Cross-pol. -18 dB (max.) |
| Front-to-back ratio | -21 dB (max.) |
| Isolation | N/A |
| Power handling | 5 W (cw) |
| Impedance | 50 Ohms |
| Cable | N/A |
| Connector | N female |
| Lightning protection | DC ground |
| Survival wind speed | 216 km/hr |
| Temperature | - 40°C to +80°C |
| Humidity | 95% @ 55ﾟC |
| Radome color | Gray-white |
| Radome material | ABS, UV Resistant |
| Weight | 825 g |
| Dimensions | 200 x 218 x 50 mm |
| Waterproof | IP-X5 |
| Mount kit | Pole Mount |
