Simply 45 - S45-1501 - Pass Through Blue Tint, Cat5e UTP, 50pc Clamshell

Product Overview

The Simply45 S45-1501 is a Cat5e UTP pass-through RJ45 plug featuring a single-piece design for easy straight-line wire insertion. Its 3-prong pins with 50µ 24ct gold plating ensure superior conductivity for 24 AWG solid or 28-26 AWG stranded cables. UL Listed and PoE/PoH compatible, this UL94 V0 fire-rated connector comes in a 50-piece blue-tinted clamshell with a lifetime warranty.

Key Configuration

• • Category: Cat5e; connector style: pass-through; cable type: UTP
• • AWG: 24 AWG solid, 28-26 AWG stranded; conductor range: 0.95–1.05 mm (0.037″–0.041″)
• • Max cable OD: 6.5 mm (0.255″)
• • Contact design: 3-prong with 50µ 24ct gold plating over 100µ nickel

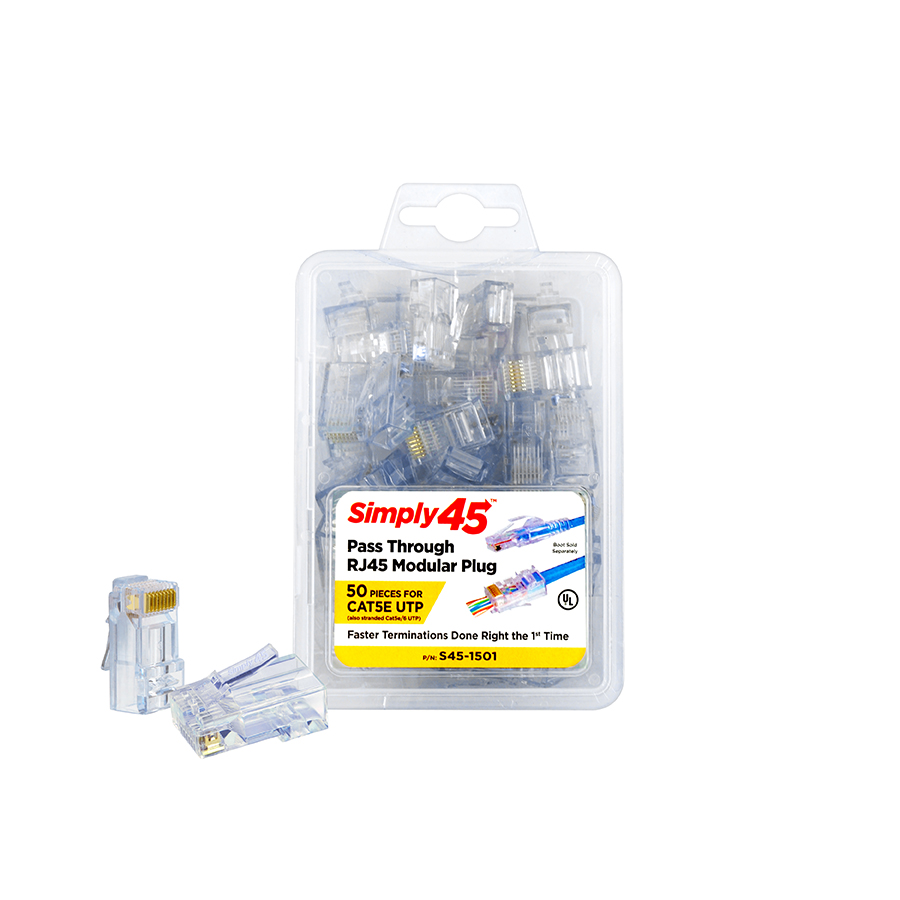

• • Quantity: 50 pieces; packaging: resealable clamshell; color: blue tint

Key Features

This Cat5e-compliant pass-through RJ45 plug features a single-piece design with straight-line wire insertion and a 3-prong pin system for enhanced contact and retention. It is UL Listed, UL94 V0 fire-rated, and PoE/PoH compatible to ensure low resistance and reduced heat buildup. HDBaseT is approved and compliant with TAA, P65, and FCC standards, and it supports a wide range of cable jackets, including CMP Plenum, CMR, and LSZH. The design meets ANSI/TIA 568.2-D and ISO/IEC 11801 Class D performance specifications.

Technical Context

Constructed with UL94 V0 polycarbonate and 50µ 24ct gold-plated phosphor bronze contacts, this plug ensures high durability and conductivity. Its patented internal design improves crosstalk performance by minimizing untwisted wire lengths. The unit features 100µ nickel base plating and is licensed under multiple technical patents for superior electrical reliability.

Installation Notes

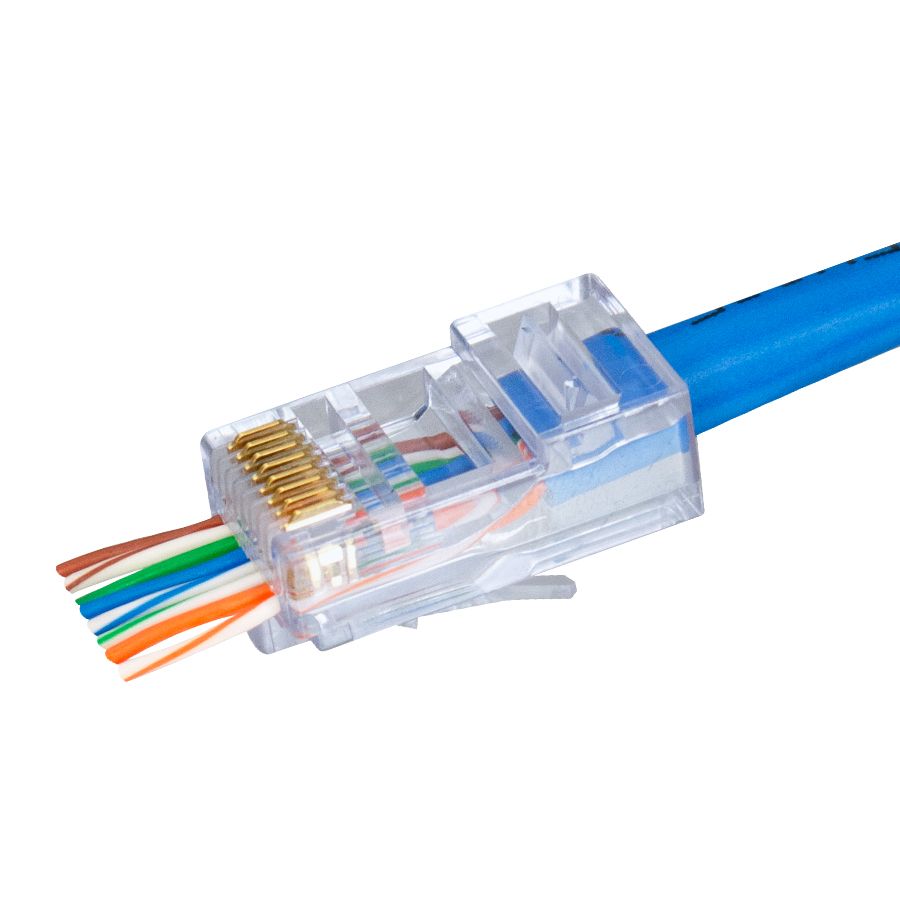

The pass-through design allows wires to exit the front for visual verification before crimping, ensuring accuracy. It supports Cat5e UTP 24 AWG solid and 28-26 AWG stranded conductors ranging from 0.95–1.05 mm. For cable diameters exceeding 6.5 mm or larger conductors, the S45-1600 or S45-1700 series is recommended.
