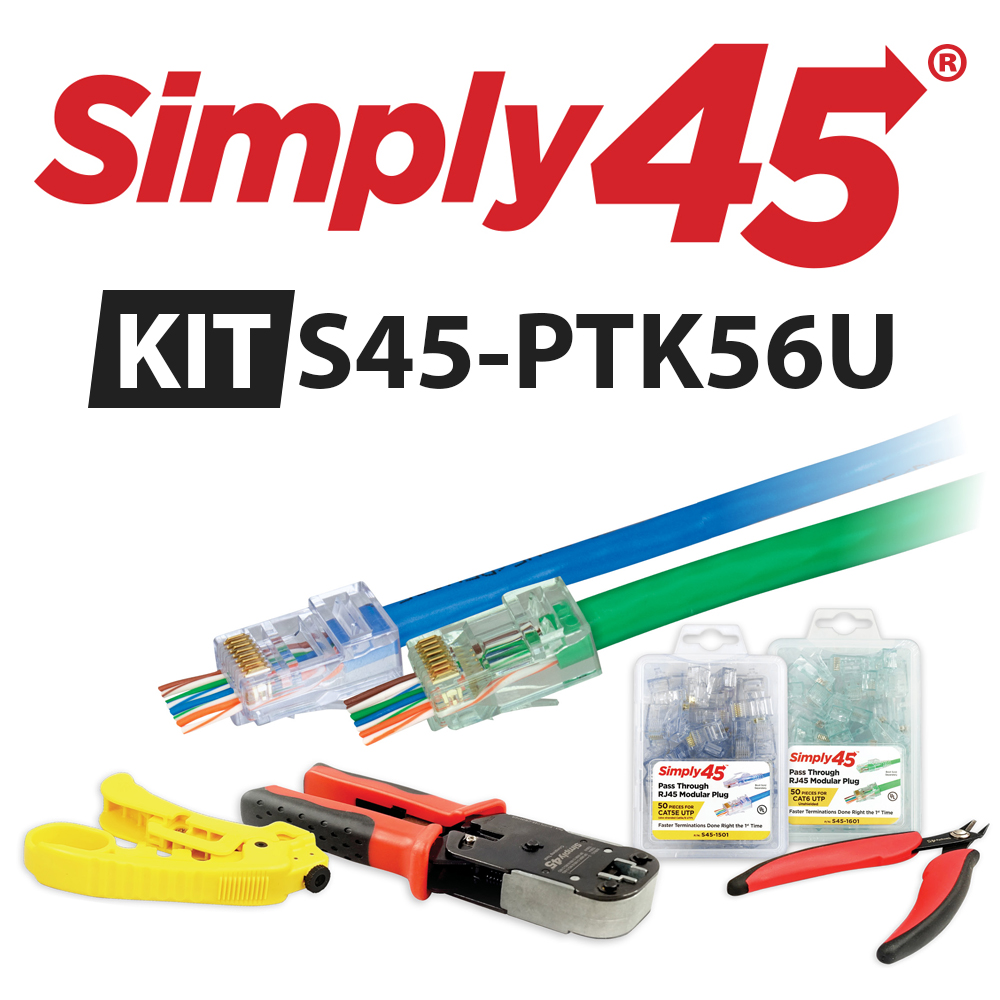

Simply 45 - S45-PTK56U - Pass Through Series Cat5e/6 UTP Starter Kit, 1ea (S45-1501, S45-1601, S45-C100, S45-801 & S45-S01YL) - Boxed
Part number:
S45-PTK56U
Price:
Model Number: S45-PTK56U
Pass-Through Series – Cat5/6 Pass-Through UTP Starter Kit
| Category Type | Cat5e & Cat6 |
| Connector Style | Pass-Through |
| Wire Alignment | Straigh Insert |
| Cable Type | UTP |
| AWG | 23AWG Solid |
| Conductor Range | 0.95 – 1.05mm (0.037″ – 0.041″) |
| Max Cable OD | 7.0mm (0.276″) |
| Plug Material | Polycarbonate |
| Material Rating | UL94 V0 Commercial (Plenum, LSZH) Rated |
| Plug Color | Blue Tint Cat5e & Green Tint Cat6 |
| Contact Design | 3 Prong Style |
| Contact Material | Phosphor Bronze |
| Base Contact Plating | 100µ of nickel plating |
| Surface Contact Plating | 50µ 24ct Gold |
| UL & cUL Listed | E520614 |
| Connector Quantity | 50 pieces Cat5e, 50 pieces Cat6 |
| Compliant | TAA, P65 |
| HDBaseT | Approved |
| Packaging Type | Boxed |
| Kit Contents | |
| Crimper | S45-C100 |
| Stripper | S45-S01YL |
| Flush Cutter | S45-801 |
| Connectors | S45-1501 |
| Connectors | S45-1601 |
Name
Description
Size
Downloads
File
Connector Selector Guide
0.2mb
