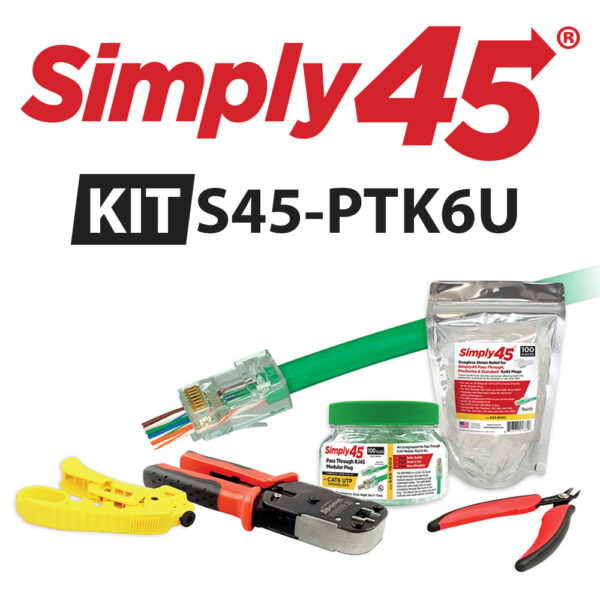

Simply 45 - S45-PTK6U - Pass Through Series Cat6 UTP Starter Kit, 1ea (S45-1600, S45-C100, S45-801, S45-S01YL, S45-B002) - Boxed
Part number:
S45-PTK6U
Price:
Model Number: S45-PTK6U
Pass-Through Series – Cat5e/6 Pass Through UTP Starter Kit
| Category Type | Cat6 |
| Connector Style | Pass Through |
| Wire Alignment | Straigh Insert |
| Cable Type | UTP |
| AWG | 23AWG Solid |
| Conductor Range | 0.95 – 1.05mm (0.037″ – 0.041″) |
| Max Cable OD | 7.0mm (0.276″) |
| Plug Material | Polycarbonate |
| Material Rating | UL94 V0 Commercial (Plenum, LSZH) Rated |
| Plug Color | Green Tint |
| Contact Design | 3 Prong Style |
| Contact Material | Phosphor Bronze |
| Base Contact Plating | 100µ of nickel plating |
| Surface Contact Plating | 50µ 24ct Gold |
| UL & cUL Listed | E520614 |
| Connector Quantity | 100 pieces |
| Compliant | TAA, P65 |
| HDBaseT | Approved |
| Packaging Type | Boxed |
| Kit Contents | |
| Crimper | S45-C100 |
| Stripper | S45-S01YL |
| Flush Cutter | S45-801 |
| Connectors | S45-1600 |
| Strain Relief Boots | S45-B002 |
Name
Description
Size
Downloads
File
Connector Selector Guide
0.2mb
