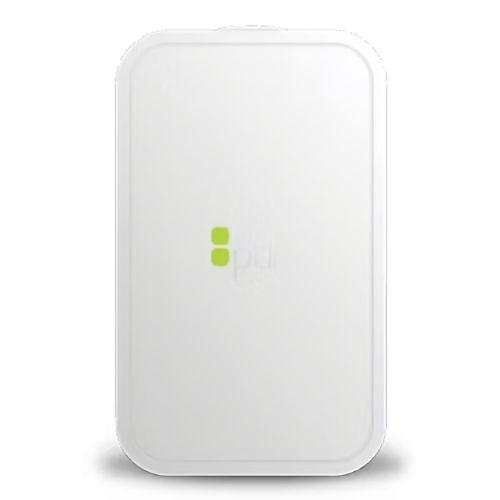

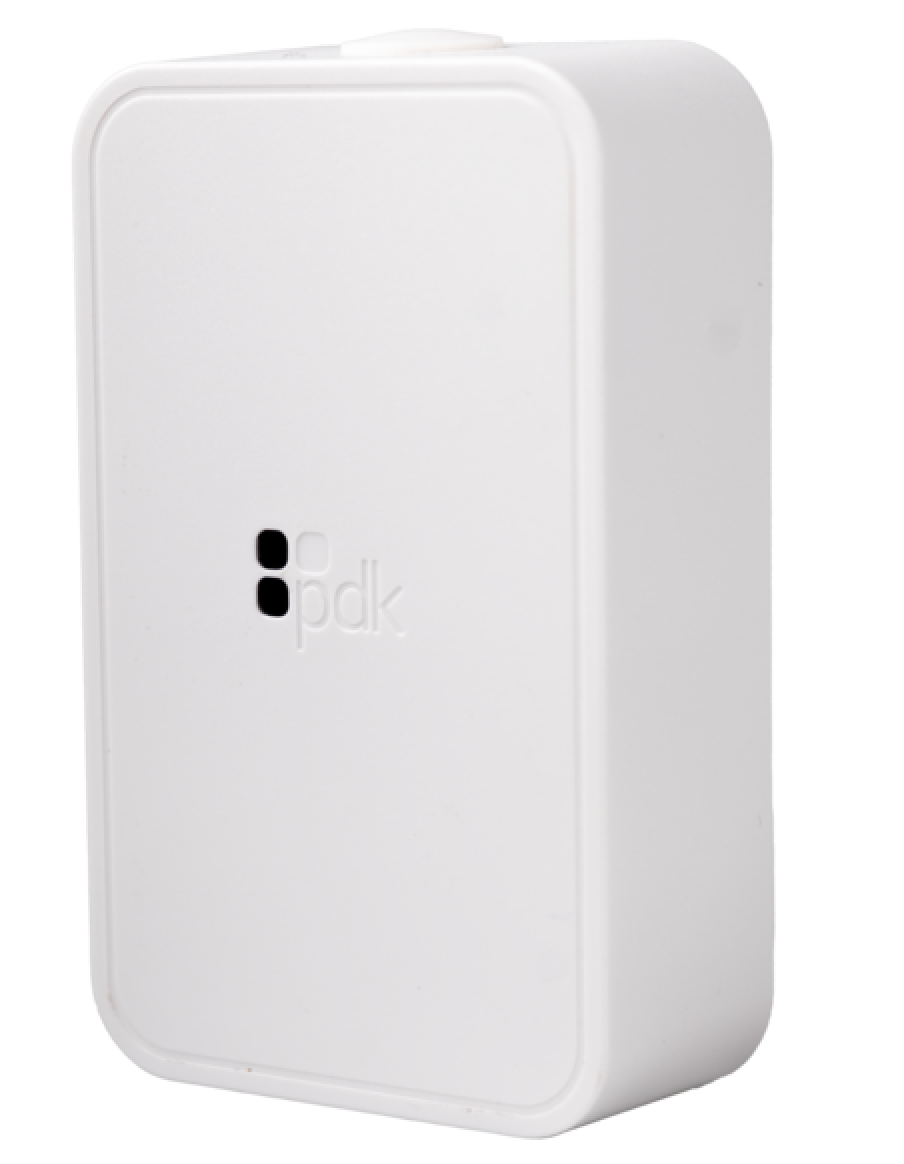

The PDK Red Hub is a secure bridge that connects up to 16 wireless Red Locksets to the PDK.io platform through a single central point. It ensures end-to-end security using AES 128-bit encryption for both Ethernet cloud connectivity and Bluetooth Low Energy lock communication. Featuring a sleek, low-profile design, this indoor hub is built for quick setup and reliable performance.
Key Configuration
- • Lock capacity: up to 16 wireless Red Locksets per hub
- • Communication: Ethernet 10/100 Mbs (Hub to Cloud Node); Bluetooth Low Energy 2.4GHz (Hub to Lock)
- • Encryption: end-to-end AES 128-bit
- • Operating temperature: -20°C to +45°C (-4°F to 113°F); humidity: 10–90% RH non-condensing
- • Dimensions: 4" × 2.5" × 2"; indoor use only
| Communication Options | |
| Ethernet | 10/100 Mbs (Hub to Cloud Node) |
| Bluetooth Low Energy | 2.4GHz (Hub to Lock) |
| Encryption | End-to-end AES 128-bit encryption |
| Environmental | |
| Usage | Indoor Use Only |
| Temperature | -20C - +45C |
| Humidity | 10% - 90% relative humidity non-condensing |
| Enclosure | |
| Dimensions | 4" x 2.5" x 2" |
| Compliance | |
| Compliance | Conforms to FCC Part 15 |
