Hanwha - SBP-302CM - Telescopic pendant mount Accessory, require a mounting plate SBP-302CMA
Hanwha - SBP-302CM - Telescopic pendant mount Accessory, require a mounting plate SBP-302CMA
Hanwha - SBP-302CM - Telescopic pendant mount Accessory, require a mounting plate SBP-302CMA

Hanwha - SBP-302CM - Telescopic pendant mount Accessory, require a mounting plate SBP-302CMA

Part number:
SBP-302CM
Price:
Dealers only
Add to Quote/Project Registration
Description Specifications Downloads

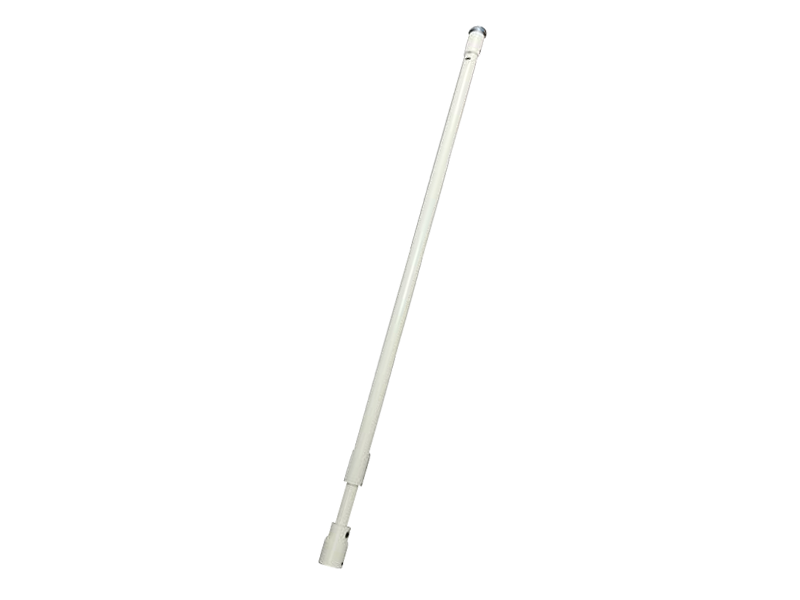

Ivory Telescopic pendant mount Accessory, require a mounting plate SBP-302CMA.

MaterialsAluminum and Steel
DimensionsØ1.87" (47.5mm)
Minimum length: 4.5ft (1,372mm)
Maximum length: 8.0ft (2,440mm)
Pipe Thread1.5" NPT male (top) / 1.5" NPT female (bottom)
ColorIvory
Weight7.56lb (3.43kg)
Max Load30lb (13.6kg)
Optional AccessoriesSBP-302CMA single joist ceiling mount adapter,
SBP-302CMB Backbox for pendant and ceiling mount
Cable RoutingCable hole
Applicable MountSBP-300HM1/301HM2/301HM3/301HM4/300HM5/300HM6/300HM7/300HM8/
SBP-301HF/300HF/302HF
SBP-3701H
122HM/317HM/329HM/168HM/201HM
Applicable Camera

PNP-9200RH
XNP-6370RH

SNP-6320RH/6320H/6321H/6230RH/6201H/6200RH/6200H/L6233RH/L6233H/
5430H/5321H/5320H/5300H/L5233H/3430H/3371TH/3371H/3120VH

HCP-6320H

SCP-3430H/3371H/3250H/3120VH/2430H/2373H/2371H/2370RH/2273H/

2271H/2251H/2250H

Name
Description
Size
Downloads
File
Specification
0.2mb
File
Hanwha Techwin America - NDAA Compliant Product List
0.4mb
File
CAD
1.7mb
File
Manual
0.8mb
